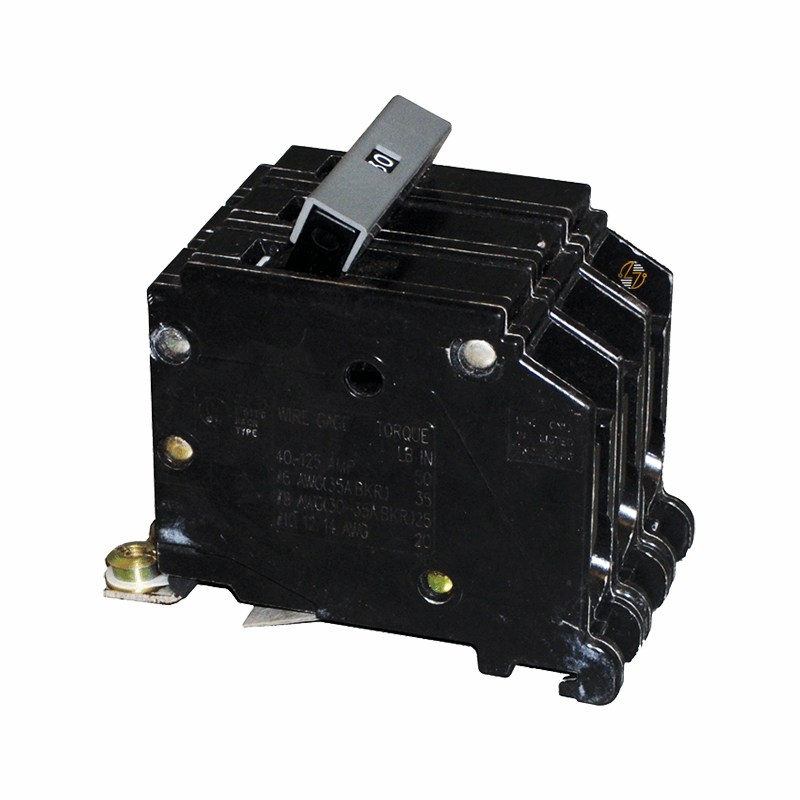

CHB330 - 30Amp Circuit Breaker

CHB330 - 30Amp Circuit Breaker

The Eaton CHB330 is a 30 Amp, three-pole circuit breaker designed for Eaton CH Loadcenters, and it’s typically used when you need a direct replacement that matches an existing breaker in the panel.

In most cases, this breaker shows up in residential and light commercial panels handling smaller three-pole 240V circuits. It’s usually used in replacement work—matching what’s already installed so the system keeps running the way it was originally designed, without changes to wiring or layout.

Installation is straightforward in compatible Eaton CH Loadcenters. The plug-in design lets the breaker seat directly into the panel without modification, which helps keep your maintenance work simple when working inside an existing system. Inside, the CHB330 uses a thermal magnetic trip system, which responds to both overload and short-circuit conditions. It’s rated at 10 kAIC, which fits standard fault levels found in typical residential and light commercial CH installations. With support for #14–8 AWG conductors, it’s suited for smaller branch circuits that still require a three-pole configuration.

At its core, the CHB330 is a direct replacement breaker for Eaton CH Loadcenters. It’s meant to keep existing systems consistent and operating as originally designed, without changing the panel layout or creating compatibility issues.

Key Features and Benefits

• 30 Amp, 3-pole breaker for Eaton CH Loadcenters
• Designed for 240V three-pole circuits
• Plug-in installation for compatible CH panels
• Thermal magnetic protection for overloads and short circuits
• 10 kAIC interrupt rating for standard fault conditions
• Compatible with #14–8 AWG conductors
• Three-pole switching for simultaneous disconnect
• Keeps original CH panel layout unchanged
• Common in residential and light commercial systems
• Direct replacement for existing CH breakers

Technical Specifications

• Catalog Number: CHB330

• Product Type: Thermal magnetic circuit breaker

• Type: CHB

• Amperage Rating: 30 Amps

• Voltage Rating: 240V AC

• Number of Poles: 3

• Interrupt Rating: 10 kAIC

• Wire Size: #14–8 AWG

• Mounting Style: Plug-in (Eaton CH Loadcenters)

• Dimensions: 6.1 in D x 2.1 in H x 3.7 in W

• Weight: 0.95 lb

Material Compliance and Certifications

• The Eaton CHB330 is UL 489 listed, meeting standard safety requirements for branch circuit protection. It is intended for installation in Eaton CH Loadcenters and should be installed by a qualified electrician following applicable electrical codes and safety requirements.

Where It Works Best

• Eaton CH Loadcenters
• Residential electrical panels
• Light commercial electrical systems
• Three-pole 240V branch circuits
• Replacement of existing CH 30A breakers
• Maintenance work in installed CH systems
• Circuits requiring all poles to trip together
• Situations where matching existing panel layout matters
