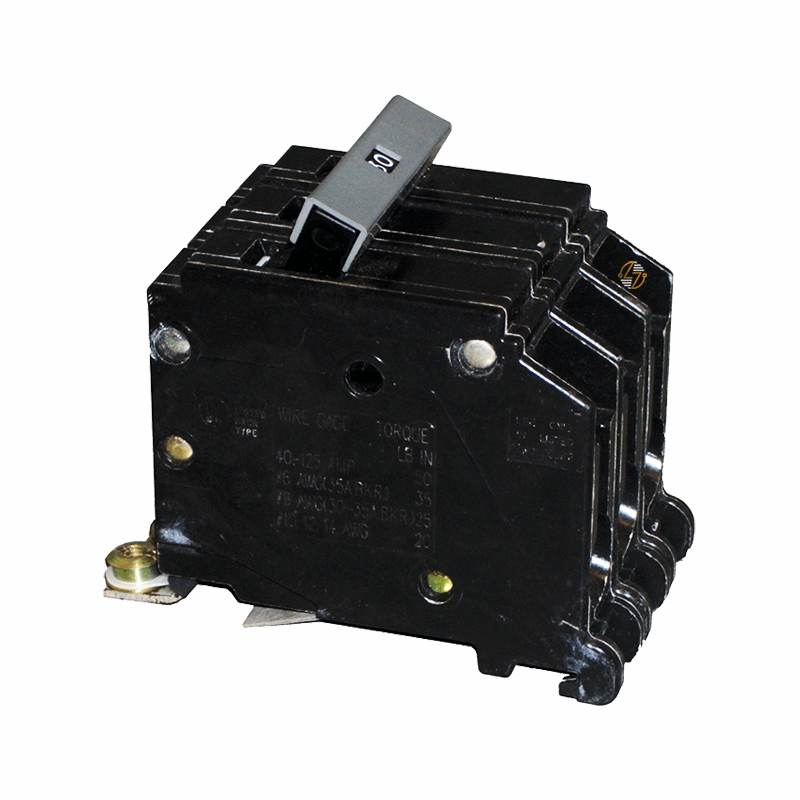

CHB315 - 15Amp Circuit Breaker

CHB315 - 15Amp Circuit Breaker

The Eaton CHB315 is a 15 Amp, three-pole circuit breaker designed for Eaton CH Loadcenters, and it’s typically used when you need a direct replacement that matches an existing panel setup. Even though it’s a lower amp rating, it still serves an important role in 240V three-pole circuits, where all three conductors need to disconnect together to keep the system operating the way it was originally designed.

In real-world use, this breaker usually shows up in residential and light commercial panels where smaller three-pole loads are part of the system. Most of the time, it’s used for straightforward replacement work—matching what’s already installed so the panel stays consistent and nothing in the layout has to change. Installation is simple in compatible Eaton CH Loadcenters. The plug-in design allows the breaker to seat directly into the panel without modification, which helps keep your replacement work quick and predictable when working inside an existing CH system.

At its core, the CHB315 is a direct replacement breaker for Eaton CH Loadcenters. It’s meant to keep existing systems consistent and operating as originally configured, without changing the panel layout or creating compatibility issues.

Key Features and Benefits

• 15 Amp, 3-pole breaker for Eaton CH Loadcenters
• Designed for 240V three-pole circuits
• Plug-in installation for compatible CH panels
• Thermal magnetic protection for overloads and short circuits
• 10 kAIC interrupt rating for standard fault conditions
• Compatible with #14–8 AWG conductors
• Three-pole switching for simultaneous disconnect
• Keeps original CH panel layout unchanged
• Common in residential and light commercial systems
• Direct replacement for existing CH breakers

Technical Specifications

• Catalog Number: CHB315

• Product Type: Thermal magnetic circuit breaker

• Type: CHB

• Amperage Rating: 15 Amps

• Voltage Rating: 240V AC

• Number of Poles: 3

• Interrupt Rating: 10 kAIC

• Wire Size: #14–8 AWG

• Mounting Style: Plug-in (Eaton CH Loadcenters)

• Dimensions: 5.8 in D x 2.1 in H x 3.6 in W

• Weight: 0.85 lb

Material Compliance and Certifications

• The Eaton CHB315 is UL 489 listed, meeting standard safety requirements for branch circuit protection. It is intended for use in Eaton CH Loadcenters and should be installed by a qualified electrician in accordance with applicable electrical codes and safety practices.

Where It Works Best

• Eaton CH Loadcenters and CH panelboards
• 240V three-pole branch circuits
• Residential and light commercial electrical systems
• Replacement of existing CH 15A three-pole breakers
• Maintenance work in installed CH systems
• Circuits requiring all poles to trip together
• Situations where matching existing panel layout matters
• Standard protection in established CH installations
