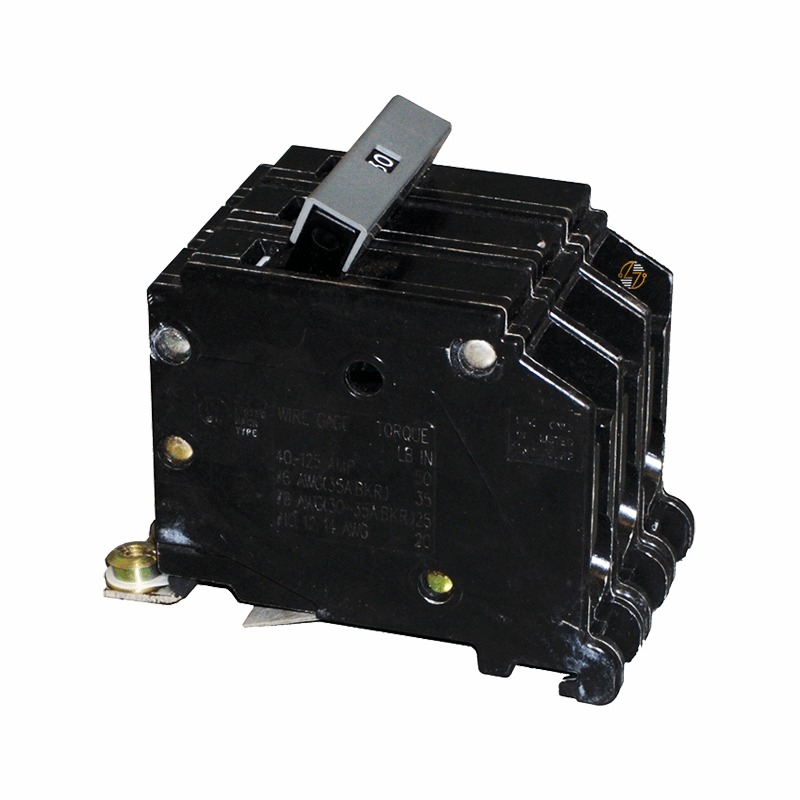

CHB3100 - 100Amp Circuit Breaker

CHB3100 - 100Amp Circuit Breaker

If you’re working on an Eaton CH Loadcenter and need a dependable 3-pole breaker replacement, the Eaton CHB3100 is built to fit right into that role without complications. Rated at 100 amps and 240 volts, this thermal magnetic circuit breaker is designed to protect electrical circuits from overloads and short circuits while maintaining proper coordination across all three poles. It’s commonly used in systems where a three-phase or multi-wire setup needs all poles to disconnect together.

Whether you're replacing an existing unit or maintaining an older system, the CHB3100 helps keep things operating within the original design intent of the panel.

Inside, the thermal magnetic mechanism does the heavy lifting—responding to long-term overload conditions with thermal protection and reacting quickly to short-circuit events through magnetic trip action. That balance makes it a practical choice for protecting wiring and connected equipment in everyday electrical distribution setups.

Key Features and Benefits

• 100 Amp, 3-pole breaker designed for coordinated switching across all poles
• Built for Eaton CH Loadcenters for proper fit and function
• Thermal magnetic trip design for overload and short-circuit protection
• 240V AC rating suitable for a range of distribution applications
• 10 kAIC interrupt rating for rated fault protection performance
• Accepts #4–1/0 AWG conductors for installation flexibility
• Plug-in style design for compatible CH panelboards
• Commonly used for replacement and maintenance in existing systems
• Helps maintain original panel configuration without redesign

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: CHB3100

• Product Type: Thermal Magnetic Circuit Breaker

• Amperage Rating: 100A

• Voltage Rating: 240V AC

• Number of Poles: 3

• Interrupt Rating: 10 kAIC

• Wire Range: #4–1/0 AWG

• Mounting Type: Plug-in

• Compatible With: Eaton CH Loadcenters

• Dimensions: 5.9" D x 2.2" H x 3.8" W

• Weight: 0.9 lb

• Warranty: Limited Lifetime

Material Compliance and Certifications

• UL 489 Listed
• Built to meet applicable safety and electrical standards for molded case circuit breakers
• Intended for use in approved CH Loadcenter installations

Where It Works Best

The CHB3100 is typically used in Eaton CH panel environments where a 3-pole, 100-amp breaker is required. You’ll often find it in residential, light commercial, and general distribution panels where multi-pole circuits need coordinated disconnect.
