CHB220 - 20 Amp Circuit Breaker

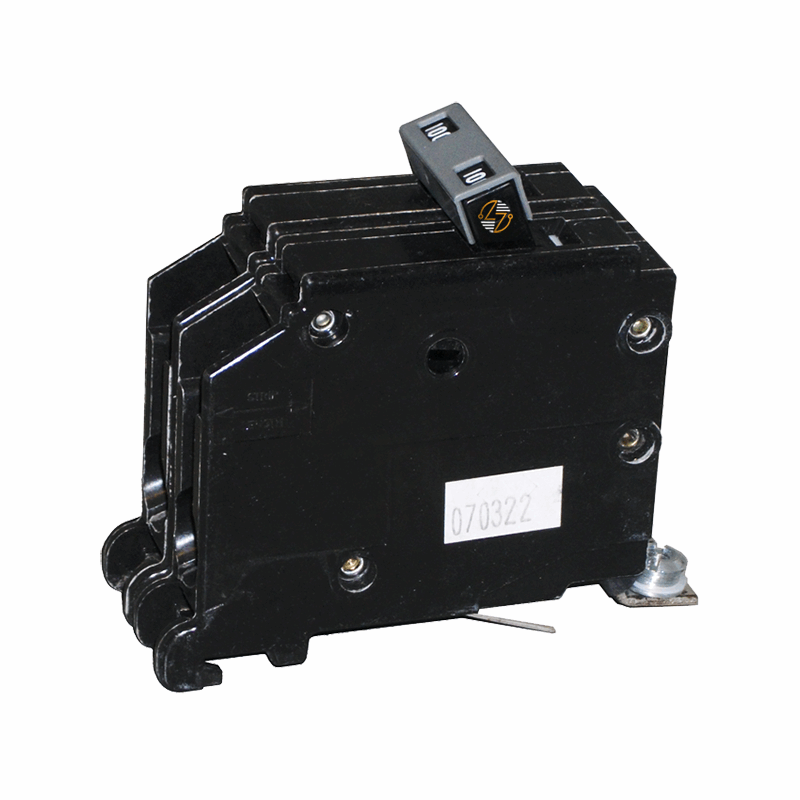

If you’re maintaining a panel that uses the CHB frame style, the CHB220 circuit breaker is designed to match those original specifications. This is a 2-pole, 20-amp bolt-on breaker rated at 120/240VAC with a 10kA interrupting capacity. It installs directly onto the panel bus with a bolted connection, helping ensure a firm and stable fit inside compatible CHB panelboards.

The CHB220 is typically used to protect branch circuits serving lighting, outlets, and similar loads in commercial or light industrial settings. When an existing breaker needs to be replaced, matching the amperage, voltage rating, interrupting capacity, and mounting style is critical. This model is built to last and intended to provide the same form, fit, and function as the original device in CHB systems.

Key Features and Benefits

• 20 Amp Rating: Designed for branch circuits requiring 20A protection.
• 2-Pole Design: Suitable for 120/240VAC applications.
• 10kA @ 120/240VAC: Rated to interrupt up to 10,000 amps of fault current within its specified capacity.
• Bolt-On Mounting: Secures directly to the bus bar for proper mechanical connection.
• CHB Frame Type: Compatible with panelboards built for CHB series breakers.
• Form, Fit, Function Match: Intended as a direct replacement in systems using the same specifications.

Technical Specifications

• Part Number: CHB220

• Amperage: 20A

• Poles: 2

• Voltage: 120/240VAC

• Interrupting Rating: 10k A.I.C.

• Frame Type: CHB

• Mounting Style: Bolt-On

• Height: 3.0 inches

• Approximate Shipping Weight: 1.5 lbs


Material Compliance and Certifications

• Industry Standards: The CHB220 is manufactured to meet applicable industry standards for molded case circuit breakers.
• Installation Requirements: Installation should follow National Electrical Code (NEC) requirements and local regulations. Always confirm compatibility with your specific panelboard before installation.


Where It Works Best

• Existing CHB panelboards in commercial buildings
• Office and retail electrical distribution systems
• Light industrial facilities using 120/240VAC circuits
• Maintenance and repair projects requiring a matching CHB bolt-on breaker
