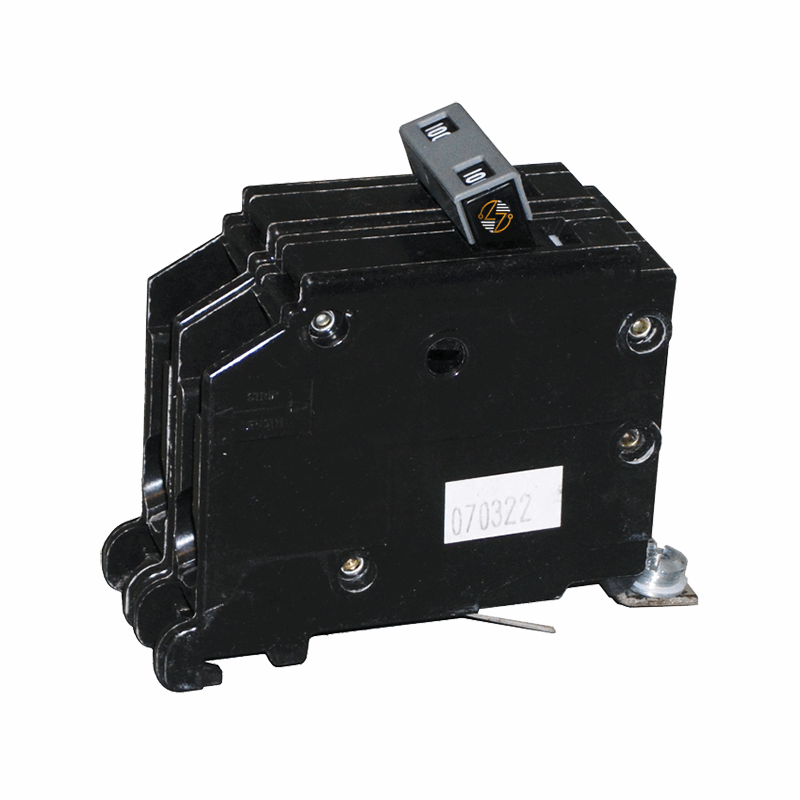

CHB2100H4 - 100Amp Circuit Breaker

CHB2100H4 - 100 Amp Circuit Breaker

The CHB2100H4 is a 2-pole, 100 amp bolt-on circuit breaker designed for use in 120/240VAC electrical systems. Built on the CHB frame, this breaker is intended for proper form, fit, and function in compatible panelboards and distribution equipment. It provides thermal-magnetic overcurrent protection to help safeguard wiring and connected loads from overloads and short circuits. With a 10kA A.I.C. rating at 120/240VAC, it is suitable for applications where available fault current does not exceed its interrupting capacity. The bolt-on design allows for a secure connection to the bus bar, helping maintain a stable installation in commercial and industrial settings. Like other breakers in this series, it’s built to last and designed to support continued service in existing systems.

Key Features and Benefits

• 100 Amp rating: For branch circuit or feeder protection
• 2-pole design: For use on 120/240VAC systems
• 10kA interrupting capacity: At 120/240VAC
• Bolt-on mounting: For a firm mechanical and electrical connection
• CHB frame compatibility: For correct installation in designated equipment
• Thermal-magnetic trip unit: For standard overload and short-circuit protection


Technical Specifications

• Part Number: CHB2100H4

• Frame Type: CHB

• Poles: 2

• Amperage: 100A

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Bolt-On

• Ship Weight: 1.5 lbs

• Height: 3.0 inches


Material Compliance and Certifications

• This molded case circuit breaker is manufactured to meet applicable industry safety standards for use in properly rated electrical distribution equipment.
• Installation should be performed by a qualified electrician and in accordance with the National Electrical Code (NEC) and local regulations.


Where It Works Best

• Commercial buildings using 120/240VAC power distribution

• Industrial facilities with compatible CHB series panelboards

• Applications requiring a 2-pole, 100 amp bolt-on breaker

• Maintenance and replacement projects where CHB frame compatibility is required
