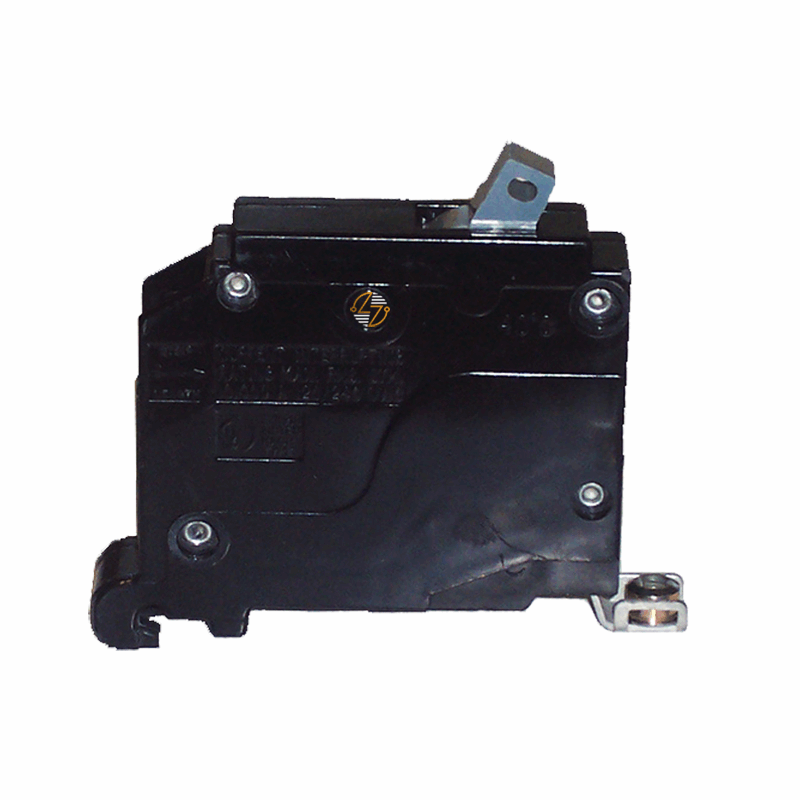

CHB150 - 50Amp Circuit Breaker

CHB150 - 50Amp Circuit Breaker

The CHB150 is a 50 Amp single-pole breaker used in Eaton CH Loadcenters. It’s mainly used as a replacement breaker in existing CH panel setups where you need to match the original breaker type and keep everything consistent inside the panel.

In practice, this breaker is often found on higher-load 120V branch circuits, along with general-purpose circuits that require a 50 amp rating. Inside, it uses a thermal magnetic trip, which handles both overloads and short-circuit conditions during normal operation. It’s designed for standard branch circuit protection in systems already built around Eaton CH equipment.

The CHB150 is rated for 120/240V systems with a 10kA interrupting rating, and it’s commonly used in residential and light commercial panels where CH loadcenters are already installed. Most of the time, it’s selected simply because it matches what’s already in place and keeps the system unchanged.

These breakers are typically used in maintenance situations where the goal is simple—replace the breaker, keep the same configuration, and get the panel back in service without any adjustments.

Key Features and Benefits

• 50 Amp single-pole breaker for Eaton CH Loadcenters
• Plug-in design for compatible CH panelboards
• Thermal magnetic protection for overloads and short circuits
• Rated for 120/240V systems
• 10kA interrupting rating
• Used in higher-load 120V branch circuits
• Designed for replacement in existing CH installations
• Keeps CH panel configuration consistent
• Common choice for like-for-like breaker replacement

Technical Specifications

• Catalog Number: CHB150

• Product Name: Eaton CH thermal magnetic circuit breaker

• Type: CHB

• Amperage Rating: 50 Amps

• Voltage Rating: 120/240V

• Poles: 1

• Interrupt Rating: 10 kAIC

• Wire Size: #8–4 AWG

• Mounting Style: Plug-in (CH Loadcenters)

• Dimensions: 3.3 in D x 1.5 in H x 2.8 in W

• Weight: 0.59 lb

Material Compliance and Certifications

• The CHB150 is UL 489 listed and intended for use in Eaton CH Loadcenters. It is designed for replacement and maintenance work in existing electrical systems. Installation should be completed by qualified electrical personnel and follow all applicable electrical codes and safety standards.

Where It Works Best

• Eaton CH Loadcenters and compatible CH panelboards
• Higher-load residential branch circuits
• Light commercial electrical systems
• Replacement of existing CHB-series breakers
• Maintenance work in installed CH panels
• Applications requiring 50A single-pole protection
