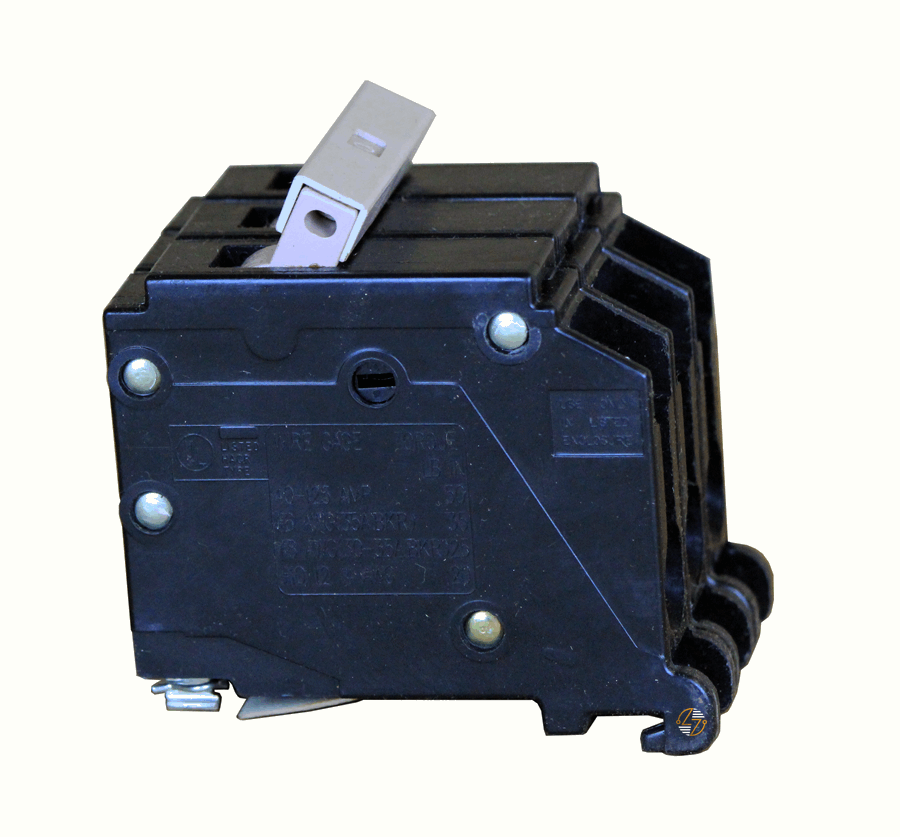

CH360 - 60Amp Circuit Breaker

CH360 - 60Amp Circuit Breaker

The CH360 is a 60 Amp, 3-pole CH plug-on circuit breaker used in compatible CH panelboards. It’s a solid mid-range option for three-phase circuits that need steady protection without stepping into heavier industrial breaker sizes.

You’ll typically run into this breaker in HVAC systems, pumps, compressors, and other motor-driven equipment operating on 240V three-phase power. When replacing one, it’s usually just a direct match—CH type, 3 poles, 60 amps, plug-on style—so it installs back into the panel the same way the original came out.

This breaker is rated for 240VAC systems, with a 10kA interrupting rating at 240VAC. It uses a thermal-magnetic trip unit, which is standard for handling overloads and short circuits in normal branch-circuit protection.

The plug-on design keeps installation quick in compatible CH panelboards. Once installed, it provides a solid connection and reliable protection for three-phase circuits under everyday operating conditions.

Key Features and Benefits

• 60 Amp 3-pole breaker for three-phase circuits
• CH plug-on design for compatible panelboards
• Thermal magnetic trip unit
• Rated for 240VAC systems
• 10kA interrupting rating at 240VAC
• 50/60Hz operation
• Rated for 40°C environments
• Common replacement for HVAC and motor circuits
• Used in CH-compatible panelboards

Technical Specifications

• Part Number: CH360

• Type: CH

• Poles: 3

• Amperage Rating: 60 Amps

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Mounting Style: Plug-On

• Trip Type: Thermal Magnetic

• Frequency: 50/60Hz

• Temperature Rating: 40°C

• Dimensions (Approx.): 2.25"W x 3.0"L x 2.5"D

• Height: 3.0 in.

• Width: 2.25 in.

• Depth: 2.5 in.

• Ship Weight: 2.50 lbs

Material Compliance and Certifications

• This breaker is intended for use in compatible CH electrical equipment. Always verify panel compatibility before installation. Installation should be handled by a qualified electrician and follow all applicable electrical codes.

Where It Works Best

• CH-compatible panelboards

• HVAC systems and air handlers

• Pumps and compressor circuits

• Medium-duty motor loads

• Industrial control panels

• Mechanical rooms

• Maintenance and replacement work

• Plug-on CH breaker applications
