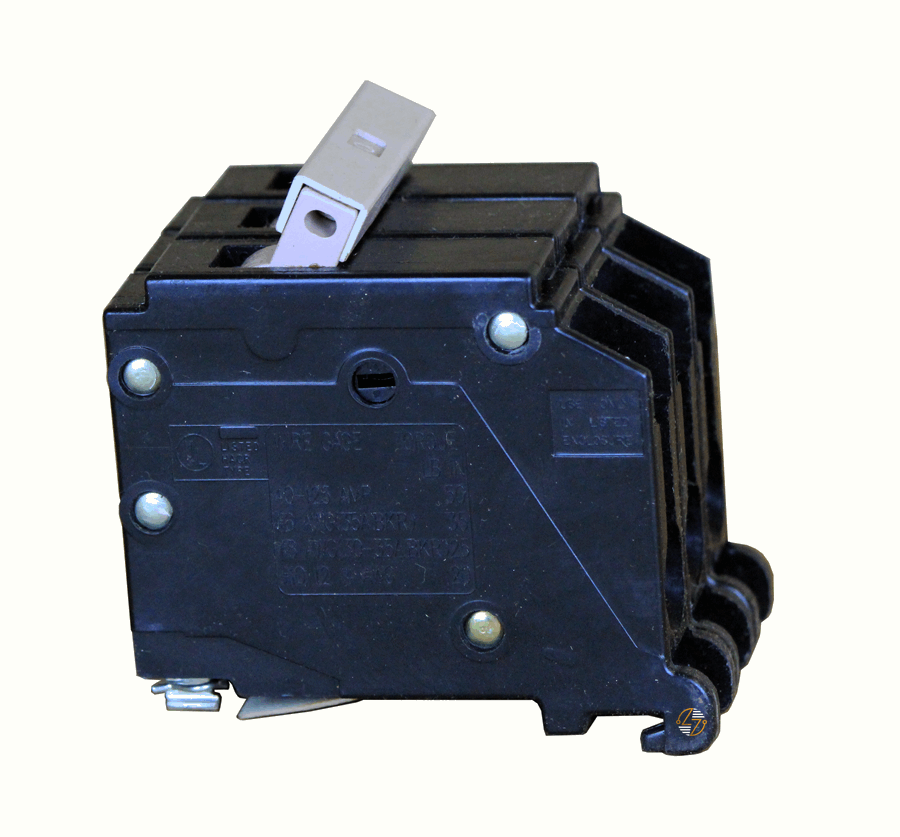

CH350 - 50Amp Circuit Breaker

CH350 - 50Amp Circuit Breaker

The CH350 is a 50 Amp, 3-pole CH plug-on circuit breaker used in compatible CH panelboards. It’s a common choice for three-phase circuits that sit in the mid-range of load requirements, especially where consistent protection is needed without stepping up to larger frame sizes.

In everyday use, this breaker is often found in HVAC systems, pumps, compressors, and general motor circuits running on 240V three-phase power. When you're replacing one, it’s usually a straightforward match—CH type, 3 poles, 50 amps, plug-on style—so it fits right back into the same position in the panel.

This breaker is rated for 240VAC systems, with a 10kA interrupting rating at 240VAC.

The plug-on design keeps installation simple in compatible CH panelboards. Once installed, it provides a secure connection and reliable protection for three-phase circuits under normal operating conditions.

Key Features and Benefits

• 50 Amp 3-pole breaker for three-phase circuits
• CH plug-on design for compatible panelboards
• Thermal magnetic trip unit
• Rated for 240VAC systems
• 10kA interrupting rating at 240VAC
• 50/60Hz operation
• Rated for 40°C environments
• Common replacement for HVAC and motor circuits
• Used in CH-compatible panelboards

Technical Specifications

• Part Number: CH350

• Type: CH

• Poles: 3

• Amperage Rating: 50 Amps

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Mounting Style: Plug-On

• Trip Type: Thermal Magnetic

• Frequency: 50/60Hz

• Temperature Rating: 40°C

• Dimensions (Approx.): 2.25"W x 3.0"L x 2.5"D

• Height: 3.0 in.

• Width: 2.25 in.

• Depth: 2.5 in.

• Ship Weight: 2.50 lbs

Material Compliance and Certifications

• This breaker is intended for use in compatible CH electrical distribution equipment. Always confirm panel compatibility before installation. Installation should be completed by a qualified electrician and in accordance with all applicable electrical codes.

Where It Works Best

• CH-compatible panelboards

• HVAC equipment and air handling systems

• Pumps and compressor circuits

• Medium motor loads

• Industrial control panels

• Mechanical rooms

• Maintenance and replacement work

• Plug-on CH breaker applications
