CH330 30A Circuit Breaker

CH330 30A Circuit Breaker

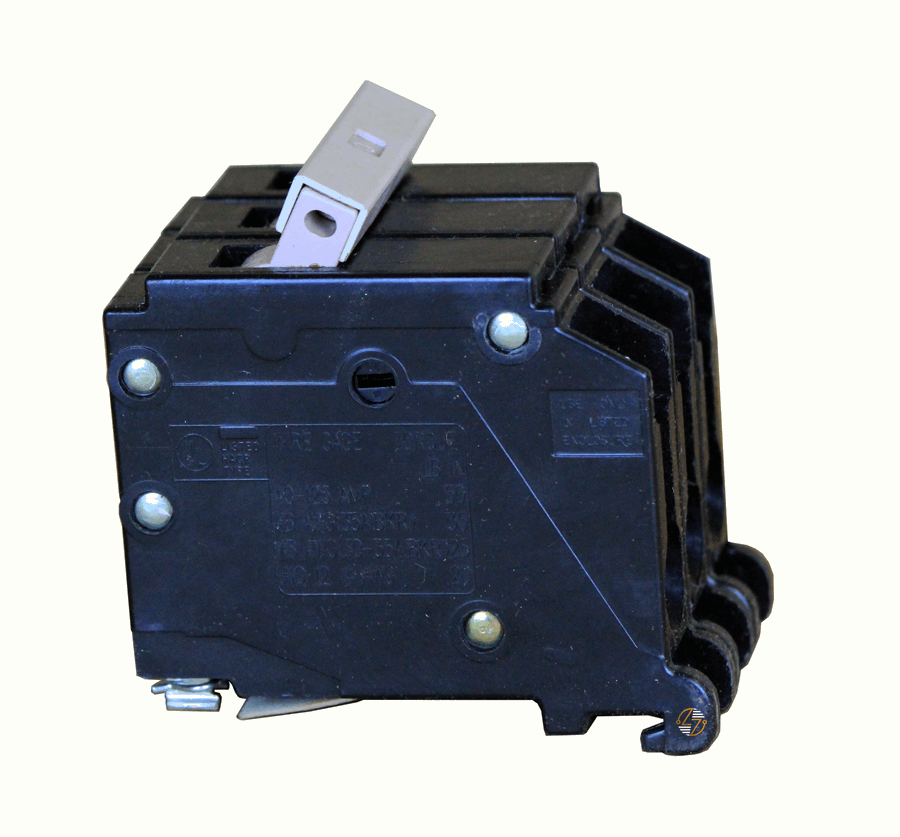

The Eaton CH330 is a premium-grade thermal magnetic circuit breaker that offers exceptional protection and reliability for your electrical systems. Designed to fit Type CH Loadcenters, this three-pole circuit breaker ensures a common trip for all poles, providing consistent performance across a 240V system. With a compact 3/4-inch standard size, it occupies minimal space while delivering maximum efficiency.

Key Features and Benefits:

• High Interrupt Capacity: The CH330 comes with a 10 kAIC interrupt rating, ensuring protection against high current surges and enabling safe, reliable circuit control.
• Thermal Magnetic Trip Mechanism: Offers both thermal and magnetic trip actions, providing double protection mechanisms for overcurrent situations caused by overloads and short circuits.
• Robust Construction: With dimensions carefully crafted to ensure durability and a long service life, measuring 3.2 inches in depth, 2.6 inches in height, and 2.2 inches in width, and weighing only 0.9 lb.
• Easy Installation: Accepts wire sizes from #14-6 AWG Cu/Al, allowing for flexible installation options and compatibility with a variety of wiring setups.

Technical Specifications:

• Ampere Rating: 30 A
• Voltage Rating: 240 V
• Pole Configuration: Three-pole
• Trip Type: Common breaker trip
• Certifications: UL 489, confirming its adherence to safety standards.

Material Compliance and Certifications:

• The CH330 is certified under UL 489: Which guarantees its construction and performance meet rigorous safety and reliability standards. It is also HACR rated, indicating suitability for heating, air-conditioning, and refrigeration equipment.

Suitability:

• Ideal for residential and commercial settings that require reliable and high-performance circuit protection. It is specifically designed to be used with Eaton's Type CH Loadcenters, making it a versatile solution for a variety of electrical distribution systems.

The Eaton CH330 circuit breaker is an essential component for anyone looking to enhance the safety and efficiency of their electrical infrastructure. With its robust features and proven reliability, it stands out as a smart choice for safeguarding electrical systems in any environment.
