CH320 20A Circuit Breaker

CH320 20A Circuit Breaker

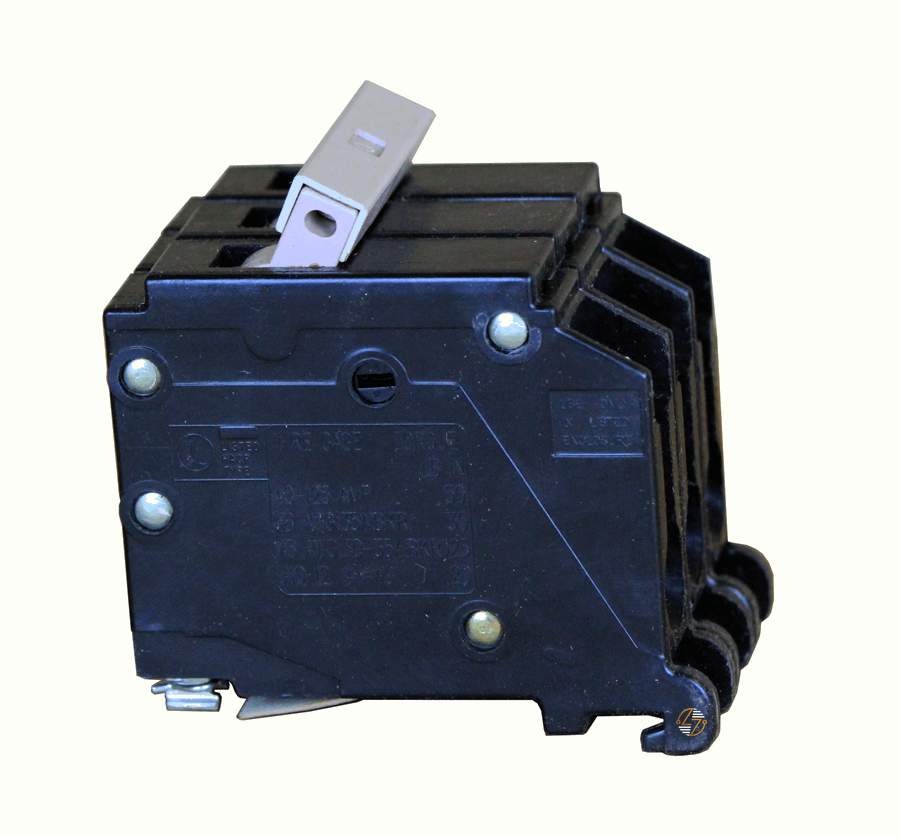

The Eaton CH320 is a highly efficient and dependable solution for power management, designed to meet the rigorous demands of residential and commercial loadcenters. This 3/4-inch standard circuit breaker offers a three-pole common trip mechanism, ensuring swift and uniform response during faults, making it an ideal choice for safeguarding electrical circuits against overload and short-circuit conditions. Rated for 20 A and 240V, the CH320 features a robust interrupt rating of 10 kAIC, providing superior protection for electrical systems.

Key Features and Benefits:

• Compact Design: Fits comfortably in Type CH Loadcenters, optimizing space with its slim 3/4-inch profile.
• High Interrupt Capacity: Effectively handles high fault currents up to 10 kAIC, preventing damage to the electrical system.
• Versatile Wiring Compatibility: Accommodates #14-6 AWG Cu/Al wires, making installation flexible and straightforward.
• Common Trip Mechanism: Offers simultaneous tripping of all poles, enhancing safety by ensuring complete disconnection of the circuit under fault conditions.

Technical Specifications:

• Amperage: 20 A
• Voltage: 240 V
• Interrupt Rating: 10 kAIC
• Pole Configuration: Three-pole
• Wire Size: #14-6 AWG Cu/Al

Material Compliance and Certifications:

• Safety Certified: UL 489 standard for reliable protection against overcurrent and short circuits.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration equipment, offering versatile applications.

Suitability:

• Residential and Commercial Use: Ideal for deployment in main panel loadcenters of homes and businesses.
• Compatibility: Designed exclusively for use with Eaton’s Type CH Loadcenters, ensuring seamless integration and performance.

The Eaton CH320 circuit breaker is engineered to deliver reliable, continuous protection, making it a vital component in managing electrical distribution efficiently and safely. Its adherence to stringent safety standards and compatibility with a wide range of wiring setups make it a top choice for professionals looking to ensure electrical integrity in demanding applications.
