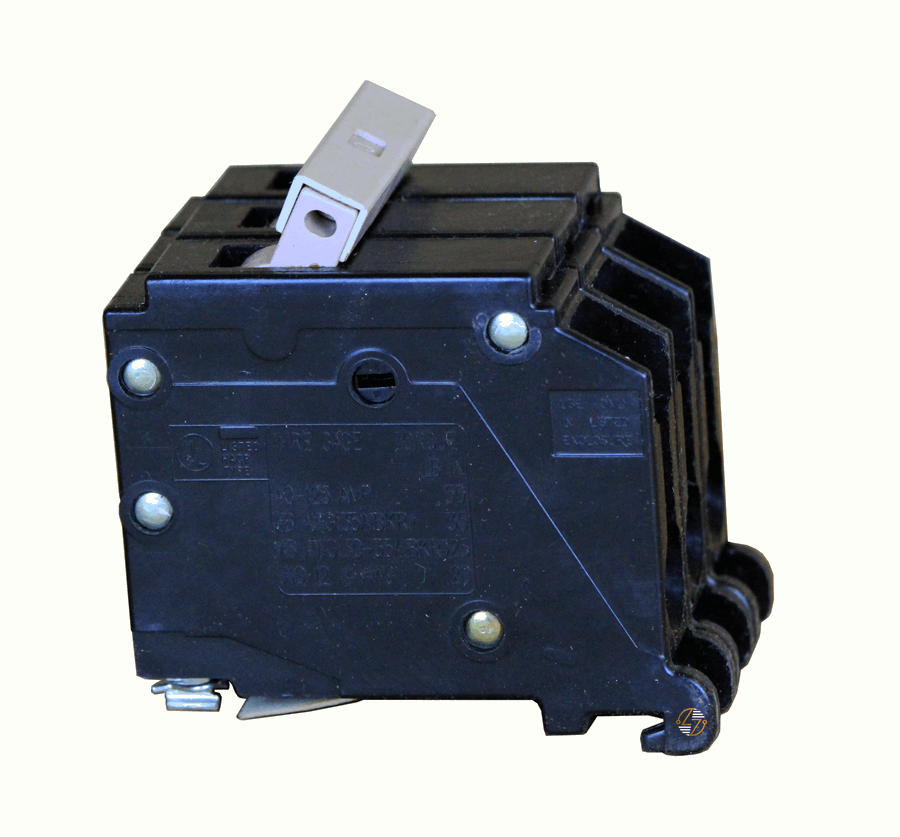

The CH3100 Tan Handle is a 100 Amp, 3-pole CH plug-on circuit breaker used in compatible CH panelboards. It’s a pretty common one in three-phase setups where you need solid protection for a larger load without changing anything in the panel.

Most of the time, you’ll run into this breaker on HVAC equipment, pumps, compressors, and other motor loads running on 240V three-phase power. When you're replacing it, it’s usually just a matter of matching the basics—CH type, 3 poles, 100 amps, plug-on style, and tan handle—so it fits right back where the old one came out.

This breaker is rated for 240VAC systems, with a 10kA interrupting rating at 240VAC. It uses a thermal magnetic trip, which is standard for this type of branch circuit protection. It’s designed for 50/60Hz operation in 40°C environments, which covers most commercial and light industrial applications you’ll see it in. The plug-on design makes installation simple in compatible CH panelboards. Once it’s seated, it gives a solid connection and handles everyday overcurrent protection for three-phase circuits.

Key Features and Benefits

• 100 Amp 3-pole breaker for three-phase circuits
• CH plug-on design for compatible panelboards
• Tan handle identification
• Thermal magnetic trip unit
• Rated for 240VAC systems
• 10kA interrupting rating at 240VAC
• 50/60Hz operation
• Rated for 40°C environments
• Common replacement for HVAC and motor circuits
• Used in CH-compatible panelboards

Technical Specifications

• Part Number: CH3100 (Tan Handle)

• Type: CH

• Poles: 3

• Amperage Rating: 100 Amps

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Mounting Style: Plug-On

• Trip Type: Thermal Magnetic

• Frequency: 50/60Hz

• Temperature Rating: 40°C

• Dimensions (Approx.): 2.25"W x 3.0"L x 2.5"D

• Height: 3.0 in.

• Width: 2.25 in.

• Depth: 2.5 in.

• Ship Weight: 2.5 lbs


Material Compliance and Certifications

• This breaker is made for compatible CH panelboards only. Before installing, always double-check fit and rating. Installation should be done by a qualified electrician following local code.

Where It Works Best

• CH panelboards in commercial buildings

• HVAC equipment and air handlers

• Pumps and compressor circuits

• Motor load protection

• Mechanical rooms

• Maintenance and replacement jobs

• Plug-on CH breaker applications
