CH290 - 90Amp Circuit Breaker

CH290 - 90Amp Circuit Breaker

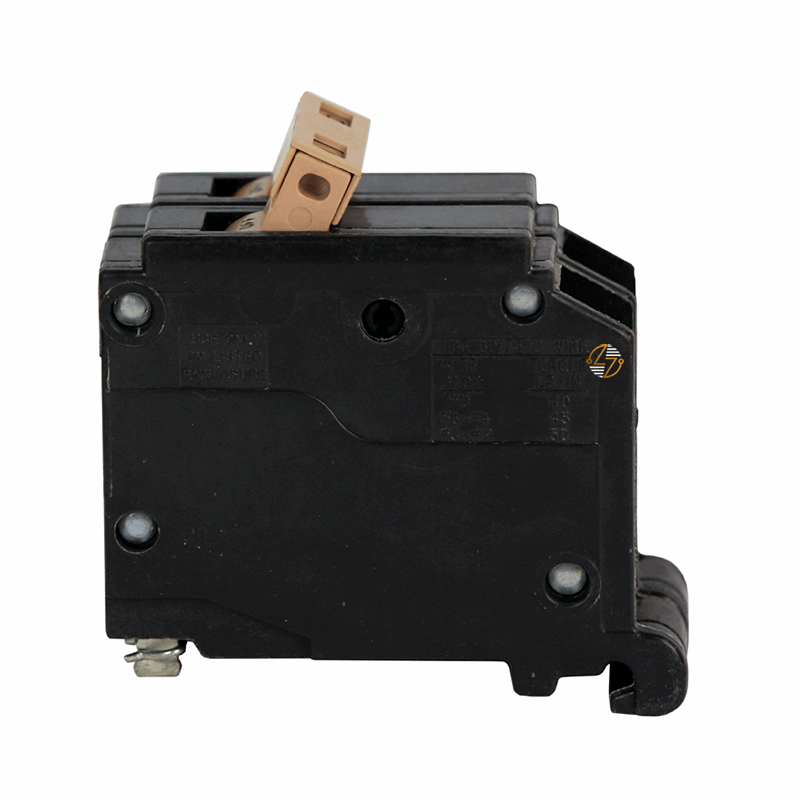

The CH290 is a 90 Amp, 2-pole Type CH circuit breaker designed for use in compatible 120/240VAC electrical distribution systems. Featuring a convenient plug-on mounting design, this breaker is commonly installed in residential, commercial, and light industrial applications where a higher-amperage branch circuit requires dependable overcurrent protection.

When you're replacing an existing breaker, compatibility is often the first concern. The CH290 is built for applications that call for a Type CH breaker and provides the amperage, voltage, and interrupting ratings needed for many demanding electrical loads. With its 90-amp rating, this breaker is frequently used for larger HVAC equipment, electric heating systems, pumps, compressors, water heating equipment, and other high-power 240-volt applications.

Rated at 10kA interrupting capacity at 120/240VAC, the CH290 is designed to help protect conductors and connected equipment from damage caused by overloads and short-circuit conditions. Its compact footprint allows it to fit compatible CH panel installations without occupying additional panel space. Whether your project involves routine maintenance, service upgrades, equipment replacement, or panel repairs, the CH290 provides the specifications electricians and maintenance professionals look for when selecting a compatible replacement breaker.

Key Features and Benefits

• 90 Amp current rating
• 2-pole circuit breaker design
• Type CH configuration
• Plug-on mounting style for compatible load centers
• Rated for 120/240VAC electrical systems
• 10kA interrupting capacity
• Designed for use in compatible CH panel applications
• Suitable for replacement, maintenance, and upgrade projects
• Compact design helps maximize available panel space
• Commonly used for larger 240-volt electrical loads

Technical Specifications

• Part Number: CH290

• Type: CH

• Poles: 2

• Amperage Rating: 90 Amps

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Plug-On
• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D

• Approximate Ship Weight: 1.0 lb.


Material Compliance and Certifications

• The CH290 is intended for installation in compatible electrical distribution equipment and should be applied according to manufacturer recommendations and applicable electrical codes. Product compatibility, certification requirements, and installation standards should always be verified before use. Installation and servicing should be performed by qualified electrical personnel.

Where It Works Best

The CH290 is commonly used in applications requiring a 90-amp, 2-pole circuit breaker, including:

• HVAC and air conditioning equipment
• Electric furnaces and heating systems
• Water heating equipment
• Pumps and motor-driven loads
• Compressors
• Dedicated 120/240VAC branch circuits
• Residential electrical panels
• Commercial electrical systems
• Light industrial facilities
• Service, repair, and replacement projects involving compatible Type CH panelboards and load centers

For applications that require a compatible 90 Amp Type CH breaker, the CH290 offers the electrical ratings and plug-on design needed for a wide range of power distribution and equipment protection requirements.
