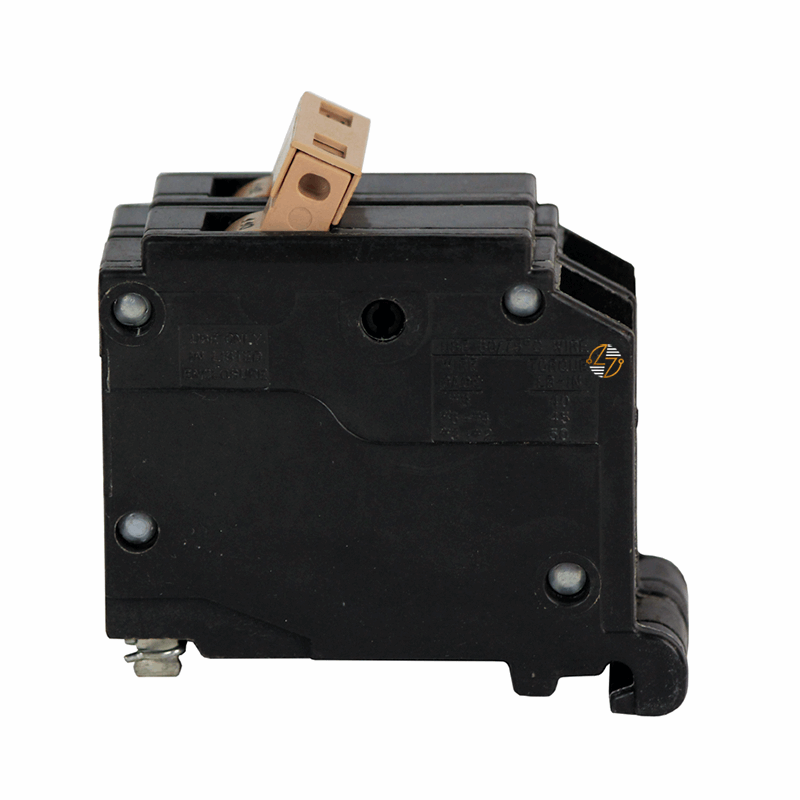

CH270 - 70Amp Circuit Breaker

CH270 - 70Amp Circuit Breaker

The CH270 is a 70 Amp, 2-pole Type CH circuit breaker designed for use in compatible 120/240VAC electrical systems. Featuring a plug-on mounting design, it is commonly used where a 70-amp, two-pole breaker is specified for a dedicated branch circuit or larger electrical load.

In many installations, breakers of this size are used with HVAC equipment, electric water heaters, pumps, compressors, and other 240-volt applications. When you're replacing an existing breaker, matching the correct type, amperage rating, pole configuration, and panel compatibility is usually the first step. The CH270 is built for those situations, providing the form, fit, and function required for compatible Type CH panel applications.

The breaker carries a 10kA interrupting rating at 120/240VAC and installs in compatible load centers using a plug-on connection. Whether the job involves routine maintenance, a panel repair, or replacing a failed breaker, the CH270 offers the ratings needed for a wide range of residential, commercial, and light industrial applications.

Key Features and Benefits

• 70 Amp current rating
• 2-pole configuration
• Type CH circuit breaker
• Plug-on mounting style
• Rated for 120/240VAC systems
• 10kA interrupting capacity
• Designed for use in compatible Type CH panel applications
• Suitable for maintenance, repair, and replacement projects
• Built to last in properly maintained installations
• Compact footprint for efficient use of panel space

Technical Specifications

• Part Number: CH270

• Type: CH

• Poles: 2

• Amperage Rating: 70 Amps

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Plug-On
• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D

• Approximate Ship Weight: 1.0 lb.


Material Compliance and Certifications

• This circuit breaker is intended for installation in compatible electrical distribution equipment. Compatibility, certification requirements, and applicable electrical code requirements should be verified before installation. Installation and servicing should be performed by qualified electrical personnel and in accordance with local regulations.

Where It Works Best

• Dedicated 120/240VAC branch circuits
• HVAC equipment circuits
• Electric water heaters
• Pumps and motor applications
• Compressors and other 240-volt equipment
• Residential electrical panels
• Commercial electrical systems
• Light industrial facilities
• Service and repair work
• Replacement of compatible Type CH circuit breakers
