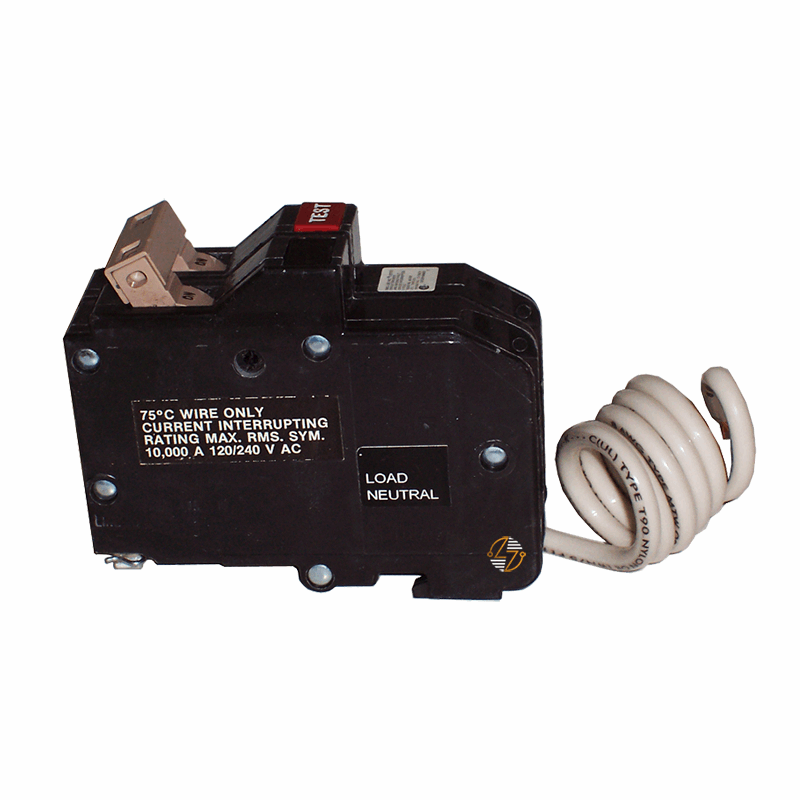

CH260GF - 60Amp Circuit Breaker

CH260GF - 60Amp Circuit Breaker

The CH260GF is a 60 Amp, 2-pole CHGF circuit breaker for use in compatible 120/240VAC electrical systems. Built with a plug-on mounting design, it is commonly used where a 60-amp breaker is specified for a dedicated branch circuit or larger electrical load.

When replacing a breaker, the important details are usually straightforward: match the breaker type, amperage, voltage rating, and panel compatibility. The CH260GF is intended for those situations.

You'll often find breakers in this range serving HVAC equipment, electric water heaters, pumps, motors, and other 240-volt loads.

For electricians, maintenance departments, and facility managers, finding the correct replacement is usually the priority. The CH260GF provides the form, fit, and function expected for compatible CHGF applications and is built to last in properly maintained electrical systems.

Key Features and Benefits

• 60 Amp current rating
• 2-pole configuration
• Type CHGF circuit breaker
• Plug-on mounting style
• Rated for 120/240VAC systems
• 10kA interrupting capacity
• Helps protect circuits from overloads and fault conditions
• Designed for use in compatible CHGF panel applications
• Suitable for maintenance, repair, and replacement projects
• Built to last in properly maintained installations

Technical Specifications

• Part Number: CH260GF

• Type: CHGF

• Poles: 2

• Amperage Rating: 60 Amps

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Plug-On
• Height: 4.63 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 4.63"L x 2.5"D

• Approximate Shipping Weight: 2.0 lbs


Material Compliance and Certifications

• This circuit breaker is intended for installation in compatible electrical distribution equipment. Compatibility, certification requirements, and applicable electrical code requirements should be verified before installation. Installation and servicing should be performed by qualified electrical personnel and in accordance with local regulations.

Where It Works Best

• Dedicated 120/240VAC branch circuits
• HVAC equipment circuits
• Electric water heaters
• Pumps and motor applications
• Residential electrical panels
• Commercial electrical systems
• Light industrial facilities
• Facility maintenance projects
• Service and repair work
• Replacement of compatible CHGF circuit breakers
