CH250GF - 50Amp Circuit Breaker

CH250GF - 50 Amp Circuit Breaker

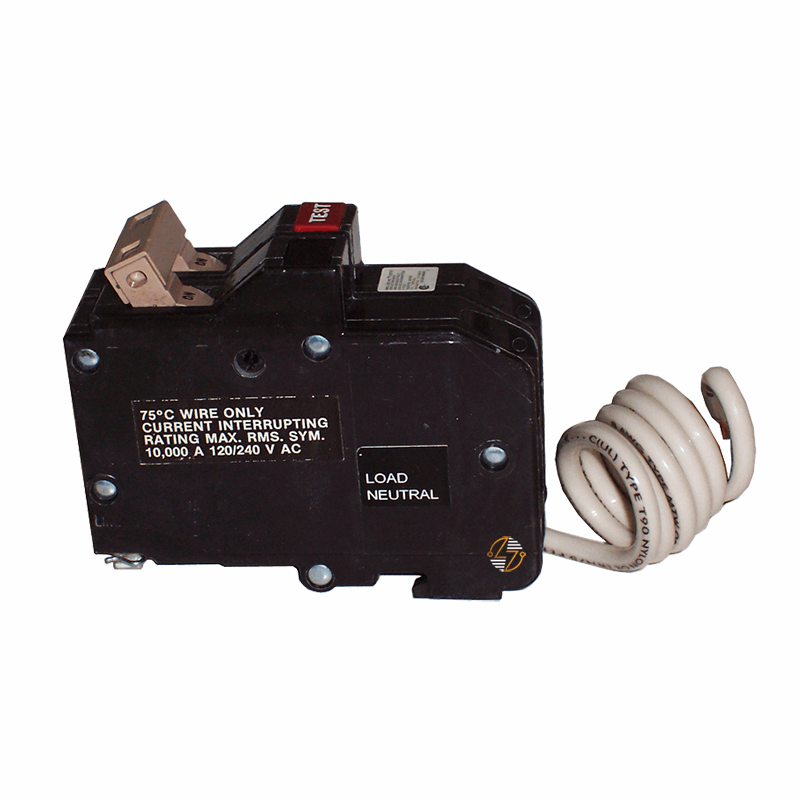

The CH250GF circuit breaker is a 2-pole, 50 amp plug-on style breaker designed for use in compatible CH series load centers and panelboards operating at 120/240VAC. Built on the CHGF frame platform, this breaker provides reliable overcurrent protection with a 10k A.I.C. interrupting rating, helping safeguard electrical systems from damage caused by overloads and short circuits. Its compact form factor and secure plug-on connection make installation straightforward in properly rated panels. Designed for long service life in residential and light commercial environments, the CH250GF is engineered for consistent operation and dependable circuit protection where a 50A, 2-pole configuration is required.

Key Features and Benefits

• 50 Amp Rating: Suitable for branch circuits requiring 50A overcurrent protection.
• 2-Pole Configuration: Designed for 120/240VAC applications requiring simultaneous disconnection of both lines.
• 10k A.I.C. Rating: Rated to interrupt fault currents up to 10,000 amps at 120/240VAC.
• CHGF Frame Type: Compatible with designated CH series load centers and panelboards.
• Plug-On Mounting: Installs directly onto the panel bus for a secure mechanical and electrical connection.
• Built to Last: Manufactured for durability and consistent performance in properly rated systems.

Technical Specifications

• Part Number: CH250GF

• Amperage: 50 Amps

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Rating (A.I.C.): 10kA @ 120/240VAC

• Frame Type: CHGF

• Mounting Style: Plug-On

• Height: 4.63 inches

• Ship Weight: 1.5 lbs


Material Compliance and Certifications

• Industry Standards: The CH250GF circuit breaker is manufactured to meet applicable industry standards for molded case circuit breakers used in residential and light commercial electrical distribution systems.
• UL and NEC Requirements: It is produced in accordance with relevant UL and NEC requirements for listed circuit protection devices when installed in compatible equipment and in compliance with local electrical codes. Always confirm panel compatibility and code requirements prior to installation.

Where It Works Best

• Residential load centers supporting 240V appliances
• HVAC equipment circuits
• Water heaters and similar fixed appliances
• Light commercial panels requiring 50 amp, 2-pole protection
• Replacement applications in existing CH series panelboards
