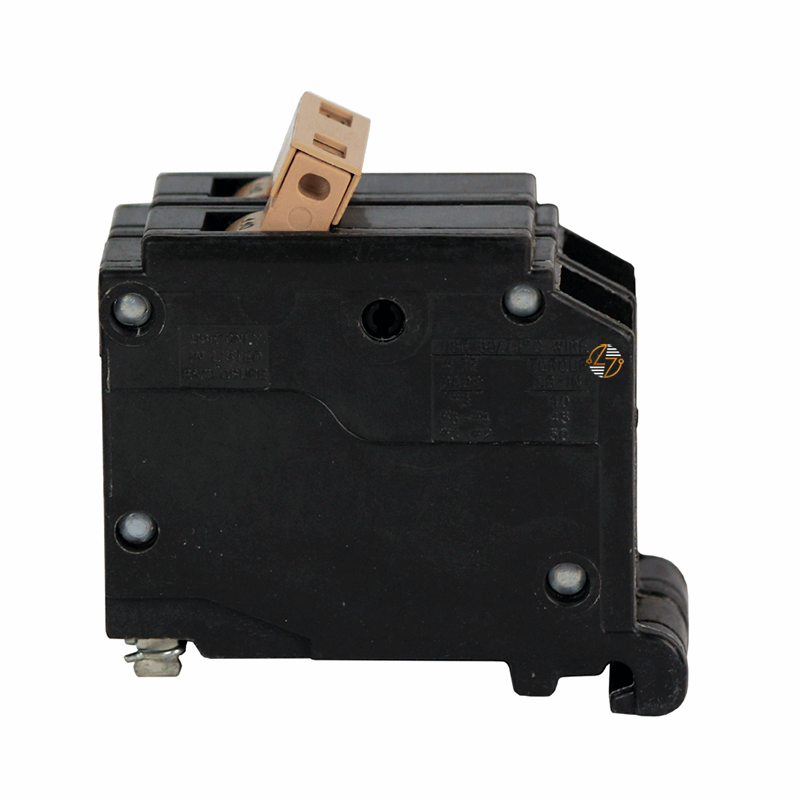

CH250 - 50Amp Circuit Breaker

CH250 - 50Amp Circuit Breaker

The CH250 is a 50 Amp, 2-pole Type CH circuit breaker used in compatible 120/240VAC electrical systems. It features a plug-on design and is intended for applications where a 50-amp, two-pole breaker is required.

In many installations, a breaker of this size is used on dedicated circuits serving larger electrical loads. Whether you're replacing an existing unit during maintenance or matching components in a compatible panel, the important details are the breaker type, amp rating, pole configuration, and voltage rating.

Rated 10kA at 120/240VAC, the breaker is intended to interrupt overloads and fault conditions before they can affect connected conductors or equipment.

For contractors, electricians, maintenance departments, and property managers, finding the correct replacement breaker is often about compatibility more than anything else. The CH250 provides the form, fit, and function expected for compatible CH applications and is built to last in properly maintained electrical systems.

Key Features and Benefits

• 50 Amp current rating
• 2-pole configuration
• Type CH circuit breaker
• Plug-on mounting style
• Rated for 120/240VAC systems
• 10kA interrupting capacity
• Helps protect circuits from overloads and fault conditions
• Designed for use in compatible CH panel applications
• Suitable for maintenance, repair, and replacement projects

Technical Specifications

• Part Number: CH250

• Type: CH

• Poles: 2

• Amperage Rating: 50 Amps

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Plug-On
• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D


Material Compliance and Certifications

• This circuit breaker is intended for installation in compatible electrical distribution equipment. Verify equipment compatibility, applicable certifications, and local code requirements before installation. Installation and servicing should be performed by qualified electrical personnel.

Where It Works Best

• Dedicated 120/240VAC branch circuits
• HVAC equipment circuits
• Electric water heaters
• Pump and motor applications
• Residential electrical panels
• Commercial electrical systems
• Maintenance and repair work
• Panel retrofits and service projects
• Replacement of compatible Type CH circuit breakers
