CH230GF - 30Amp Circuit Breaker

CH230GF - 30 Amp Circuit Breaker

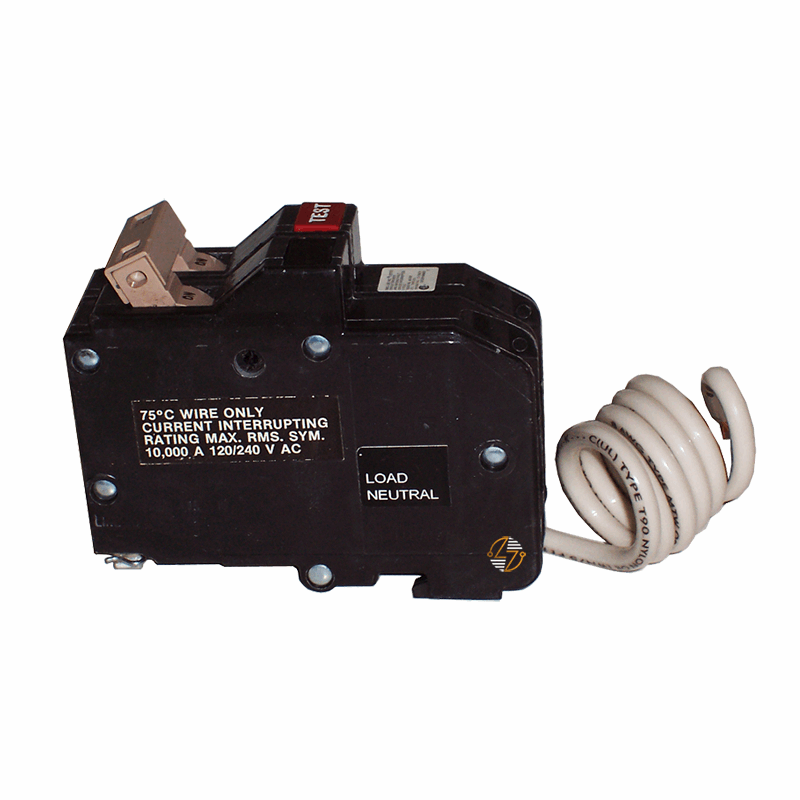

The CH230GF is a 2-pole, 30 amp circuit breaker designed for use in panels that accept the CHGF frame style. It’s rated for 120/240VAC applications and has a 10kA interrupting capacity, making it suitable for properly sized residential and light commercial branch circuits. This is a plug-on breaker, so it connects directly to compatible CH-style load centers without special adapters or modifications. If you’re replacing an existing breaker with the same ratings, the CH230GF provides the correct amperage, pole configuration, and mounting style to maintain the original setup of the panel. It’s built to last and intended to deliver consistent circuit protection within its listed specifications.

Key Features and Benefits

• 30 Amp rating: 30 Amp rating for dedicated branch circuits
• 2-pole breaker: 2-pole breaker for 120/240VAC systems
• 10kA interrupting capacity: 10kA interrupting capacity
• CHGF frame type: CHGF frame type for proper panel compatibility
• Plug-on installation design: Plug-on installation design
• Designed for long service life: Designed for long service life in compatible electrical systems
• Form, fit, and functional replacement: Suitable as a form, fit, and functional replacement

Technical Specifications

• Part Number: CH230GF

• Amperage: 30A

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Frame Type: CHGF

• Mounting Style: Plug-On

• Height: 4.63 inches

• Shipping Weight: 1.5 lbs


Material Compliance and Certifications

• UL Standards: This breaker is manufactured to meet applicable UL standards for molded case circuit breakers.
• Panel Compatibility: It is intended for installation in compatible panelboards designed for CHGF frame plug-on breakers.
• Code Compliance: As with any electrical component, installation should follow NEC requirements and local code regulations.


Where It Works Best

• The CH230GF is commonly used in residential and small commercial load centers that require a 2-pole, 30 amp breaker. Typical applications include 240V equipment such as water heaters, HVAC systems, and other dedicated circuits operating within the breaker’s rating.
