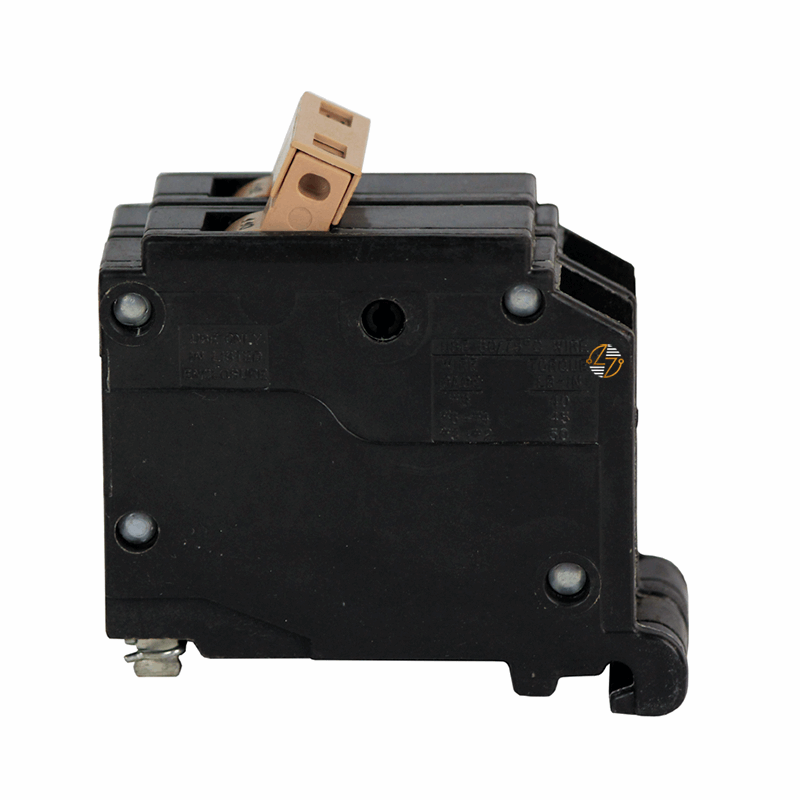

CH225 - 25Amp Circuit Breaker

CH225 - 25Amp Circuit Breaker

The CH225 is a 25 Amp, 2-pole Type CH plug-on circuit breaker rated for 120/240VAC systems. With a 10kA interrupting capacity, it is designed for use in compatible CH load centers and panelboards.

Whether you're replacing a breaker that's already in service or matching specifications for a repair project, the CH225 is intended for applications that call for a 25 Amp, 2-pole Type CH breaker.

The CH225 is commonly found in residential, commercial, and light industrial electrical systems. Contractors, electricians, and maintenance personnel often use this breaker when servicing panels that require a specific CH-series configuration.

Key Features and Benefits

• 25 Amp current rating
• 2-pole configuration
• Type CH circuit breaker
• Plug-on mounting design
• Rated for 120/240VAC applications
• 10kA interrupting capacity
• Compatible with approved CH load centers and panelboards
• Commonly used for maintenance and replacement projects
• Compact molded case construction


Technical Specifications

• Part Number: CH225

• Type: CH

• Poles: 2

• Amperage Rating: 25 Amps

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Plug-On

• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D

• Approximate Shipping Weight: 1.00 lb.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Designed for installation in compatible electrical distribution equipment
• Manufactured to applicable industry standards for its intended use
• Intended for use in approved CH load centers and panelboards


Where It Works Best

The CH225 is commonly used in compatible CH panelboards and load centers in residential, commercial, and light industrial settings.
