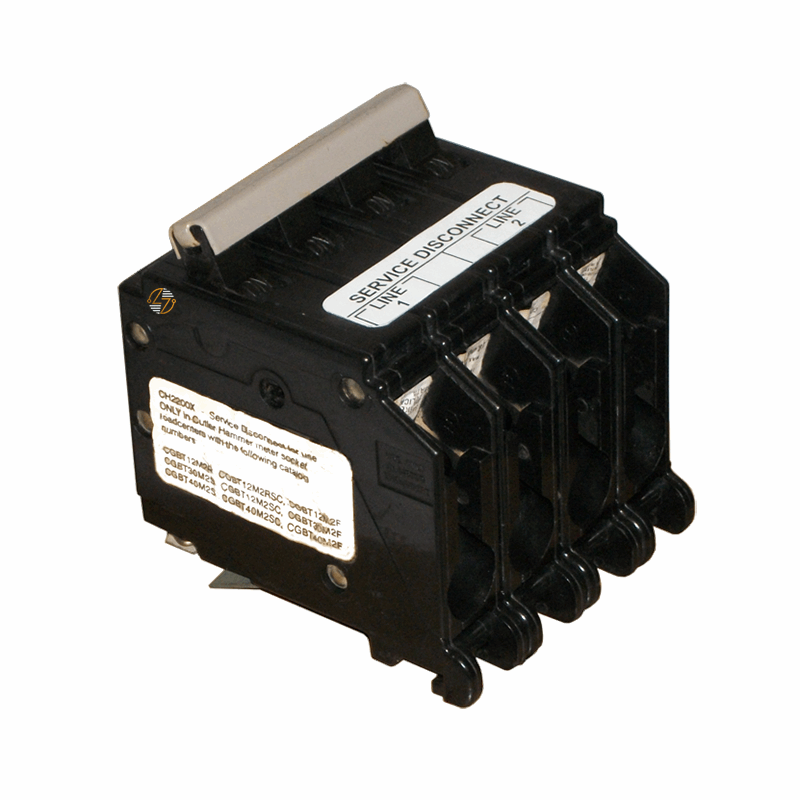

CH2200X - 200Amp Circuit Breaker

CH2200X - 200Amp Circuit Breaker

When your electrical system requires dependable protection for high-capacity circuits, the CH2200X 200 Amp 2-Pole Type CH Circuit Breaker delivers the performance needed to help keep power flowing safely. Designed for use in compatible Type CH load centers and panelboards, this plug-on breaker provides reliable overcurrent protection for demanding residential, commercial, and light industrial applications.

With a 200 Amp rating, 2-pole configuration, and 120/240VAC operating voltage, the CH2200X is well-suited for protecting large electrical loads, feeder circuits, and distribution equipment. Its plug-on design helps simplify installation in approved CH panels, while the compact molded case construction occupies just four panel spaces. Whether you're replacing an existing breaker or maintaining critical electrical infrastructure, the CH2200X offers the protection and performance expected from a high-amperage circuit breaker.

Key Features and Benefits

• Provides reliable overcurrent and short-circuit protection
• 200 Amp rating for larger electrical loads and feeder circuits
• 2-pole design for 120/240VAC electrical systems
• Plug-on mounting style for compatible Type CH panelboards and load centers
• 10kA interrupting capacity for dependable fault protection
• Compact design requires only 4 panel spaces
• Suitable for residential, commercial, and light industrial applications
• Helps protect valuable electrical equipment from damage caused by overloads and fault conditions


Technical Specifications

• Part Number: CH2200X

• Type: CH

• Poles: 2

• Amperage Rating: 200 Amps

• Voltage Rating: 120/240VAC

• Interrupting Capacity: 10kA @ 120/240VAC

• Mounting Style: Plug-On

• Panel Space Requirement: 4 Spaces

• Height: 3.0 in.
• Width: 3.0 in.
• Depth: 2.5 in.
• Approximate Dimensions: 3.0"W x 3.0"L x 2.5"D

• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Designed for use in compatible electrical distribution equipment
• Manufactured in accordance with applicable industry standards for circuit protection devices
• Intended for installation by qualified personnel and in compliance with applicable electrical codes
• Equipment compatibility should always be verified before installation


Where It Works Best

The CH2200X is an excellent choice for applications that require a 200 Amp Type CH circuit breaker, including main feeder circuits, service upgrades, electrical distribution systems, panel maintenance projects, and replacement installations. It is commonly used in homes, commercial facilities, workshops, and light industrial environments where dependable circuit protection is essential for maintaining safe and efficient operation.
