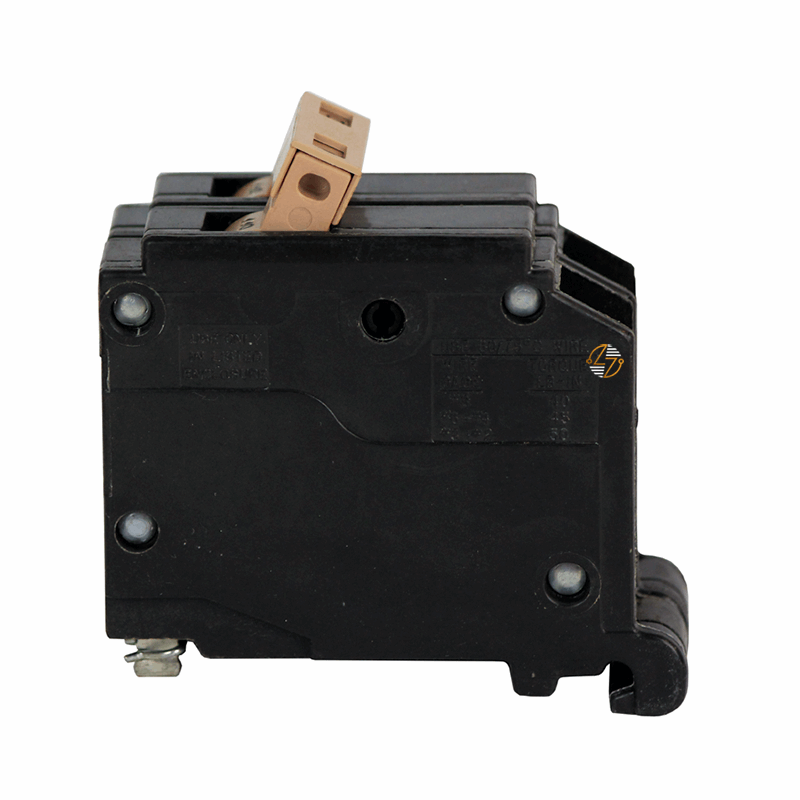

CH220 20A Circuit Breaker

CH220 20A Circuit Breaker

Enhance your electrical system with the Eaton CH220 Circuit Breaker, a top-tier choice from Eaton's CH series, designed for optimal safety and performance. Perfect for residential and commercial applications, this two-pole, 20-amp breaker is crafted with advanced thermal magnetic technology to provide reliable circuit protection. With a 10 kA interrupting capacity, it efficiently handles fault conditions, ensuring your electrical setup remains safeguarded against overloads and short circuits.

Key Features and Benefits:

• Thermal Magnetic Protection: The CH220 breaker combines thermal and magnetic trip elements to respond quickly to overcurrent conditions, providing enhanced protection.
• Trip Flag Indicator: Easily identify tripped circuits with the built-in trip flag, facilitating quick troubleshooting and maintenance.
• HACR Rated: Ideal for heating, air conditioning, and refrigeration circuits, ensuring versatile application across various systems.
• High Interrupting Capacity: With a 10 kAIC rating, it offers robust protection, making it suitable for modern electrical demands.
• Compatibility: Designed for use with Eaton Type CH loadcenters, ensuring seamless integration and consistent performance.
• Wire Accommodation: Supports (1) #14-8 AWG and (2) #14-10 AWG Cu/Al wires, providing flexibility in installation.

Technical Specifications:

• Amperage Rating: 20A
• Voltage Rating: 120/240V
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Dimensions: 1.50"W x 3.00"L x 2.50"D
• Weight: 1 lb
• Trip Type: Thermal Magnetic

Material Compliance and Certifications:

• The Eaton CH220 circuit breaker adheres to stringent safety and performance standards, certified under UL 489. It is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications, ensuring it meets industry-specific requirements for various systems.

Suitability:

• The Eaton CH220 is ideal for residential and commercial environments requiring reliable and robust circuit protection. Its advanced thermal magnetic trip technology, combined with the convenient trip flag indicator, makes it a trusted component for electricians and homeowners seeking quality and dependability. Whether upgrading an existing system or setting up a new installation, the CH220 delivers exceptional performance and peace of mind.
