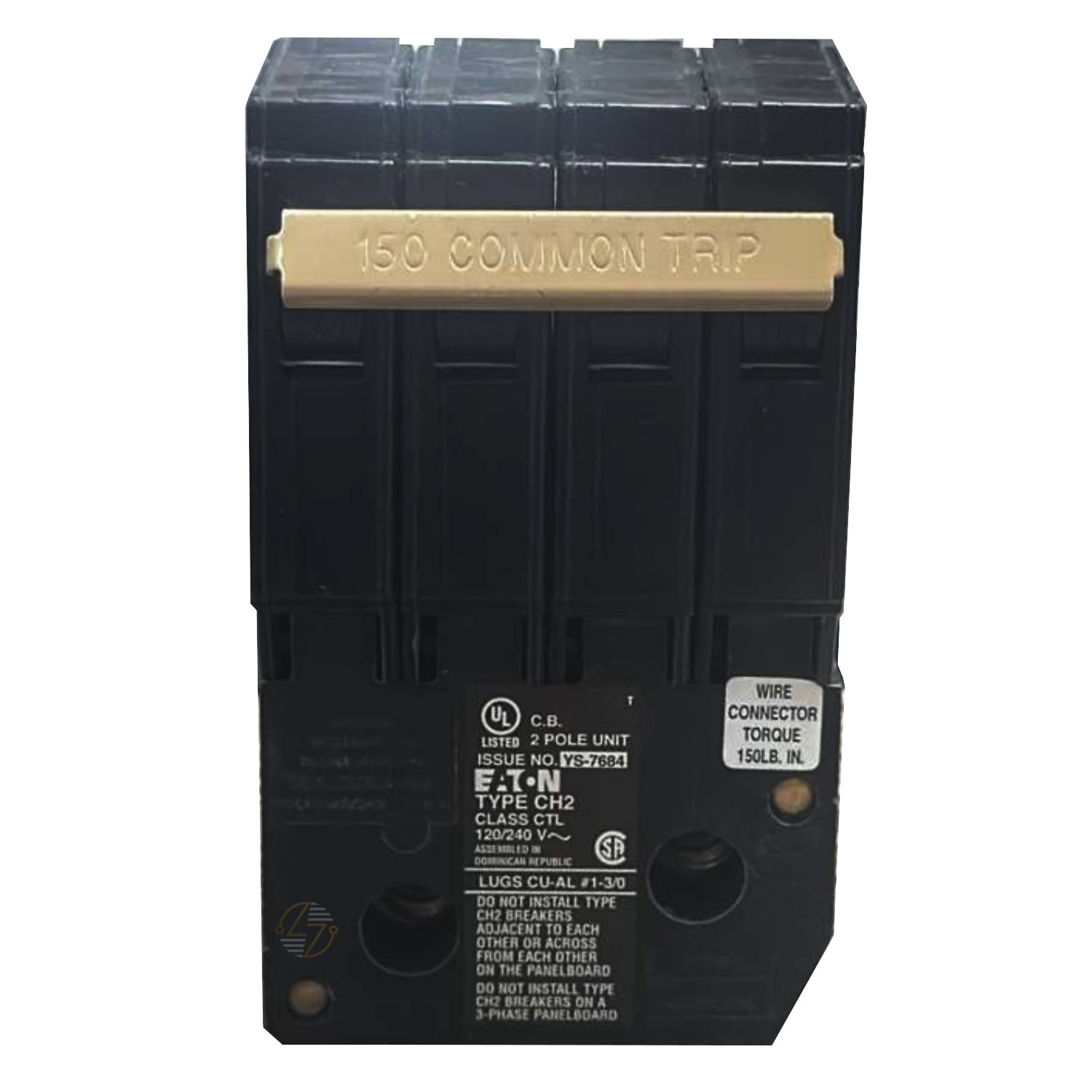

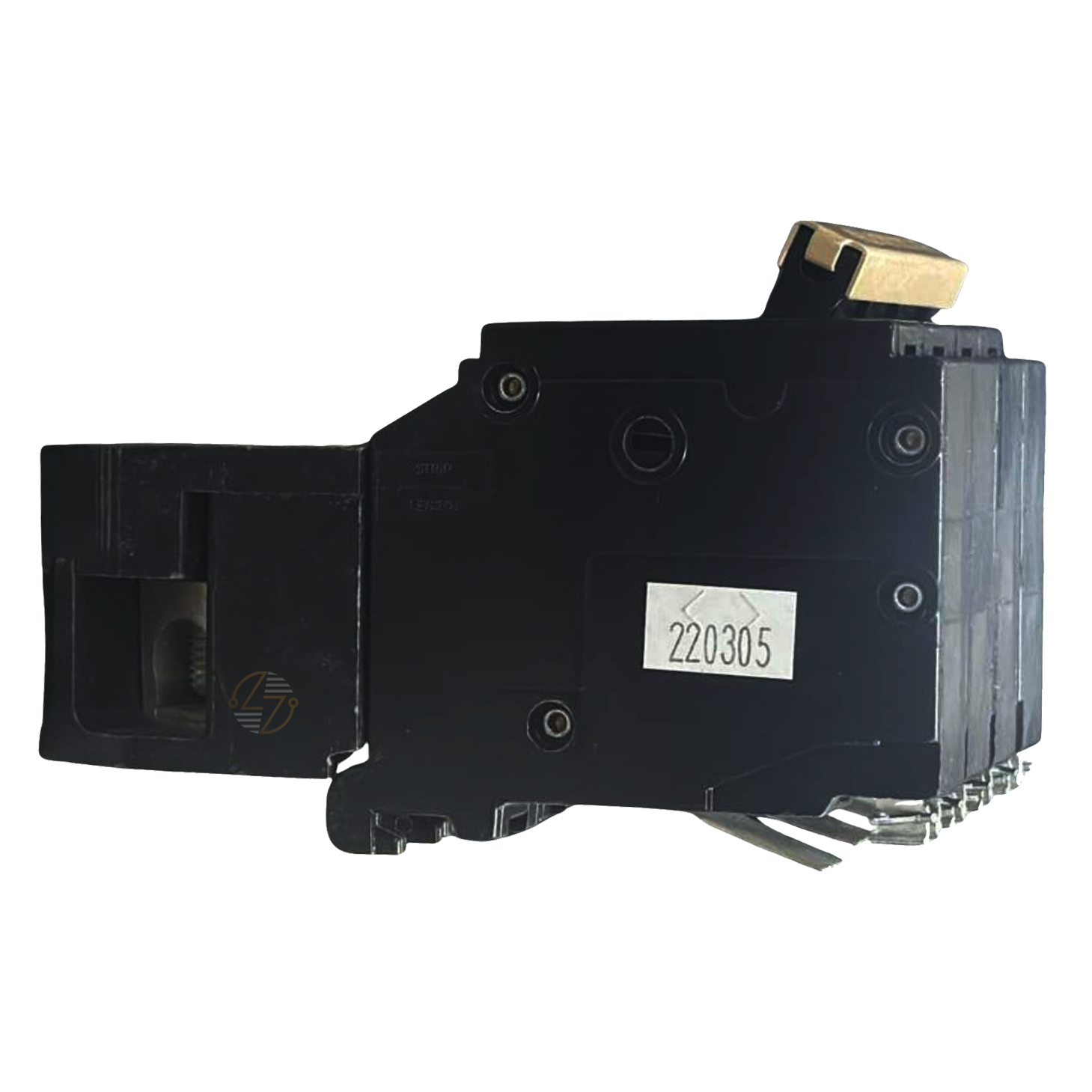

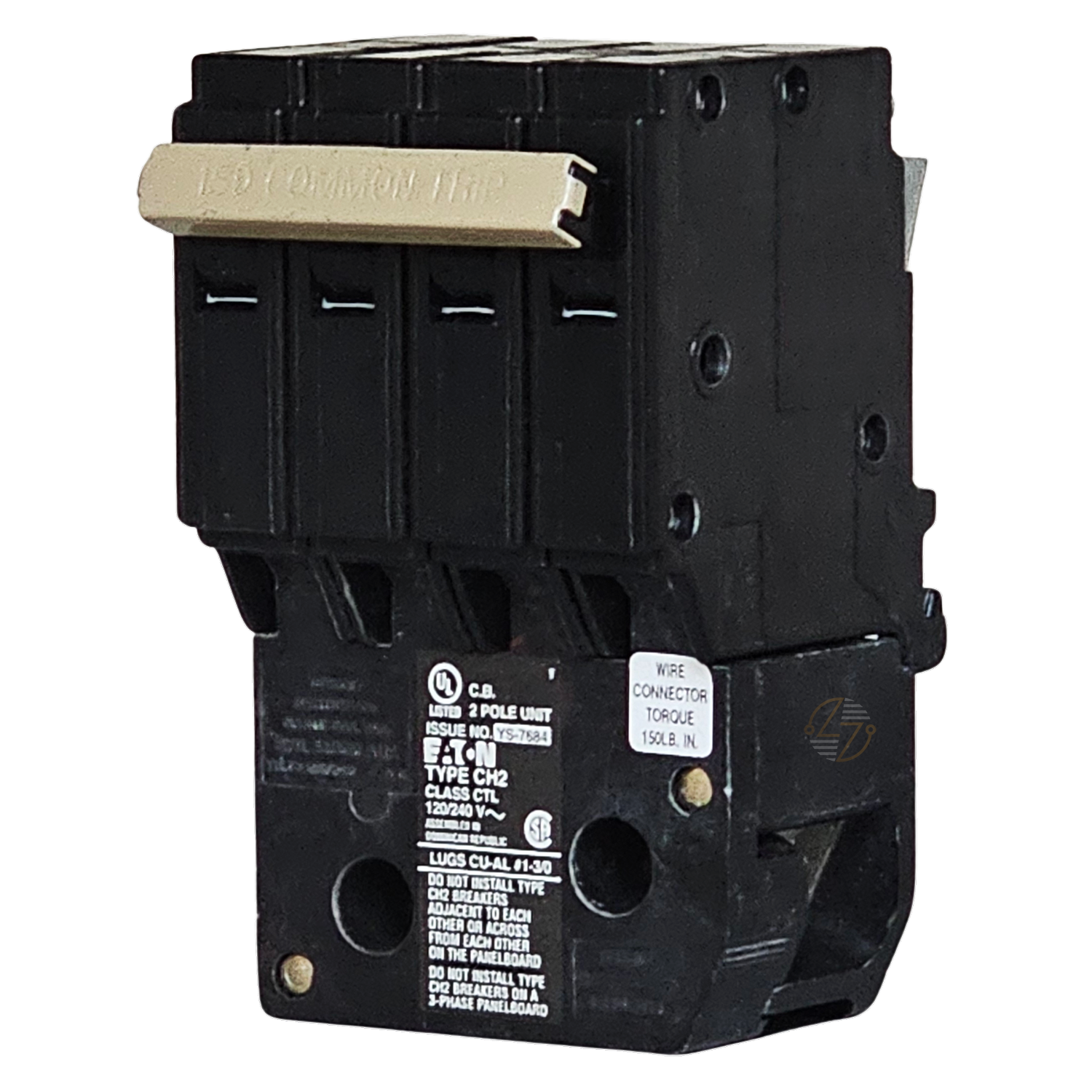

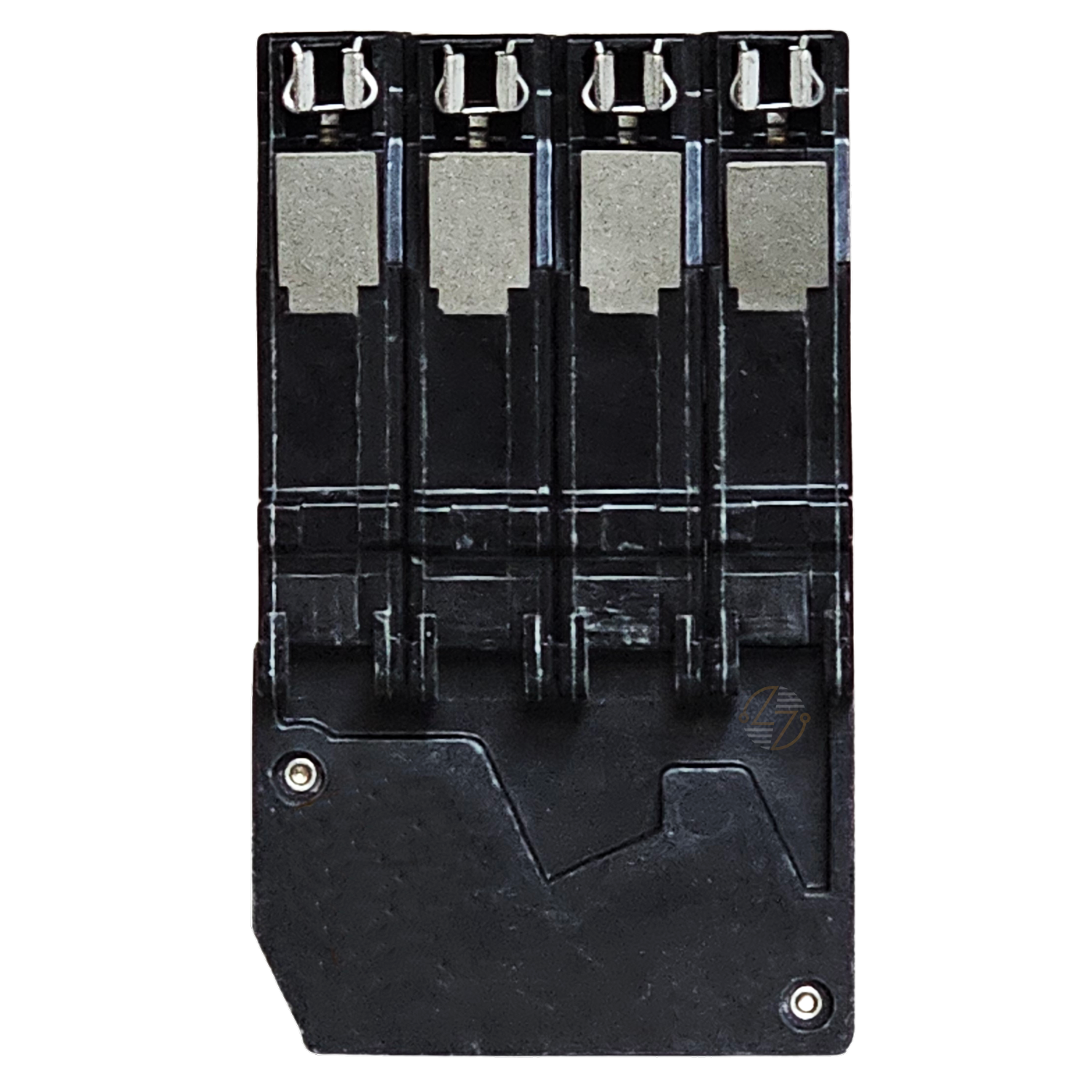

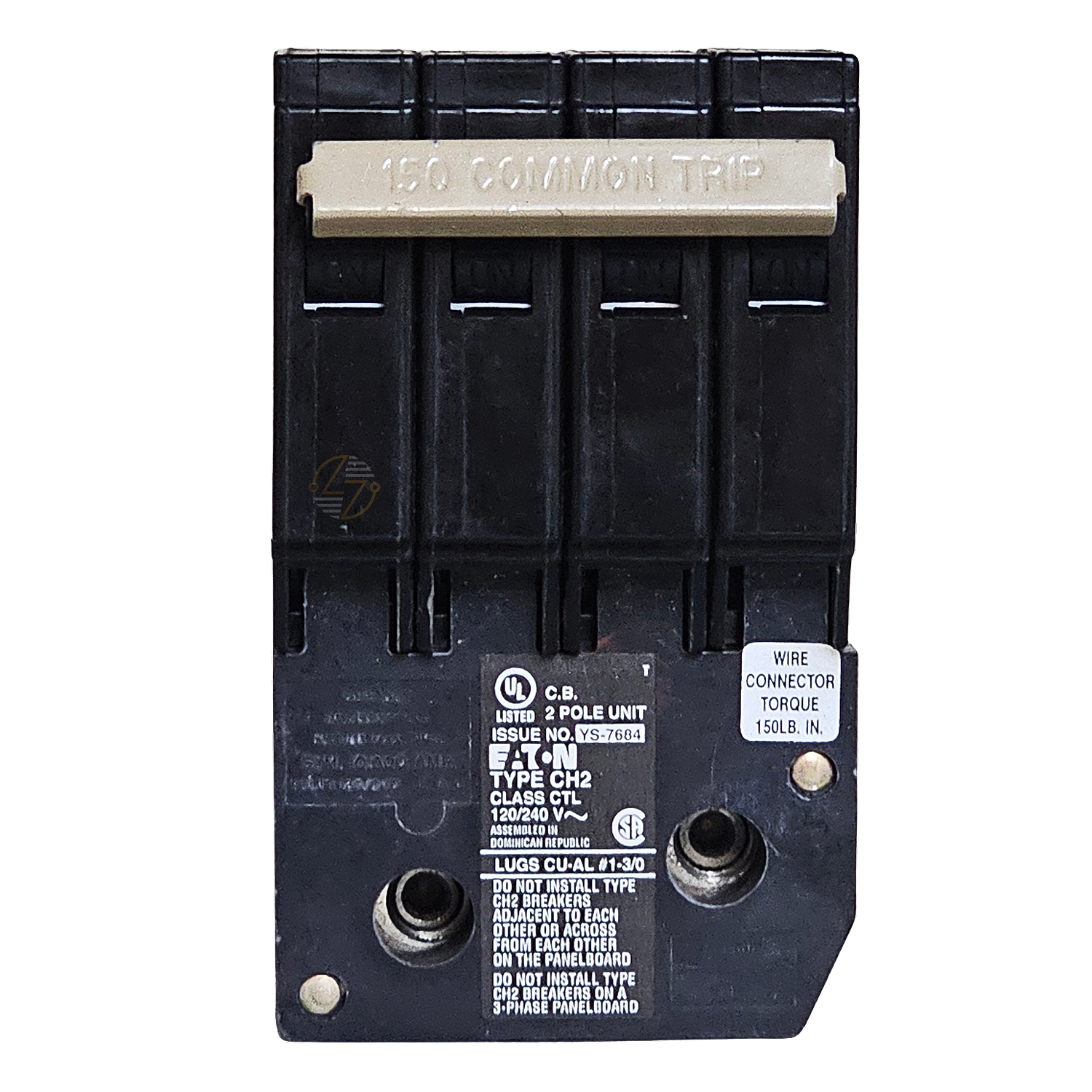

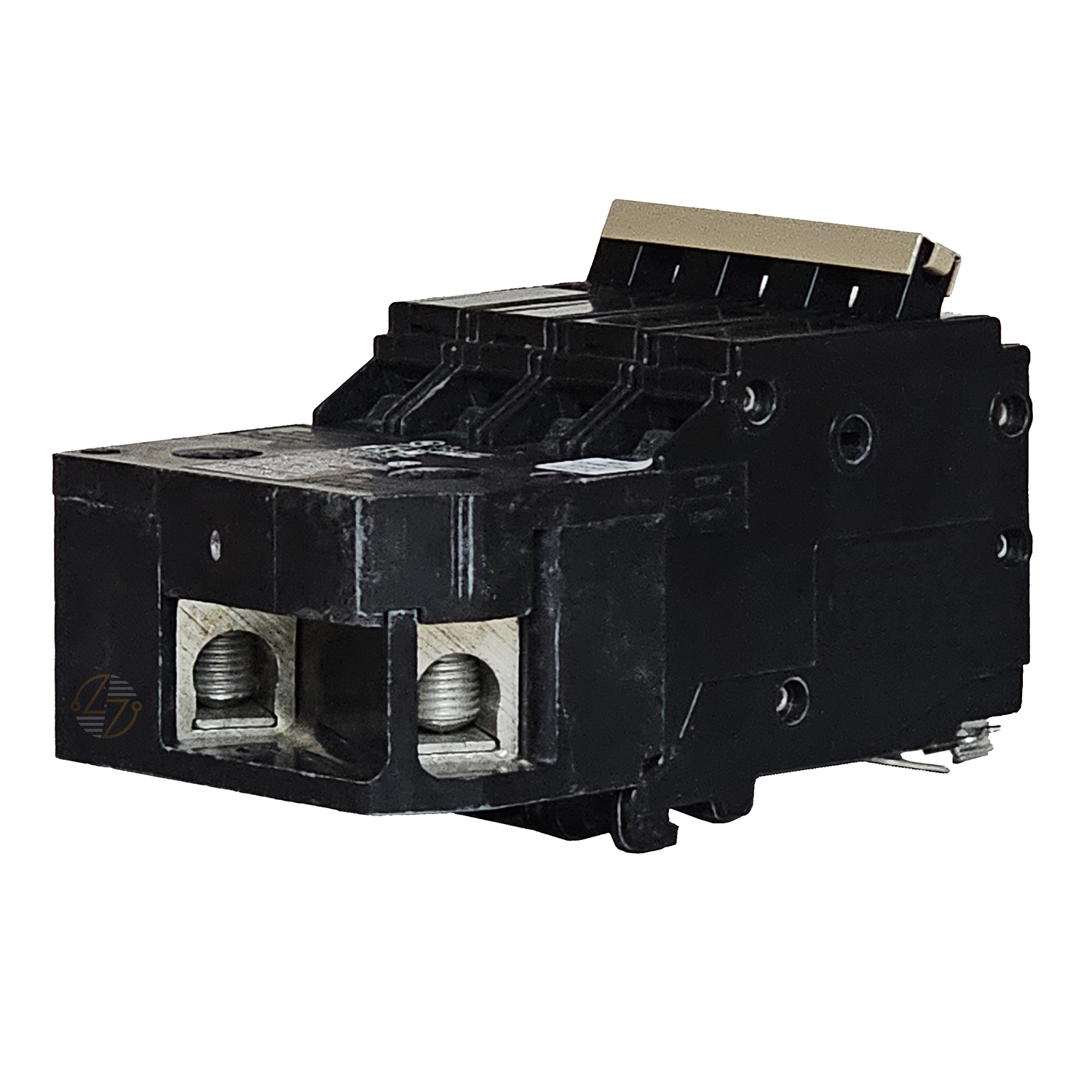

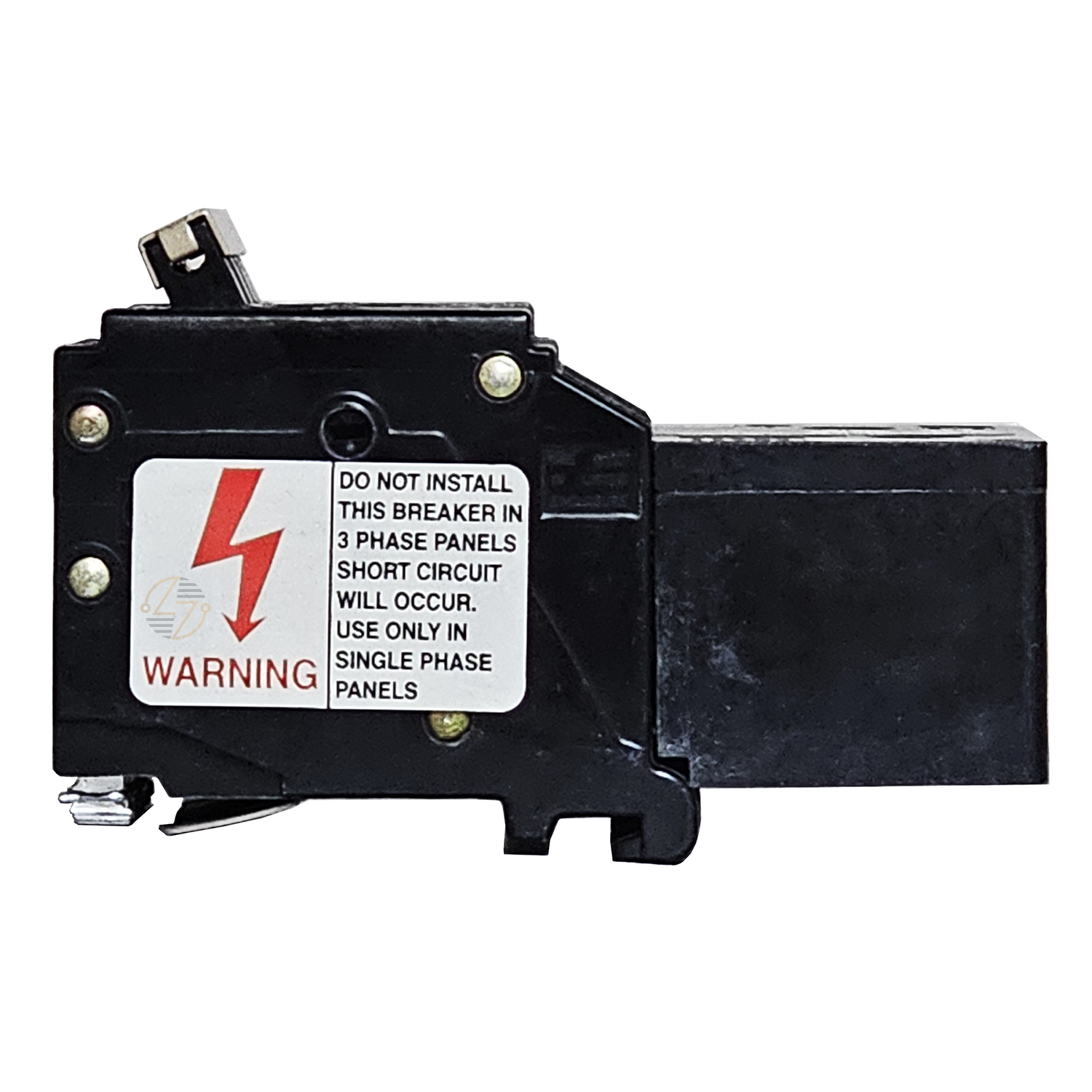

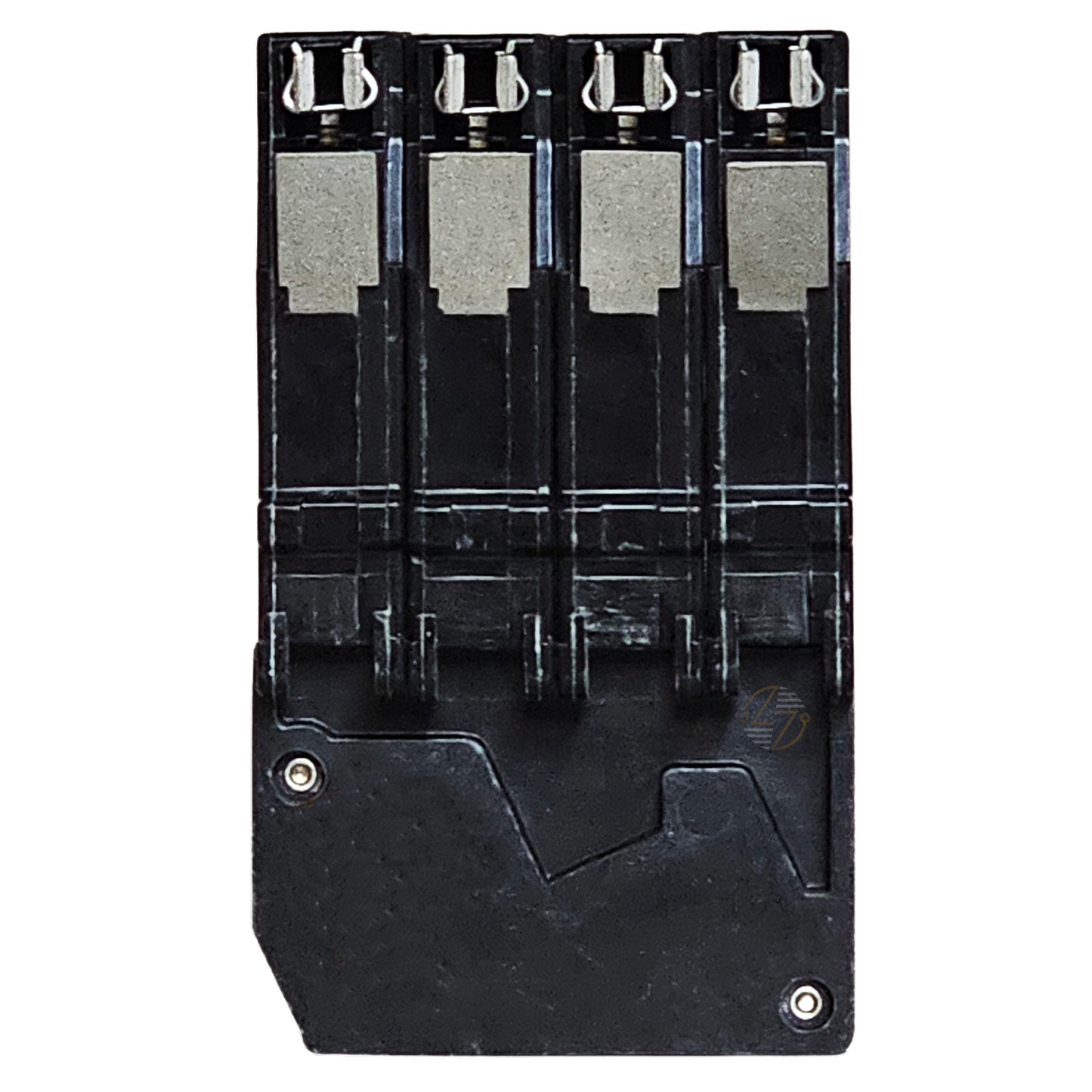

CH2150 - 150Amp Circuit Breaker

CH2150 - 150Amp Circuit Breaker

The CH2150 is a 150 Amp, 2-pole Type CH plug-on circuit breaker for use in compatible CH load centers and panelboards. It is rated for 120/240VAC and carries a 10kA interrupting rating. This breaker occupies four panel spaces and is typically used where a higher-amperage Type CH breaker is required.

When you're replacing a breaker, the details matter. Amp rating, pole configuration, mounting style, and panel compatibility all need to match the existing equipment. The CH2150 is intended for applications that require a 150 Amp Type CH plug-on breaker, making it a common replacement part for existing CH electrical systems.

Many electricians come across breakers like the CH2150 during panel maintenance, service work, and repairs. In those situations, finding the correct breaker is usually less about features and more about matching what's already there.

Key Features and Benefits

• 150 Amp current rating
• 2-pole configuration
• Type CH breaker design
• Plug-on mounting style
• Rated for 120/240VAC systems
• 10kA interrupting capacity
• Occupies 4 panel spaces
• Compatible with approved CH load centers and panelboards
• Frequently used for maintenance and replacement applications

Technical Specifications

• Part Number: CH2150

• Type: CH

• Poles: 2

• Amperage Rating: 150A

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting Style: Plug-On

• Space Requirement: 4 Spaces

• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D

• Approximate Shipping Weight: 2.10 lbs.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Intended for overcurrent protection in compatible electrical distribution equipment
• Designed for use in systems requiring a Type CH plug-on circuit breaker
• Manufactured to applicable industry standards for its intended use


Where It Works Best

The CH2150 is commonly found in residential, commercial, and light industrial electrical systems that use compatible Type CH load centers and panelboards.
