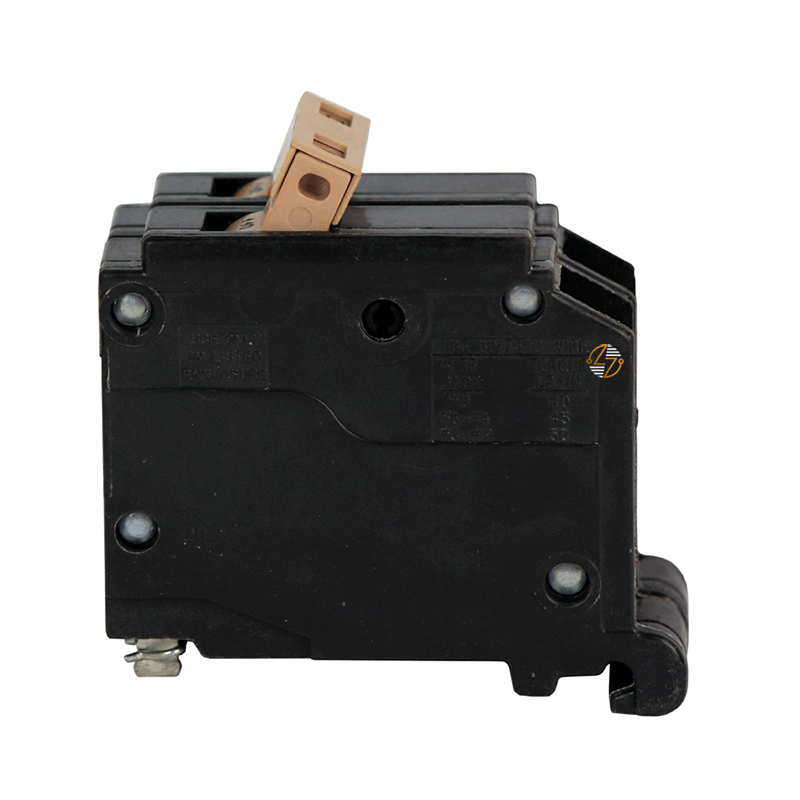

CH2125 - 125Amp Circuit Breaker

CH2125 - 125Amp Circuit Breaker

The CH2125 is a 125 Amp, 2-pole Type CH plug-on circuit breaker for use in compatible CH load centers and panelboards. It is rated for 120/240VAC applications and features a 10kA interrupting capacity. The plug-on design allows the breaker to install directly into approved equipment, making it a common choice for your replacement work, panel maintenance, and electrical service projects.

In many cases, the most important part of replacing a circuit breaker is matching what's already installed. The CH2125 is used where a 125 Amp Type CH breaker is required and where the panel is designed for a plug-on configuration. Electricians often encounter these breakers during panel repairs, equipment maintenance, and service upgrades in residential, commercial, and light industrial settings.

Although electrical systems change over time, many CH panels remain in service for years. When that's the case, having access to the correct breaker helps you keep the project moving without having to alter the existing panel layout or breaker arrangement. The CH2125 was built for this type of application and continues to be used in compatible systems requiring a 125 Amp, 2-pole breaker.

Key Features and Benefits

• 125 Amp current rating
• 2-pole configuration
• Type CH breaker design
• Plug-on mounting style
• Rated for 120/240VAC systems
• 10kA interrupting capacity
• Compatible with approved CH load centers and panelboards
• Commonly used for replacement and maintenance applications
• Compact footprint
• Built to provide years of service in properly maintained electrical systems


Technical Specifications

• Part Number: CH2125

• Type: CH

• Mounting Style: Plug-On

• Poles: 2

• Amperage Rating: 125A

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D

• Approximate Shipping Weight: 1.10 lbs.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Intended for overcurrent protection in compatible electrical distribution equipment
• Designed for use in systems requiring a Type CH plug-on circuit breaker
• Manufactured to applicable industry standards for its intended use


Where It Works Best

The CH2125 is commonly used in residential, commercial, and light industrial electrical systems that utilize compatible Type CH load centers and panelboards.
