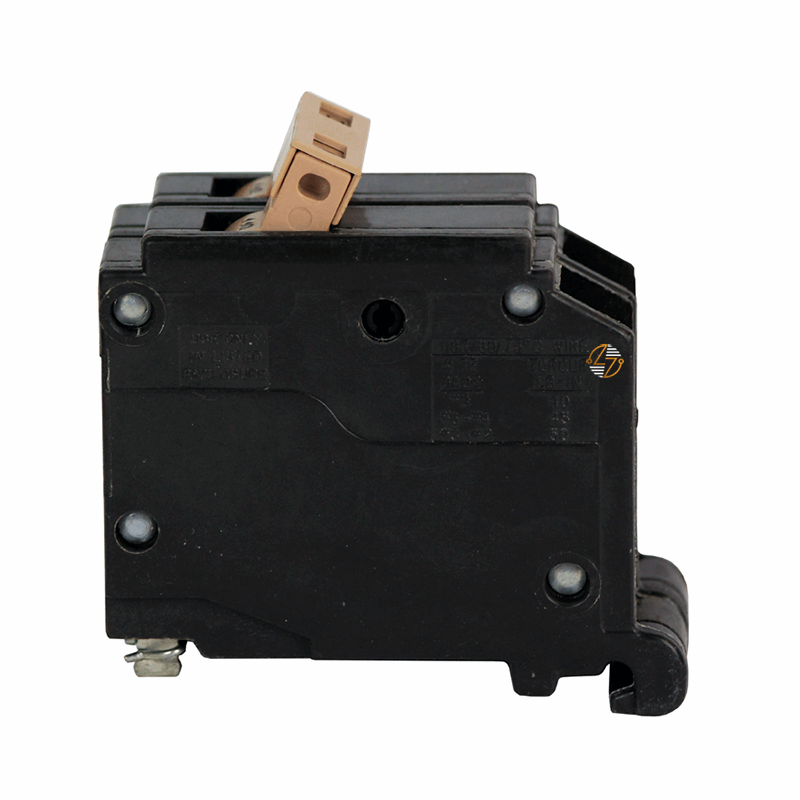

CH2100 **Tan Handle** - 100Amp Circuit Breaker

CH2100 **Tan Handle** - 100Amp Circuit Breaker

The CH2100 Old Style Main Breaker is a 100 Amp, 2-pole Type CH plug-on circuit breaker used in compatible load centers and panelboards requiring this breaker configuration. When you're replacing a main breaker in an existing panel, matching the correct type, amp rating, and mounting style is often the first priority. The CH2100 is intended for those applications where a Type CH plug-on breaker is specified.

Rated for 120/240VAC with a 10kA interrupting capacity, this breaker serves as a main disconnect and overcurrent protection device in compatible electrical systems.

Many electrical systems that use this style of breaker remain in operation today. In those situations, maintaining compatibility with the existing equipment is often the most practical approach. The CH2100 provides the form, fit, and electrical ratings required for applications that call for this specific Type CH main breaker configuration.

Key Features and Benefits

• 100 Amp current rating
• 2-pole design
• Type CH configuration
• Old Style main breaker
• Plug-on mounting style
• Rated for 120/240VAC systems
• 10kA interrupting capacity
• Suitable for compatible CH load centers and panelboards
• Commonly used for maintenance and replacement projects
• Built for long-term service in properly maintained electrical systems


Technical Specifications

• Part Number: CH2100

• Breaker Type: Main Breaker

• Type: CH

• Style: Old Style

• Mounting Style: Plug-On

• Poles: 2

• Amperage Rating: 100A

• Voltage Rating: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Height: 3.0 in.
• Width: 1.5 in.
• Depth: 2.5 in.
• Approximate Dimensions: 1.5"W x 3.0"L x 2.5"D

• Approximate Shipping Weight: 1.10 lbs.


Material Compliance and Certifications

• Molded case circuit breaker construction
• Designed for overcurrent protection in compatible electrical distribution equipment
• Intended for use in systems requiring a Type CH plug-on main breaker
• Manufactured to applicable industry standards for its intended application
• Verify compatibility with equipment specifications and local electrical codes before installation


Where It Works Best

The CH2100 Old Style Main Breaker is commonly used in residential, commercial, and light industrial electrical systems that utilize compatible Type CH load centers and panelboards. It is frequently installed during panel maintenance, repair work, and breaker replacement projects where a 100 Amp, 2-pole plug-on main breaker is required to match the existing equipment configuration.
