CH150 50A Circuit Breaker

CH150 50A Circuit Breaker

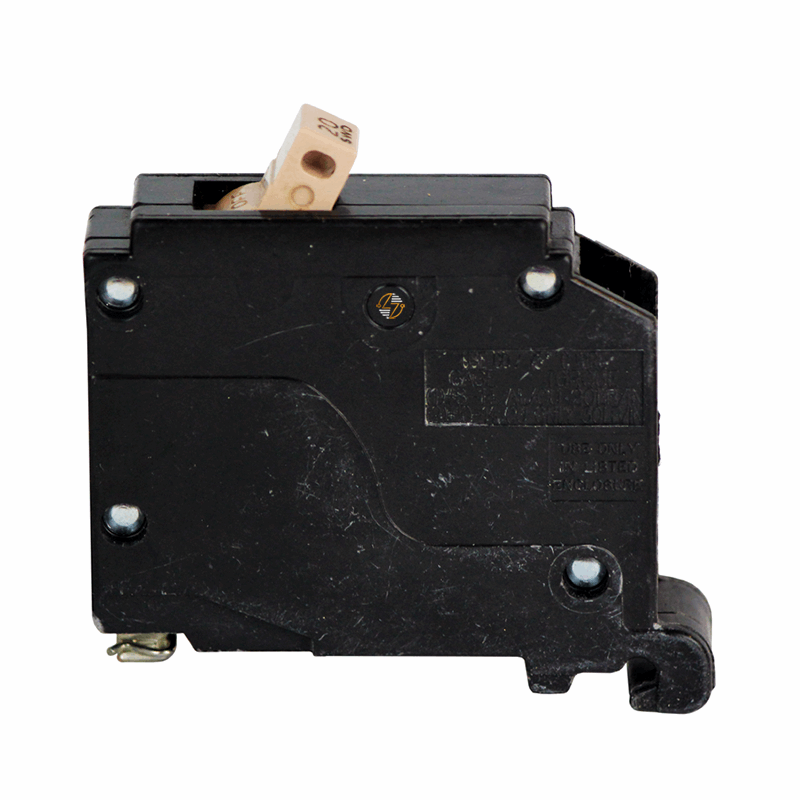

The Eaton CH150 is a robust and reliable thermal magnetic circuit breaker designed to meet the rigorous demands of modern electrical systems. Engineered for both residential and light commercial applications, this single-pole circuit breaker offers a seamless combination of safety, performance, and durability. With a 50-ampere rating and a voltage capacity of 120/240V, the CH150 ensures optimal protection against electrical faults, making it an essential component for any electrical setup.

Key Features and Benefits:

• High Interrupting Capacity: Boasting a 10 kAIC rating, the CH150 effectively safeguards electrical circuits from short circuits and overloads, reducing the risk of electrical fires and damage.
• Thermal Magnetic Protection: This circuit breaker features advanced thermal magnetic trip technology, providing reliable protection by automatically interrupting the flow of electricity during fault conditions.
• Trip Flag Indicator: The built-in trip flag provides a visual indication of a tripped breaker, simplifying troubleshooting and maintenance.
• Versatile Wiring Options: Supports both copper and aluminum wires with sizes (1) #14-8 AWG and (2) #14-10 AWG, offering flexibility in installation.

Technical Specifications:

• Type: CH
• Amperage Rating: 50 A
• Voltage Rating: 120V
• Interrupt Rating: 10 kAIC
• Number of Poles: Single-pole
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Dimensions: 0.75"W x 3.00"L x 2.50"D
• Weight: 0.60 lb

Material Compliance and Certifications:

• UL 489 Listed: Ensures compliance with national safety standards.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration equipment, providing versatile application options.
• Switching Duty Rated: Certified for frequent switching operations, making it ideal for various residential and light commercial uses.

Suitability:

• The Eaton CH150 circuit breaker is ideal for residential and light commercial applications, providing reliable protection for electrical circuits. Its compact design makes it a perfect fit for Eaton Type CH Loadcenters, ensuring ease of installation and maintenance. The CH150 is particularly suitable for use in HVAC systems, lighting circuits, and other critical electrical applications where safety and reliability are paramount.
