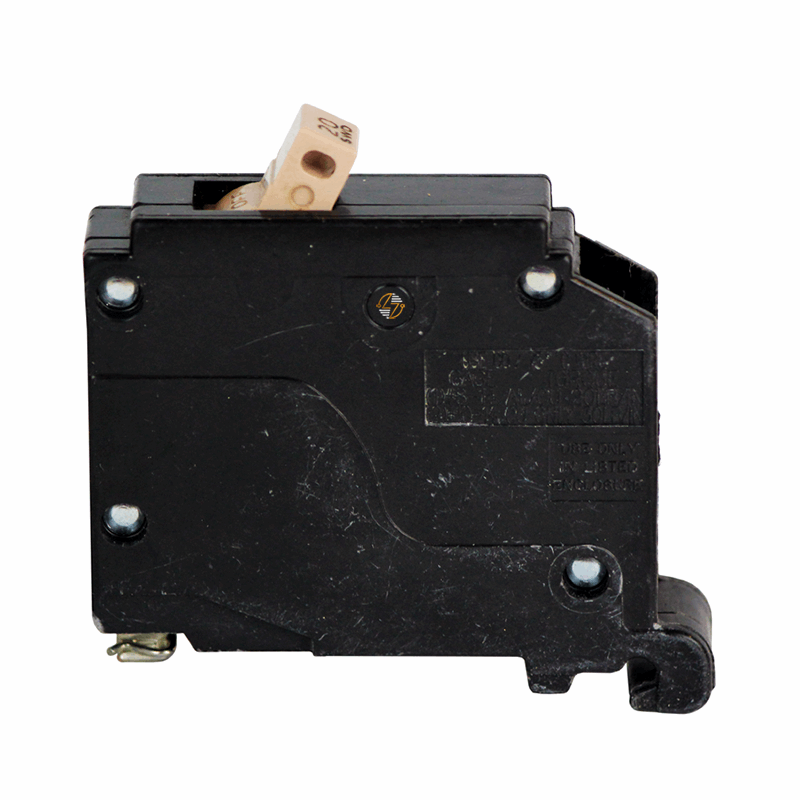

CH130 - 30Amp Circuit Breaker

CH130 - 30Amp Circuit Breaker

The CH130 is a 30 Amp, 1-pole Type CH circuit breaker designed for use in compatible CH load centers and panelboards. For many replacement projects, the goal is simple: find the breaker that matches what's already in the panel. That's where details like breaker type and mounting style matter. The CH130 features a plug-on design and is intended for applications where a Type CH breaker is required.

Whether you're replacing a breaker during routine maintenance or tracking down the correct part for an older installation, the CH130 is designed to provide the same form and fit expected from a Type CH breaker.

Key Features and Benefits

• 30 Amp current rating
• Single-pole circuit breaker
• Type CH configuration
• Plug-on mounting style
• Designed for compatible CH load centers and panelboards
• Helps protect branch circuits from overloads and short circuits
• Maintains original equipment form, fit, and function
• Compact size for designated breaker spaces


Technical Specifications

• Part Number: CH130

• Type: CH

• Poles: 1

• Amperage: 30 Amps

• Voltage Rating: 120 VAC

• A.I.C. Rating: 10kA @ 120VAC

• Mounting Style: Plug-On

• Width: 0.75 in.
• Height: 3.0 in.
• Depth: 2.50 in.
• Approximate Dimensions: 0.75"W × 3.0"H × 2.50"D

• Approximate Ship Weight: 0.60 lbs.


Material Compliance and Certifications

• The CH130 is intended for installation in compatible electrical equipment and should be installed in accordance with applicable electrical codes, manufacturer requirements, and local regulations.


Where It Works Best

The CH130 is commonly used in:

• Compatible CH load centers and panelboards
• Residential electrical systems
• Light commercial electrical installations
• 120-volt branch circuits requiring 30 Amp protection
• Electrical maintenance and repair projects
• Breaker replacement applications
• Existing installations where matching the original breaker type is important
• Facilities using Type CH electrical distribution equipment

For applications requiring a 30 Amp Type CH plug-on circuit breaker, the CH130 provides the configuration and ratings needed for use in compatible CH electrical systems while maintaining the original design of the installation.
