CH120 - 20Amp Circuit Breaker

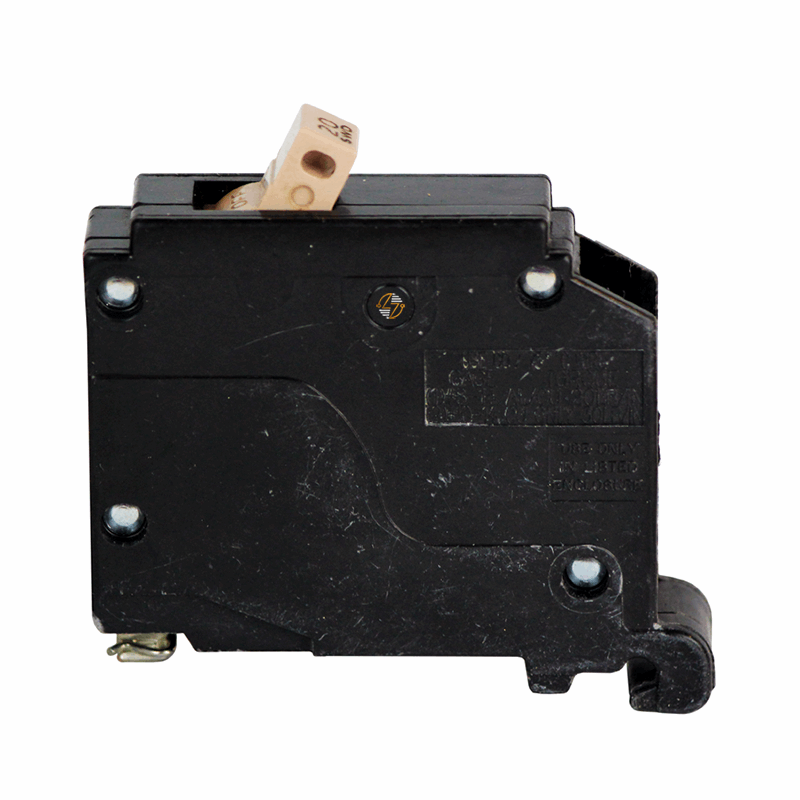

CH120 20 Amp 1-Pole Type CH Circuit Breaker

The CH120 is a 20 Amp, 1-pole Type CH circuit breaker designed for use in compatible CH load centers and panelboards. For many replacement projects, finding the correct breaker means matching more than just the amp rating. The breaker type, mounting style, and panel compatibility all matter. The CH120 is intended for applications that require a Type CH plug-on breaker and is commonly used on 120-volt branch circuits in residential and commercial electrical systems.

Whether you're replacing a breaker during routine maintenance or working on an existing panel, using the correct component helps preserve the original design of the equipment.

Many electrical panels remain in service for years, and replacement parts need to match the equipment they are being installed into. The CH120 was built for that purpose, providing the form, fit, and function required for compatible CH systems. Built to last, it continues to be a practical option for maintaining existing electrical distribution equipment.

Key Features and Benefits

• 20 Amp current rating
• Single-pole circuit breaker
• Type CH configuration
• Plug-on mounting style
• Designed for compatible CH load centers and panelboards
• Helps protect branch circuits from overloads and short circuits
• Compact size for designated breaker spaces
• Suitable for maintenance and replacement applications
• Maintains original equipment form, fit, and function


Technical Specifications

• Part Number: CH120

• Type: CH

• Poles: 1

• Amperage: 20 Amps

• Voltage Rating: 120 VAC

• Interrupting Capacity: 10kA @ 120VAC

• Mounting Style: Plug-On
• Width: 0.75 in.
• Height: 3.00 in.
• Depth: 2.50 in.
• Approximate Dimensions: 0.75"W × 3.00"H × 2.50"D

• Approximate Ship Weight: 0.60 lbs.


Material Compliance and Certifications

• The CH120 is intended for installation in compatible electrical equipment and should be installed in accordance with applicable electrical codes, manufacturer requirements, and local regulations.


Where It Works Best

The CH120 is commonly used in:

• Residential electrical panels
• Commercial electrical systems
• Compatible CH load centers and panelboards
• General-purpose branch circuits
• Lighting circuits
• Receptacle and outlet circuits
• Electrical maintenance and repair projects
• Panel upgrades and breaker replacement applications

For applications requiring a 20 Amp Type CH plug-on circuit breaker, the CH120 provides the configuration and ratings needed for use in compatible electrical equipment while maintaining the original design of the system.
