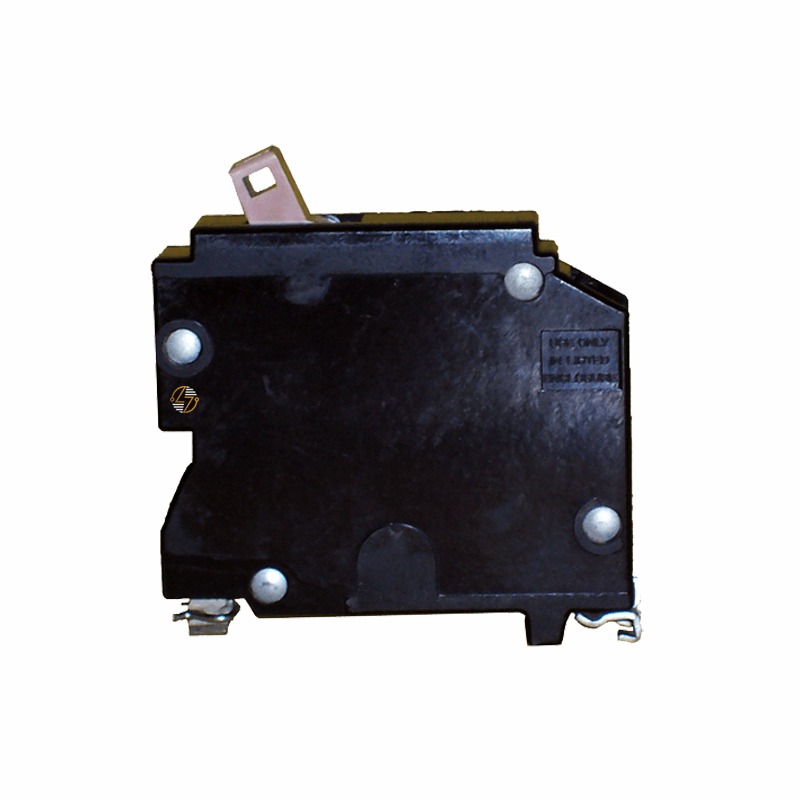

CH115 **Old Style Full Notch** - 15Amp Circuit Breaker

CH115 **Old Style Full Notch** - 15Amp Circuit Breaker

Finding the right replacement breaker can save a lot of time, especially when working on an older electrical system. The CH115 Old Style Full Notch is a 15 Amp, 1-pole circuit breaker built for applications that require this specific breaker style and configuration. When your panel compatibility is a priority, details like the notch style, pole configuration, and amp rating matter. This breaker is intended for those situations where maintaining the original equipment setup is important.

The CH115 is commonly used in existing electrical systems that were designed around the Old Style Full Notch format. Its single-pole design is used for individual branch circuits, and its compact size allows it to fit where this style of breaker was originally installed. For electricians, maintenance personnel, and facility managers, having the correct replacement part helps avoid unnecessary modifications and keeps projects moving.

Many electrical systems remain in service for decades, and replacement components play an important role in keeping them operating as intended.

Key Features and Benefits

• 15 Amp rating
• Single-pole configuration
• Old Style Full Notch design
• Intended for compatible electrical systems and panels
• Helps protect branch circuits from overload and short-circuit conditions
• Compact footprint
• Suitable for maintenance and replacement applications
• Maintains original equipment configuration
• Form, fit, and functional replacement solution


Technical Specifications

• Part Number: CH115

• Style: Old Style Full Notch

• Poles: 1

• Amperage: 15 Amps

• Dimensions:
  • Width: 0.75 in.
  • Height: 3.0 in.
  • Depth: 2.5 in.
• Approximate Dimensions: 0.75"W × 3.0"H × 2.5"D

• Approximate Ship Weight: 0.60 lbs.


Material Compliance and Certifications

• This circuit breaker is intended for installation in compatible electrical equipment and should be installed in accordance with applicable electrical codes and equipment requirements. Compatibility should always be confirmed before installation.


Where It Works Best

The CH115 Old Style Full Notch circuit breaker is commonly used in:

• Existing electrical distribution systems
• Legacy panel installations
• Residential electrical panels
• Commercial electrical equipment
• Branch circuit protection applications
• Electrical maintenance and repair projects
• Replacement applications requiring an Old Style Full Notch breaker
