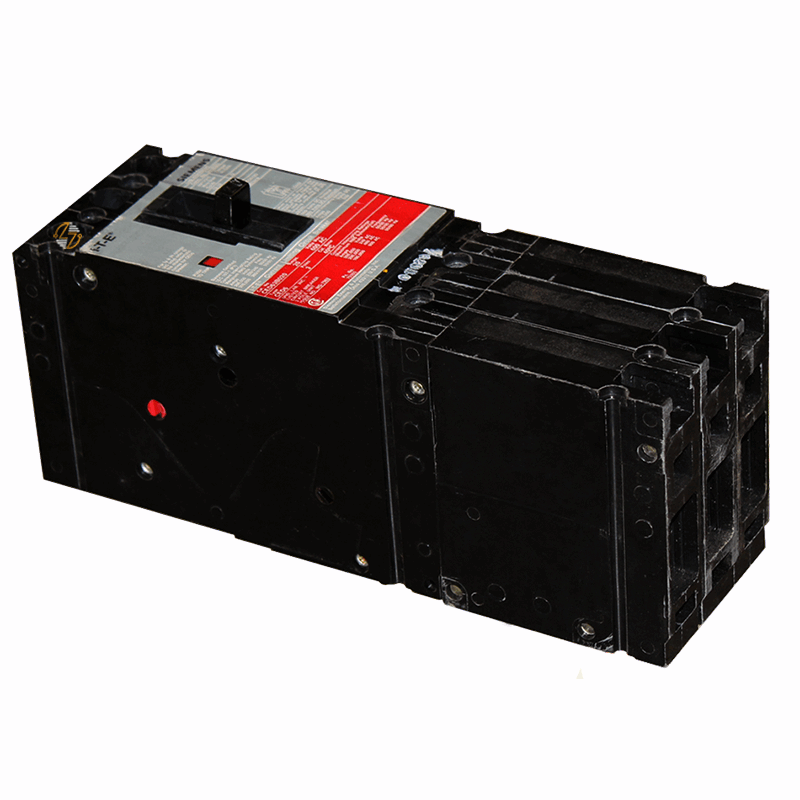

CED63B100L - 100Amp Circuit Breaker

CED63B100L - 100Amp Circuit Breaker

Enhance your electrical system's reliability and safety with the Siemens CED63B100L, a premium low voltage Sentron molded case circuit breaker designed for exceptional performance and protection. This robust 100A, 3-pole circuit breaker offers a thermal-magnetic trip unit, ensuring accurate and reliable operation under variable conditions. Constructed with a standard 40å¡C breaker ED frame, it delivers superior current limiting capability with a breaking capacity of 100kAIC at 600V and 200kAIC at 480V, making it a suitable choice for heavy-duty applications.

Key Features and Benefits:

• Thermal-Magnetic Protection: Provides dual-function trip mechanism, ensuring both temperature-based and instantaneous protection.
• High Breaking Capacity: Accommodates systems with higher fault levels, enhancing the safety and longevity of electrical equipment.
• Compact Design: Its space-efficient dimensions (3 x 9.58 x 3.92 inches) make it ideal for installation in tight spaces without compromising performance.
• Durability: Engineered for reliability and durability, meeting stringent UL 489 and IEC 60947-2 standards.

Technical Specifications:

• Frame Type: ED Frame
• Amperage: 100A
• Poles: 3
• Voltage Rating: Up to 600V
• Breaking Capacity: 100kAIC at 600V; 200kAIC at 480V
• Trip Unit: Thermal-Magnetic
• Wire Range: 10 - 1/0AWG (CU/AL)
• Lugs: Line and Load Side Lugs (LN1E100)

Material Compliance and Certifications:

• Certified compliance with UL 489 and IEC 60947-2 standards ensures that this circuit breaker meets global industry standards for safety and performance.

Suitability:

• Ideal for commercial and industrial installations where robust and reliable circuit protection is crucial. Its high interrupting capacity and adaptable design make it well-suited for environments with variable power demands and safety requirements.

Crafted with precision and backed by Siemens' rigorous quality standards, the CED63B100L is your go-to solution for effective circuit management and fault protection. Ensure the operational excellence and safety of your electrical installations with Siemens' trusted engineering.
