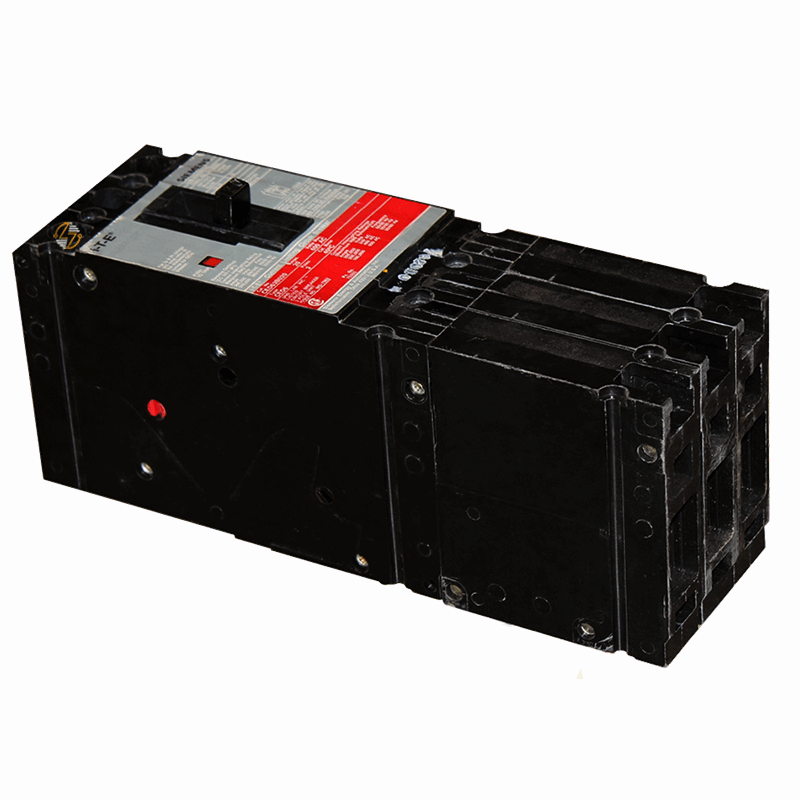

CED63B100 - 100Amp Circuit Breaker

CED63B100 - 100Amp Circuit Breaker

When a facility relies on a high-capacity electrical distribution system, having the correct circuit breaker in place is essential for maintaining safe and reliable operation. The CED63B100 is a 100 amp, 3-pole molded case circuit breaker designed for commercial and industrial applications that require substantial interrupting capacity and dependable circuit protection. Built as part of the CED6 series, this fuseless current-limiting breaker is commonly used in switchboards, panelboards, motor control equipment, and HVAC installations where matching existing equipment specifications is important.

With interrupting ratings of 200kA at both 240VAC and 480VAC, along with 100kA at 600VAC, the CED63B100 is well-suited for systems with high available fault current. Whether you're replacing an existing CED6 breaker or maintaining an established electrical distribution system, the CED63B100 provides the form, fit, and function needed for continued operation.

Key Features and Benefits

• 100 amp continuous current rating for commercial and industrial power distribution
• 3-pole design for three-phase electrical systems
• Fuseless current-limiting construction helps reduce the effects of fault currents
• High interrupting capacity for applications with elevated fault-current requirements
• Bolt-on mounting configuration for compatible installations
• Load-side terminals included
• HACR rated for heating, air conditioning, and refrigeration applications
• Suitable for reverse-feed applications where permitted by equipment design
• Designed for operation in ambient temperatures up to 40°C
• Built to last in demanding electrical environments
• Helps maintain compatibility with existing CED6 equipment

Technical Specifications

• Part Number: CED63B100

• Series/Type: CED6

• Circuit Breaker Type: Molded Case Circuit Breaker

• Amperage Rating: 100A

• Number of Poles: 3

• Mounting Style: Bolt-On

• Current Limiting: Yes

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Included Accessories: Load-Side Terminals

• Ambient Temperature Rating: 40°C

• Interrupting Capacity (A.I.C.)
  • 200kA @ 240VAC
  • 200kA @ 480VAC
  • 100kA @ 600VAC
• Width: 3.00 in.
• Height: 9.58 in.
• Depth: 3.92 in.
• Approximate Dimensions: 3.00"W × 9.58"H × 3.92"D

• Approximate Shipping Weight: 8.00 lbs.


Material Compliance and Certifications

• HACR Rated
• Fuseless Current-Limiting Molded Case Circuit Breaker
• Suitable for commercial and industrial electrical distribution applications
• Designed for installations requiring high interrupting capacity ratings
• Intended for use in accordance with applicable electrical codes and equipment requirements
• Compatibility should be verified prior to installation

Where It Works Best

The CED63B100 is commonly found in manufacturing facilities, commercial buildings, warehouses, institutional properties, HVAC systems, motor control centers, switchboards, and panelboard applications. It is particularly useful where existing equipment requires a 100 amp, 3-pole CED6 circuit breaker with high interrupting ratings.
