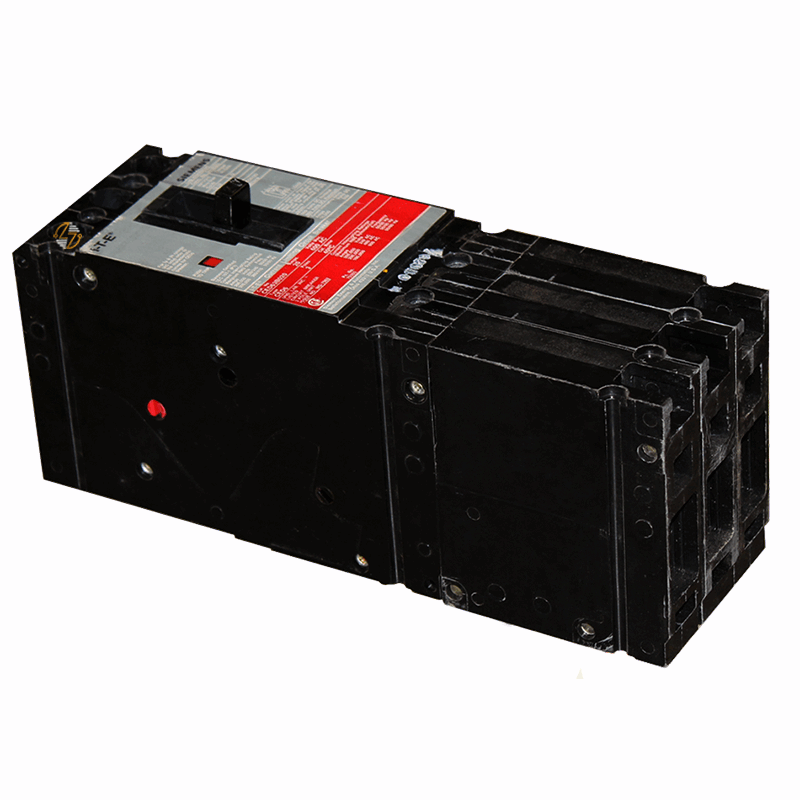

CED63B080 - 80Amp Circuit Breaker

CED63B080 - 80Amp Circuit Breaker

For the Siemens Sentron Series Molded Case Circuit Breaker, model CED63B080, ensure operational reliability and safety in low-voltage power distribution systems. This 3-pole, 80A circuit breaker is expertly engineered with a thermal-magnetic trip unit to protect against overloads and short circuits, making it a critical component for industrial applications. Its robust ED frame operates optimally at a standard 40å¡C and offers a current-limiting capacity that enhances performance efficiency.

Key Features and Benefits:

• High Interrupting Capacity: With an exceptional ability to handle 100kAIC at 600V and 200kAIC at 480V, this breaker provides superior protection in environments where potential fault current can be high.
• Thermal-Magnetic Protection: The integrated thermal-magnetic trip unit ensures precise protection by responding to both thermal (overload) and magnetic (short circuit) conditions.
• Compact Design: The breaker's dimensions (W 3" x H 9.58" x D 3.92") allow for efficient use of panel space, which is essential in crowded control panels and equipment.

Technical Specifications:

• Frame Type: ED
• Poles: 3
• Ampere Rating: 80A
• Voltage Rating: Up to 600V
• Interrupting Capacity: 100kAIC at 600V; 200kAIC at 480V
• Wire Range: 10 - 1/0AWG (CU/AL)
• Special Features: Load lugs only (LN1E100)

Material Compliance and Certifications:

• This product meets stringent quality standards, including UL 489 and IEC 60947-2, ensuring it is compliant with both North American and international safety regulations.

Suitability:

• Perfect for use in commercial and industrial electrical distribution systems: where reliable performance and safety are non-negotiable.

With its state-of-the-art design and compliance with the highest safety standards, the Siemens Sentron Series Molded Case Circuit Breaker CED63B080 is an essential safeguard for your electrical systems, ensuring peace of mind with uninterrupted service and protection.
