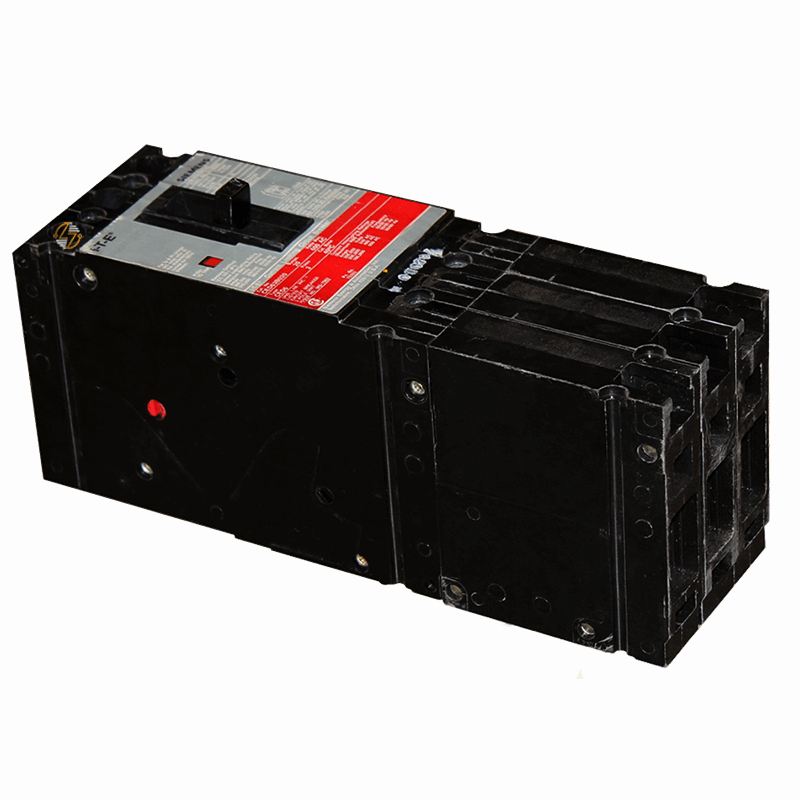

CED63B070 - 70Amp Circuit Breaker

CED63B070 - 70Amp Circuit Breaker

The CED63B070 is a 70 amp, 3-pole molded case circuit breaker used in a wide range of commercial and industrial electrical systems. As part of the CED6 series, it is designed to help protect circuits and equipment from overloads and short circuits while meeting the requirements of applications where high fault-current ratings are necessary.

This breaker features a fuseless current-limiting design and interrupting ratings of 200kA at both 240VAC and 480VAC, along with 100kA at 600VAC. Those ratings make it a common choice for power distribution equipment, switchboards, panelboards, and motor control applications where system protection is a key consideration.

Whether you're replacing an existing breaker during routine maintenance or matching the specifications of installed equipment, this breaker offers the form, fit, and function needed for compatible CED6 applications. Built to last, it remains a practical solution for keeping existing electrical systems operating as intended.

Key Features and Benefits

• 70 amp continuous current rating
• 3-pole configuration for three-phase systems
• CED6 series molded case circuit breaker
• Fuseless current-limiting design
• Bolt-on mounting style
• Includes load-side terminals
• HACR rated
• Suitable for reverse-feed applications
• Rated for operation in 40°C ambient environments
• Helps protect equipment from overload and short-circuit conditions
• Designed for compatibility with applicable CED6 installations

Technical Specifications

• Part Number: CED63B070

• Type: CED6

• Circuit Breaker Type: Molded Case Circuit Breaker

• Amperage: 70A

• Poles: 3

• Mounting Style: Bolt-On

• Current Limiting: Yes

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Included Terminals: Load-Side Terminals

• Ambient Temperature Rating: 40°C

• Interrupting Ratings:
  • 200kA @ 240VAC
  • 200kA @ 480VAC
  • 100kA @ 600VAC

• Width: 3.00 in.
• Height: 9.58 in.
• Depth: 3.92 in.
• Approximate Dimensions: 3.00"W × 9.58"H × 3.92"D
• Approximate Shipping Weight: 8.00 lbs.

Material Compliance and Certifications

• HACR Rated
• Fuseless Current-Limiting Molded Case Circuit Breaker
• Intended for use in commercial and industrial electrical distribution systems
• Install and operate in accordance with applicable electrical codes and equipment requirements
• Verify compatibility before installation

Where It Works Best

The CED63B070 is commonly used in commercial buildings, manufacturing facilities, industrial plants, schools, healthcare facilities, and other properties that rely on three-phase power distribution systems. It is often found in switchboards, panelboards, motor control equipment, and HVAC systems where a 70 amp, 3-pole breaker with high interrupting capacity is required.
