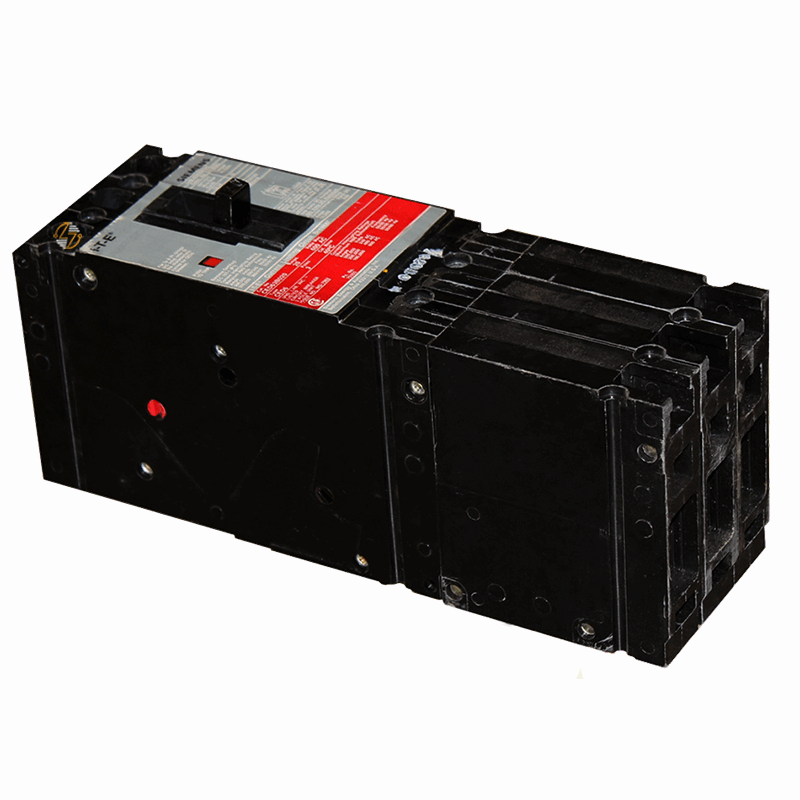

CED63B060L - 60Amp Circuit Breaker

CED63B060L - 60Amp Circuit Breaker

The CED63B060L is a 60 amp, 3-pole molded case circuit breaker from the CED6 series. It is used in commercial and industrial electrical systems to protect equipment and circuits from overloads and short circuits. With a current-limiting design and high interrupting capacity, this breaker is commonly found in power distribution equipment where fault-current protection is a critical requirement.

Rated for up to 200kA at both 240VAC and 480VAC, the CED63B060L is built for applications where available fault current levels can be substantial. The breaker is HACR rated, making it suitable for HVAC and refrigeration equipment, and it can be used in reverse-feed applications when required. Line- and load-side terminals are included, helping simplify replacement and installation in compatible systems.

Whether you're replacing an existing breaker during maintenance or matching specifications in an established electrical system, the CED63B060L offers the form, fit, and function required for compatible CED6 applications. Built to last, it continues to be a practical choice for electrical contractors, maintenance teams, and facility operators who need dependable circuit protection in demanding environments.

Key Features and Benefits

• 60 amp continuous current rating
• 3-pole configuration for three-phase electrical systems
• CED6 series molded case circuit breaker
• Fuseless current-limiting design
• Interrupting ratings of:
  • 200kA @ 240VAC
  • 200kA @ 480VAC
  • 100kA @ 600VAC
• HACR rated for HVAC and refrigeration applications
• Suitable for reverse-feed installations
• Includes line- and load-side terminals
• Rated for operation in 40°C ambient temperatures
• Compact footprint for commercial and industrial equipment
• Helps protect circuits and equipment from overload and short-circuit conditions

Technical Specifications

• Part Number: CED63B060L

• Type: CED6

• Poles: 3

• Amperes: 60A

• Voltage & Interrupting Rating: 200kA @ 240VAC; 200kA @ 480VAC; 100kA @ 600VAC

• Current Limiting: Yes

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Included Terminals: Line and Load Side

• Ambient Temperature Rating: 40°C
• Width: 3.00 in.
• Height: 9.58 in.
• Depth: 3.92 in.
• Approximate Dimensions: 3.00"W × 9.58"H × 3.92"D

• Approximate Shipping Weight: 8.00 lbs


Material Compliance and Certifications

• HACR rated
• Current-limiting molded case circuit breaker construction
• Intended for use in commercial and industrial electrical distribution systems
• Verify compliance with local codes and application requirements before installation

Where It Works Best

The CED63B060L is commonly used in switchboards, panelboards, industrial control equipment, manufacturing facilities, commercial buildings, and power distribution systems that require a 60 amp, 3-pole circuit breaker with high interrupting capacity. It is also frequently used in HVAC and refrigeration applications where HACR-rated protection is specified. For facilities maintaining existing CED6 equipment, this breaker is often selected as a direct replacement when matching the original electrical ratings and configuration is important.
