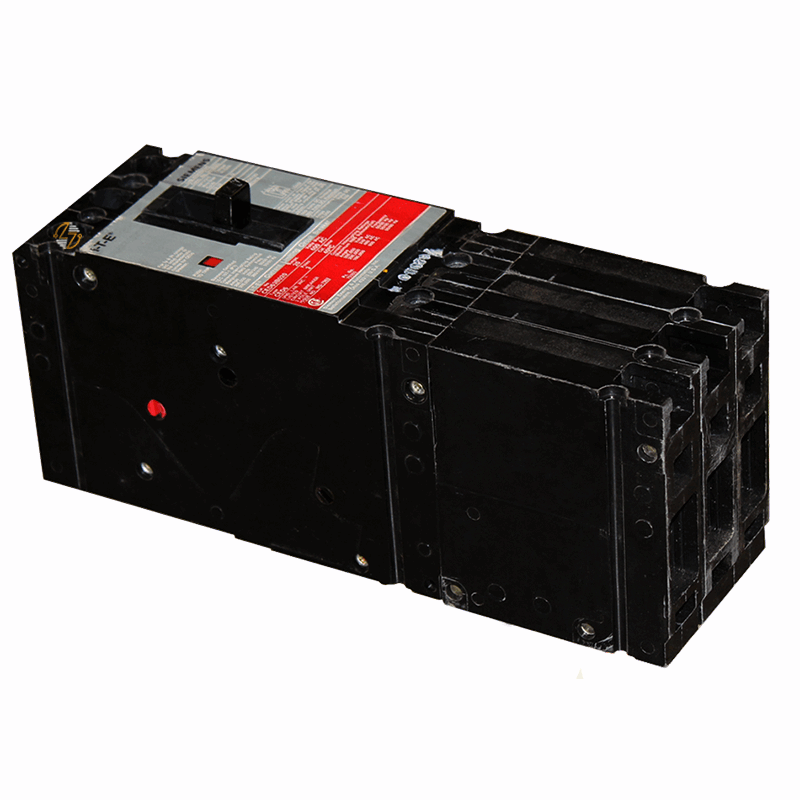

CED63B060 - 60Amp Circuit Breaker

CED63B060 - 60Amp Circuit Breaker

The CED63B060 is a 60 amp, 3-pole CED6 fuseless current limiting molded case circuit breaker used in compatible commercial and industrial electrical equipment. When replacing a breaker, matching the original amperage, pole configuration, and interrupting ratings is usually one of the first things that needs to be checked. This model is intended for applications requiring a 60-amp, 3-pole CED6 breaker with the ratings listed below.

The breaker features a bolt-on mounting design, includes load-side terminals, and is suitable for reverse-feed applications when installed according to equipment requirements. With interrupting ratings of 200kA at 240VAC and 480VAC and 100kA at 600VAC, it is commonly used in electrical distribution systems where those ratings are specified.

The CED63B060 is also HACR rated and approved for operation in ambient temperatures up to 40°C (104°F). You'll often find breakers with these specifications in manufacturing facilities, commercial buildings, schools, healthcare campuses, and HVAC-related installations utilizing compatible CED6 equipment. Built to last, this breaker helps maintain the original ratings and configuration of the equipment it serves.

Key Features and Benefits

• 60 amp current rating
• 3-pole configuration
• CED6 fuseless current limiting molded case circuit breaker
• Bolt-on mounting design
• Includes load-side terminals
• Suitable for reverse-feed applications
• HACR rated for HVAC and refrigeration equipment
• Designed for operation in ambient temperatures up to 40°C (104°F)
• 200kA interrupting rating at 240VAC
• 200kA interrupting rating at 480VAC
• 100kA interrupting rating at 600VAC
• Matches the ratings and configuration required for compatible CED6 installations
• Built to last in properly maintained electrical equipment

Technical Specifications

• Part Number: CED63B060

• Type: CED6

• Amperage: 60 Amps

• Poles: 3

• Breaker Style: Fuseless Current Limiting Molded Case Circuit Breaker

• Mounting Style: Bolt-On

• A.I.C. Rating @ 240VAC: 200kA

• A.I.C. Rating @ 480VAC: 200kA

• A.I.C. Rating @ 600VAC: 100kA

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Ambient Temperature Rating: 40°C (104°F)

• Approximate Weight: 8.00 lbs

• Dimensions:
  • Width: 3.00" W
  • Height: 9.58" H
  • Depth: 3.92" D
• Included: Load-side terminals


Material Compliance and Certifications

• HACR Rated
• Designed for use in applications requiring a current limiting molded case circuit breaker with the ratings listed above
• Designed for use in compatible CED6 equipment
• Rated for operation in ambient temperatures up to 40°C (104°F)
• Installation should be performed in accordance with applicable electrical codes and equipment manufacturer requirements
• Compatibility should always be verified prior to installation

Where It Works Best

The CED63B060 is commonly used in commercial and industrial power distribution systems that require a 60 amp, 3-pole current limiting circuit breaker and may be found in:

• Commercial office buildings
• Industrial facilities
• Manufacturing plants
• Healthcare facilities
• Educational campuses
• HVAC equipment installations
• Motor control centers
• Switchboards
• Panelboards
• Feeder circuit applications
