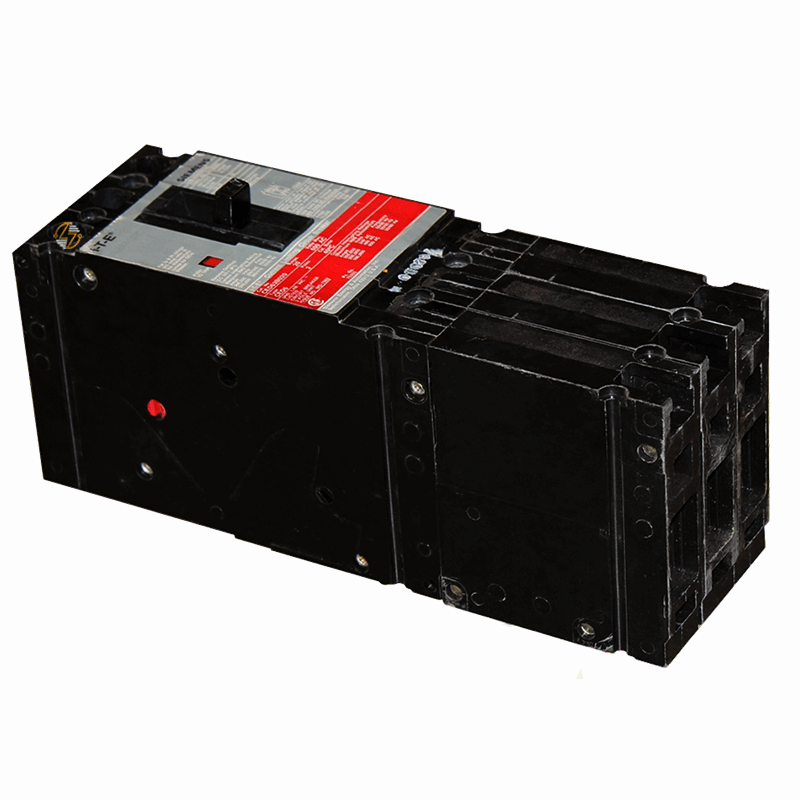

CED63B050 - 50Amp Circuit Breaker

CED63B050 - 50Amp Circuit Breaker

When your electrical system calls for a 50 amp, 3-pole CED6 circuit breaker, having the correct ratings and configuration matters. The CED63B050 is a fuseless current limiting molded case circuit breaker designed for use in compatible commercial and industrial power distribution equipment where dependable circuit protection is required.

The CED63B050 is HACR rated, making it suitable for many heating, air conditioning, and refrigeration applications. It is also suitable for reverse-feed installations when used according to equipment specifications. With interrupting ratings of 200kA at 240VAC and 480VAC and 100kA at 600VAC, this breaker is commonly specified for electrical systems where high fault-current capacity is required.

Whether you're maintaining an existing facility, replacing a failed breaker, or keeping critical equipment operating as intended, the CED63B050 helps preserve the original electrical design of compatible systems. Built to last, it remains a practical solution for commercial, industrial, institutional, and HVAC-related applications that require a 50 amp 3-pole CED6 molded case circuit breaker.

Key Features and Benefits

• 50 amp current rating
• 3-pole configuration
• CED6 fuseless current limiting molded case circuit breaker
• Bolt-on mounting design
• Includes load-side terminals
• Suitable for reverse-feed applications
• HACR rated for HVAC and refrigeration equipment
• Designed for operation in ambient temperatures up to 40°C (104°F)
• 200kA interrupting rating at 240VAC
• 200kA interrupting rating at 480VAC
• 100kA interrupting rating at 600VAC
• Helps maintain original equipment ratings and configuration
• Built to last in properly maintained electrical systems

Technical Specifications

• Part Number: CED63B050

• Type: CED6

• Amperage: 50 Amps

• Poles: 3

• Breaker Type: Fuseless Current Limiting Molded Case Circuit Breaker

• Mounting Style: Bolt-On

• A.I.C. Rating @ 240VAC: 200kA

• A.I.C. Rating @ 480VAC: 200kA

• A.I.C. Rating @ 600VAC: 100kA

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Load-Side Terminals: Included

• Ambient Temperature Rating: 40°C (104°F)

• Approximate Weight: 8.00 lbs

• Dimensions:
  • Width: 3.00"
  • Height: 9.58"
  • Depth: 3.92"

Material Compliance and Certifications

• HACR Rated
• Manufactured for applications requiring a current limiting molded case circuit breaker with the ratings listed above
• Suitable for use where equipment specifications call for a compatible CED6 breaker
• Installation should comply with applicable electrical codes and equipment requirements
• Compatibility with the intended equipment should always be verified before installation

Where It Works Best

The CED63B050 is commonly used in electrical distribution systems that require a 50-amp, 3-pole current limiting circuit breaker and may be found in:

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Healthcare facilities
• Educational campuses
• HVAC equipment installations
• Motor control centers
• Panelboards
• Switchboards
• Feeder circuit applications
