CED63B040 - 40Amp Circuit Breaker

CED63B040 - 40Amp Circuit Breaker

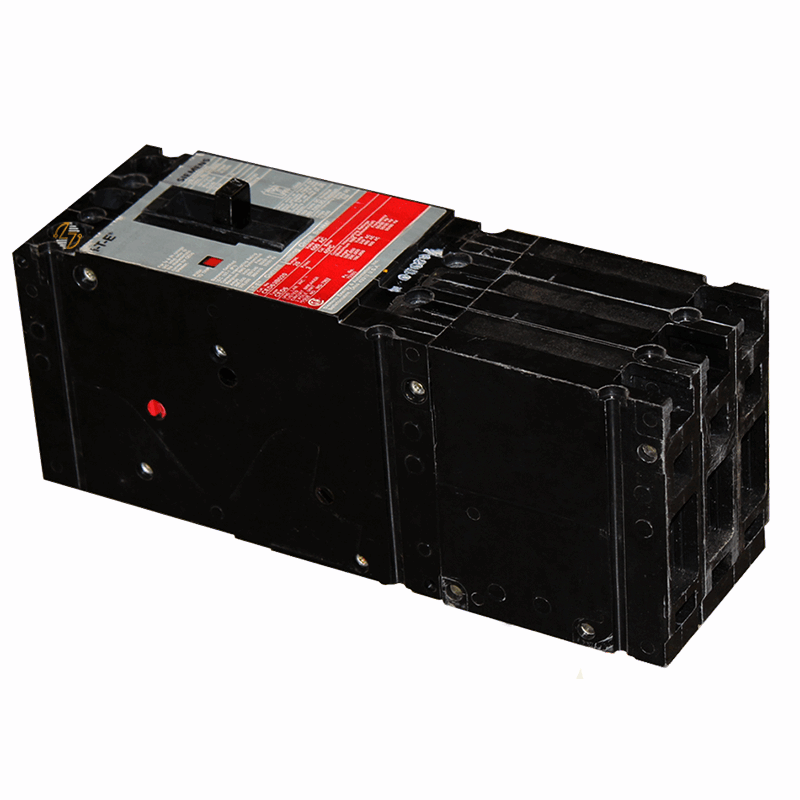

Ensure maximum protection and efficiency in your electrical systems with the Siemens Sentron Series CED63B040 Molded Case Circuit Breaker. This robust breaker is engineered with cutting-edge thermal-magnetic trip units to guarantee reliable performance and enhanced safety. The Sentron CED63B040 is a 3-pole breaker, rated at 40A, and excels with its current limiting capacity that significantly mitigates the risk of system failures and equipment damage.

Key Features and Benefits:

• Enhanced Safety Standards: Certified to meet UL 489 and IEC 60947-2 standards, the CED63B040 ensures compliance with rigorous safety requirements.
• High Performance: Offers exceptional interruption performance with ratings of 100kAIC at 600V and 200kAIC at 480V, providing superior protection against overcurrent incidents.
• Flexible Installation: Comes with load lugs (LN1E100) supporting a wire range of 10 - 1/0 AWG (CU/AL), facilitating easy and versatile installation setups.
• Compact Design: Dimensions of 3 inches in width, 9.58 inches in height, and 3.92 inches in depth allow for efficient use of panel space.

Technical Specifications:

• Frame Type: ED Frame
• Trip Type: Thermal-Magnetic
• Rated Current: 40 Amps
• Poles: 3
• Breaking Capacity: 100kAIC at 600V; 200kAIC at 480V
• Wire Size: 10 to 1/0 AWG (Copper/Aluminum)

Material Compliance and Certifications:

• UL Listed and IEC Certified to ensure quality, reliability, and environmental conscientiousness.

Suitability:

• Ideal for industrial and commercial power distribution systems requiring robust, high-performance circuit protection.
