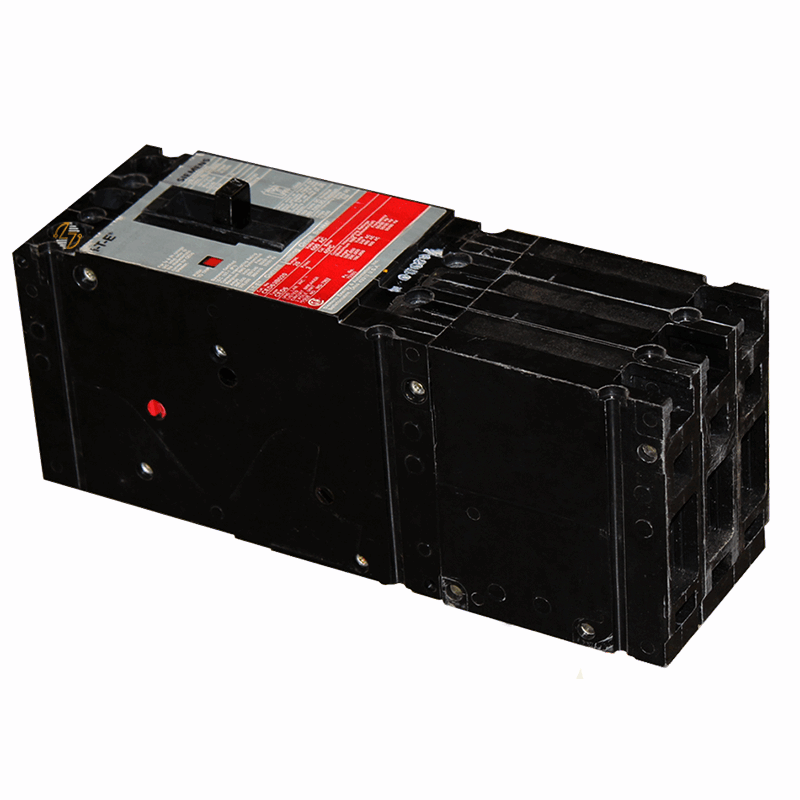

CED63B030L - 30Amp Circuit Breaker

CED63B030L - 30Amp Circuit Breaker

The CED63B030L is a 30 amp, 3-pole CED6 fuseless current limiting molded case circuit breaker used in compatible commercial and industrial electrical equipment. When a breaker needs to be replaced, matching the original specifications is often the first step. This model is intended for applications requiring a 30-amp, 3-pole CED6 breaker with the interrupting ratings and terminal configuration listed below.

The CED63B030L is also HACR rated and approved for operation in ambient temperatures up to 40°C (104°F). You'll often find breakers with these specifications in manufacturing facilities, commercial buildings, schools, healthcare campuses, and HVAC-related installations utilizing compatible CED6 equipment. Built to last, this breaker helps maintain the original ratings and configuration of the equipment it serves.

Key Features and Benefits

• 30 amp current rating
• 3-pole configuration
• CED6 fuseless current limiting molded case circuit breaker
• 200kA interrupting rating at 240VAC
• 200kA interrupting rating at 480VAC
• 100kA interrupting rating at 600VAC
• Includes line-side and load-side terminals
• Suitable for reverse-feed applications
• HACR rated for HVAC equipment applications
• Designed for operation in 40°C ambient environments
• Designed for use in compatible CED6 equipment
• Built to last in properly maintained electrical systems
• Matches the ratings and configuration required for compatible CED6 installations

Technical Specifications

• Part Number: CED63B030L

• Type: CED6

• Amperage: 30 Amps

• Poles: 3

• Breaker Type: Fuseless Current Limiting Molded Case Circuit Breaker

• A.I.C. Rating @ 240VAC: 200kA

• A.I.C. Rating @ 480VAC: 200kA

• A.I.C. Rating @ 600VAC: 100kA

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Line-Side Terminals: Included

• Load-Side Terminals: Included

• Ambient Temperature Rating: 40°C (104°F)

• Approximate Weight: 8.00 lbs
• Height: 9.58 in
• Width: 3.00 in
• Depth: 3.92 in
• Approximate Dimensions: 3.00"W x 9.58"H x 3.92"D

Material Compliance and Certifications

The CED63B030L is HACR rated and manufactured for use in applications requiring a current limiting molded case circuit breaker with the ratings listed above. Installation should comply with applicable electrical codes and equipment requirements. Compatibility with the intended equipment should always be verified before installation.

Where It Works Best

The CED63B030L is frequently used in:

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Institutional and educational campuses
• Utility and infrastructure projects
• HVAC distribution systems
• Motor control centers
• Switchboards and panelboards
• Electrical feeder circuits
• Power distribution equipment requiring a 30 amp, 3-pole current limiting circuit breaker

Common applications include switchboards, panelboards, motor control centers, feeder circuits, HVAC systems, and other electrical distribution systems utilizing compatible CED6 circuit breakers.
