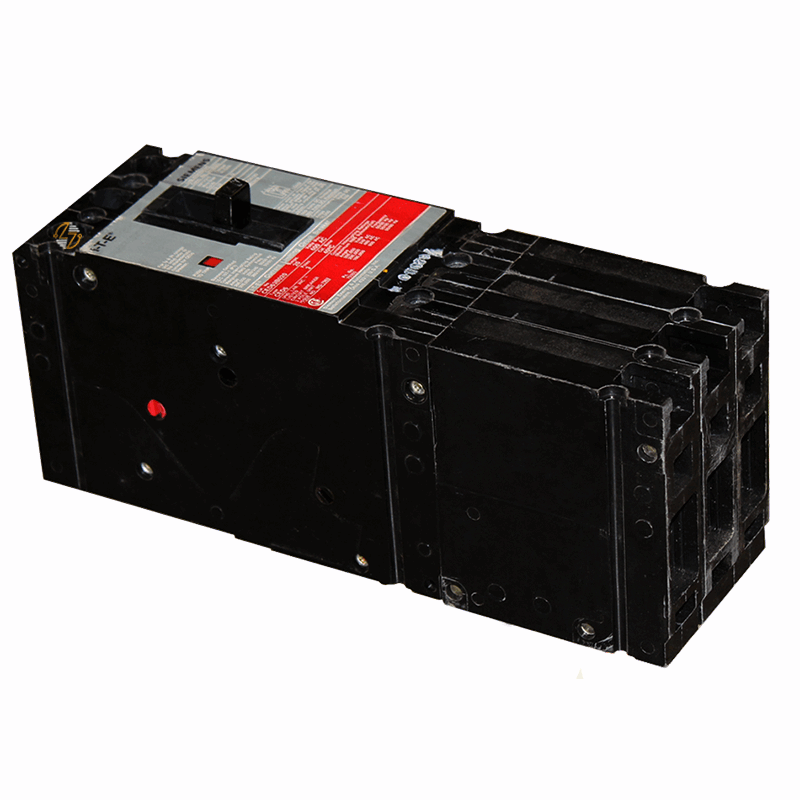

CED63B030 - 30Amp Circuit Breaker

CED63B030 - 30Amp Circuit Breaker

The CED63B030 is a 30 amp, 3-pole CED6 fuseless current limiting molded case circuit breaker used in compatible commercial and industrial electrical equipment. When you're replacing an existing breaker, matching the original ratings and configuration is often the most important part of the job. This model is intended for applications requiring a 30-amp, 3-pole CED6 breaker with the interrupting ratings and mounting style listed below.

The breaker features a bolt-on design, includes load-side terminals, and is suitable for reverse-feed applications when installed according to equipment requirements. With interrupting ratings of 200kA at 240VAC and 480VAC and 100kA at 600VAC, it is commonly used in electrical distribution systems where those ratings are specified.

The CED63B030 is also HACR rated and approved for operation in ambient temperatures up to 40°C (104°F). You'll often find breakers with these specifications in manufacturing facilities, commercial buildings, schools, healthcare campuses, and HVAC-related installations utilizing compatible CED6 equipment. Built to last, this breaker helps maintain the original ratings and configuration of the equipment it serves.

Key Features and Benefits

• 30 amp current rating
• 3-pole configuration
• CED6 fuseless current limiting molded case circuit breaker
• Bolt-on mounting design
• Includes load-side terminals
• Suitable for reverse-feed applications
• HACR rated for HVAC-related applications
• Operates in ambient temperatures up to 40°C (104°F)
• 200kA interrupting rating at 240VAC
• 200kA interrupting rating at 480VAC
• 100kA interrupting rating at 600VAC
• Designed for use in compatible CED6 equipment
• Built to last in properly maintained electrical systems

Technical Specifications

• Part Number: CED63B030

• Type: CED6

• Amperage: 30 Amps

• Poles: 3

• Breaker Style: Fuseless Current Limiting Molded Case Circuit Breaker

• Mounting Type: Bolt-On

• A.I.C. Rating @ 240VAC: 200kA

• A.I.C. Rating @ 480VAC: 200kA

• A.I.C. Rating @ 600VAC: 100kA

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Load-Side Terminals: Included

• Ambient Temperature Rating: 40°C (104°F)

• Approximate Weight: 8.00 lbs

• Dimensions:
  • Width: 3.00"
  • Height: 9.58"
  • Depth: 3.92"

Material Compliance and Certifications

The CED63B030 is HACR rated and manufactured for applications requiring a current limiting molded case circuit breaker with the ratings listed above. Installation should comply with applicable electrical codes and equipment requirements. Compatibility with the intended equipment should always be verified before installation.

Where It Works Best

The CED63B030 is commonly used in commercial buildings, manufacturing facilities, healthcare campuses, educational institutions, utility installations, and industrial power distribution systems. It is frequently applied in switchboards, panelboards, motor control equipment, feeder circuits, HVAC systems, and other electrical distribution equipment where a 30 amp, 3-pole current limiting circuit breaker is specified.
