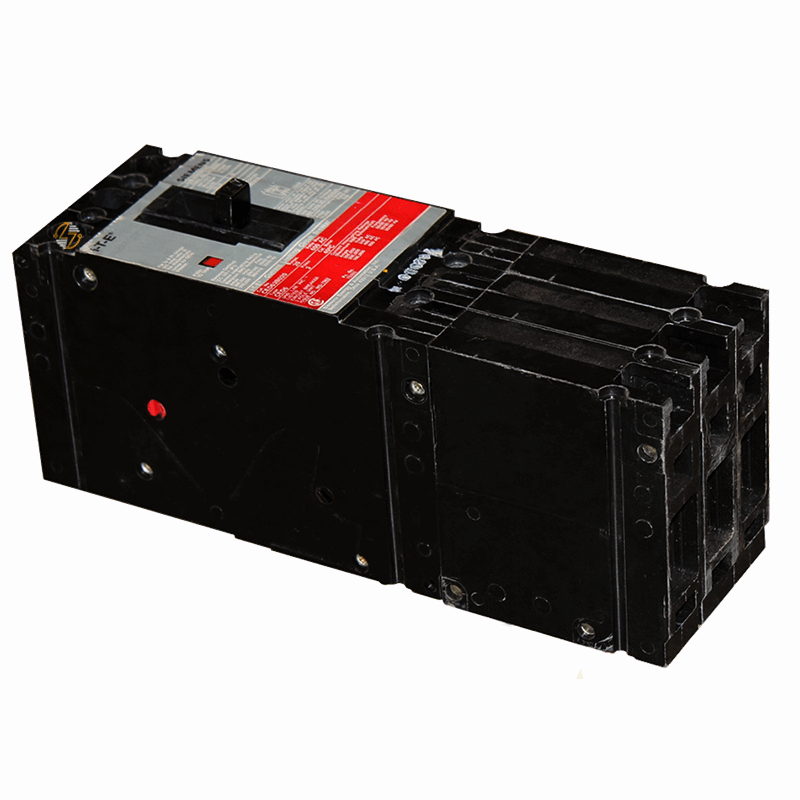

CED63B020L - 20Amp Circuit Breaker

CED63B020L - 20Amp Circuit Breaker

The CED63B020L is a 20 amp, 3-pole CED6 fuseless current limiting molded case circuit breaker used in your compatible commercial and industrial electrical equipment. For many maintenance teams and electricians, the job starts with finding a breaker that matches the original specifications. This model is intended for applications requiring a 20-amp, 3-pole CED6 breaker with the interrupting ratings and terminal configuration listed below.

The breaker includes both line-side and load-side terminals and is suitable for reverse-feed applications when installed according to equipment requirements. With interrupting ratings of 200kA at 240VAC and 480VAC and 100kA at 600VAC, it is used in a variety of electrical distribution systems where those ratings are specified.

The CED63B020L is also HACR rated and approved for operation in ambient temperatures up to 40°C (104°F). You'll often find breakers with these specifications in manufacturing facilities, commercial buildings, schools, healthcare campuses, and HVAC-related installations utilizing compatible CED6 equipment. Built to last, this breaker helps maintain the original ratings and configuration of the equipment it serves.

Key Features and Benefits

• 20 amp current rating
• 3-pole configuration
• CED6 fuseless current limiting molded case circuit breaker
• Includes line-side and load-side terminals
• Suitable for reverse-feed applications
• HACR rated for HVAC-related installations
• Rated for operation in ambient temperatures up to 40°C (104°F)
• 200kA interrupting rating at 240VAC
• 200kA interrupting rating at 480VAC
• 100kA interrupting rating at 600VAC
• Designed for use in compatible CED6 equipment
• Built to last in properly maintained electrical systems

Technical Specifications

• Part Number: CED63B020L

• Amperage: 20 Amps

• Poles: 3

• Type: CED6

• Breaker Style: Fuseless Current Limiting Molded Case Circuit Breaker

• A.I.C. Rating @ 240VAC: 200kA

• A.I.C. Rating @ 480VAC: 200kA

• A.I.C. Rating @ 600VAC: 100kA

• HACR Rated: Yes

• Reverse Feed Suitable: Yes

• Line-Side Terminals: Included

• Load-Side Terminals: Included

• Ambient Temperature Rating: 40°C (104°F)

• Approximate Weight: 8.00 lbs

• Dimensions:
  • Width: 3.00"
  • Height: 9.58"
  • Depth: 3.92"

Material Compliance and Certifications

The CED63B020L is HACR rated and manufactured for applications requiring a fuseless current limiting molded case circuit breaker with the ratings listed above. Installation should comply with applicable electrical codes and equipment requirements. Compatibility with the intended equipment should always be verified before installation.

Where It Works Best

The CED63B020L is commonly found in commercial buildings, manufacturing facilities, schools, healthcare campuses, utility properties, and other locations utilizing compatible CED6 electrical distribution equipment. Common applications include switchboards, panelboards, motor control equipment, HVAC systems, feeder circuits, and other electrical distribution systems utilizing compatible CED6 circuit breakers.
