CED63B015L - 15Amp Circuit Breaker

CED63B015L - 15Amp Circuit Breaker

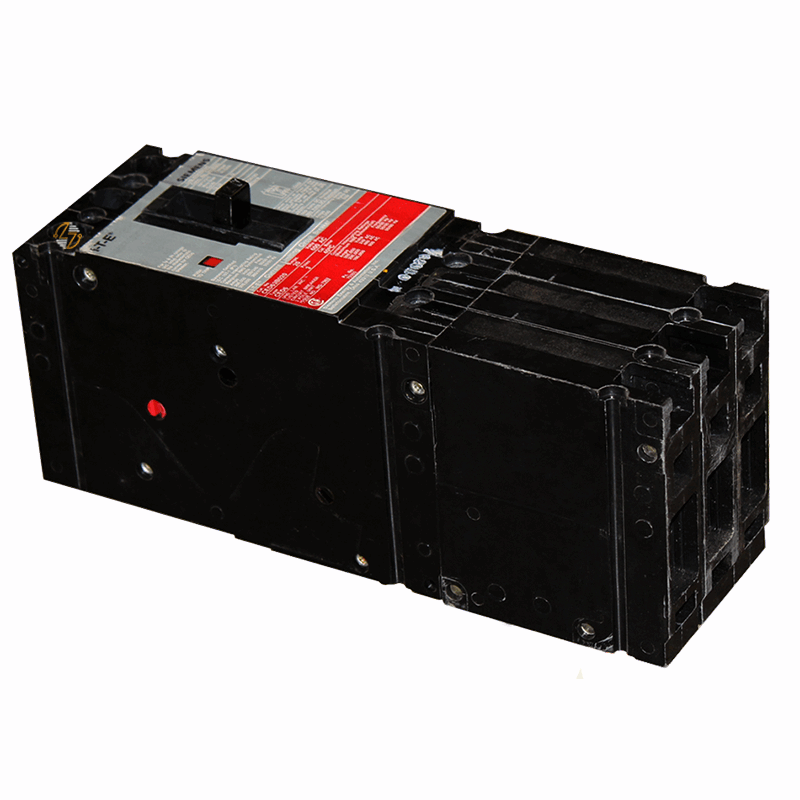

The Siemens Low Voltage Sentron Molded Case Circuit Breaker, model CED63B015L, is an essential safety and control component for modern electrical systems. Engineered with precision, this circuit breaker incorporates a thermal-magnetic trip unit, ensuring reliable protection against overcurrent conditions. The device operates within a standard temperature range of 40å¡C and features an ED frame with exceptional current limiting capabilities, safeguarding electrical circuits by interrupting fault currents efficiently.

Key Features and Benefits:

• High Interruption Capacity: Offers an impressive 100kAIC at 600V and 200kAIC at 480V, providing superior performance in high-demand settings.
• Thermal-Magnetic Protection: Combines thermal properties for overload protection and magnetic operation for short circuit conditions, delivering comprehensive safety.
• Robust Construction: The ED frame design enhances durability and extends the service life of the breaker under challenging conditions.
• Compact Dimensions: With a width of only 3 inches and a depth of 3.92 inches, this circuit breaker is designed to fit neatly into various setups without compromising functionality.

Technical Specifications:

• Poles: 3-pole configuration to accommodate a variety of circuits.
• Amperage: Rated at 15A, suitable for light to medium duty electrical loads.
• Wire Range: Accepts 14 - 10 AWG copper (Cu) and 12 - 10 AWG aluminum (AL) wires, providing flexibility in use and installation.
• Certifications: Meets rigorous UL 489 and IEC 60947-2 standards, ensuring compliance with both national and international safety regulations.

Material Compliance and Certifications:

• This circuit breaker is constructed from high-quality materials that meet industry standards for safety and performance. It is certified under UL 489 and IEC 60947-2, affirming its suitability for a wide range of applications.

Suitability:

• Ideal for commercial and industrial installations, the Siemens Sentron CED63B015L offers a reliable solution for managing electrical loads and protecting against overcurrent conditions. Its compact size and high capacity make it particularly suitable for applications where space is at a premium and safety cannot be compromised.

Whether you are upgrading an existing electrical panel or designing a new installation, the Siemens Low Voltage Sentron Molded Case Circuit Breaker, model CED63B015L, provides a blend of performance, durability, and safety that is unmatched in its class.
