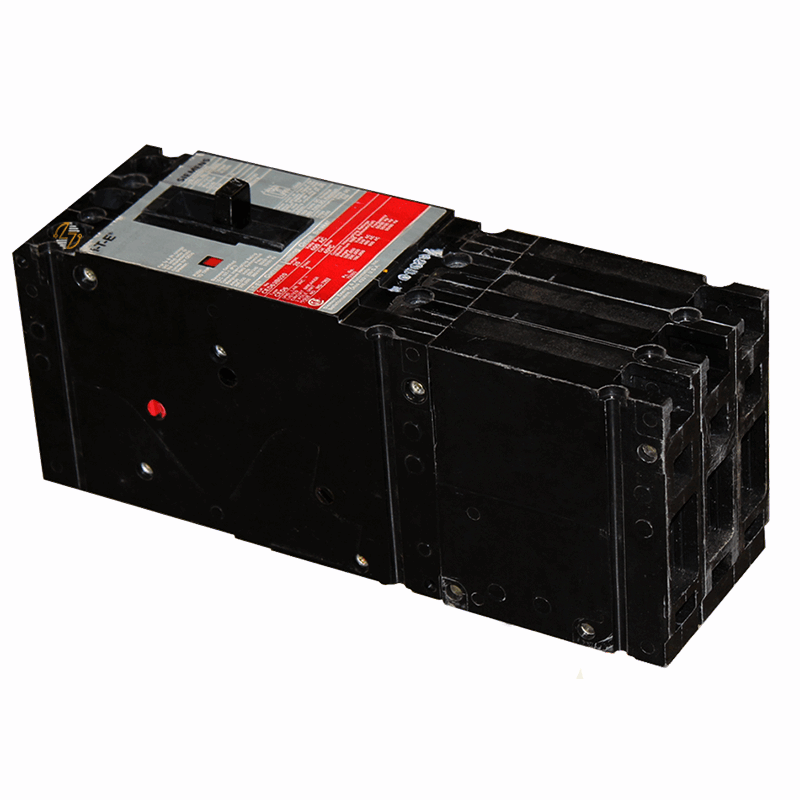

CED63B015 - 15Amp Circuit Breaker

CED63B015 - 15Amp Circuit Breaker

The CED63B015 is a 15 amp, 3-pole CED6 fuseless current limiting molded case circuit breaker designed for use in compatible commercial and industrial electrical distribution systems. When you're replacing an existing breaker, maintaining the original electrical ratings and physical configuration is essential for proper system compatibility. This breaker provides a 15-amp rating, 3-pole design, and the interrupting capacities required for many legacy and existing installations utilizing CED6 equipment.

Built as a bolt-on molded case circuit breaker, the CED63B015 includes load-side terminals and is suitable for reverse-feed applications when installed according to applicable electrical requirements. Its current-limiting design helps protect electrical systems by reducing the effects of fault currents, while its high interrupting ratings support use in demanding commercial and industrial environments. The breaker is also HACR rated and approved for operation in ambient temperatures up to 40°C (104°F). Common applications include distribution equipment, HVAC systems, industrial machinery, commercial facilities, manufacturing operations, and other electrical systems utilizing compatible CED6 circuit breakers. Built to last, the CED63B015 helps maintain the original specifications and functionality of compatible equipment.

Key Features and Benefits

• 15 amp current rating
• 3-pole configuration
• Type CED6 molded case circuit breaker
• Fuseless current limiting design
• Bolt-on mounting configuration
• Includes load-side terminals
• Suitable for reverse-feed applications
• HACR rated
• Rated for operation in ambient temperatures up to 40°C (104°F)
• 200kA interrupting rating at 240VAC
• 200kA interrupting rating at 480VAC
• 100kA interrupting rating at 600VAC
• Designed for use in compatible CED6 electrical equipment
• Helps maintain original system ratings and configuration
• Built to last in properly maintained electrical systems

Technical Specifications

• Part Number: CED63B015

• Type: CED6

• Amperage: 15 Amps

• Poles: 3

• Circuit Breaker Type: Fuseless Current Limiting Molded Case Circuit Breaker

• Mounting Style: Bolt-On

• Load-Side Terminals: Included

• Suitable for Reverse Feed: Yes

• HACR Rated: Yes

• Ambient Temperature Rating: 40°C (104°F)

• A.I.C. Rating:
  • 200kA @ 240VAC
  • 200kA @ 480VAC
  • 100kA @ 600VAC
• Width: 3.00 in.
• Height: 9.58 in.
• Depth: 3.92 in.
• Approximate Dimensions: 3.00"W x 9.58"H x 3.92"D

• Approximate Shipping Weight: 8.00 lbs.


Material Compliance and Certifications

The CED63B015 is HACR rated, making it suitable for use in compatible heating, ventilation, air conditioning, and refrigeration applications. Installation should be performed in accordance with applicable electrical codes, equipment manufacturer requirements, and local regulations. Compatibility with the intended electrical system should always be verified before installation.

Where It Works Best

The CED63B015 is commonly found in commercial buildings, industrial facilities, manufacturing plants, institutional properties, utility-related installations, and HVAC equipment utilizing compatible CED6 electrical distribution systems. Typical applications include branch circuits, feeder circuits, motor-related loads, HVAC and refrigeration equipment, control panels, and other systems requiring a 15-amp, 3-pole CED6 circuit breaker with current-limiting protection characteristics.
