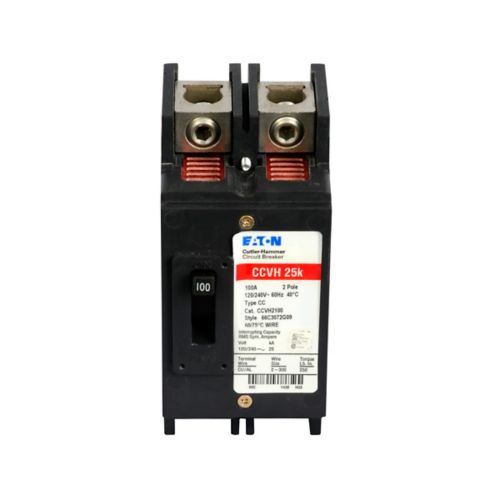

CCVH2100 - 100Amp Circuit Breaker

CCVH2100 - 100Amp Circuit Breaker

The Eaton CCVH2100 is a premium tenant main circuit breaker designed to deliver exceptional protection and reliability for residential and light commercial electrical systems. With a robust current rating of 100A and a high interrupting capacity of 25 kAIC, this two-pole circuit breaker is built to ensure the safety and efficiency of your electrical infrastructure. Operating at 120/240 V, the CCVH2100 is compatible with Type ECC unit enclosures and supports wire sizes ranging from #2/0 AWG to 300 kcmil for both copper and aluminum conductors.

Key Features and Benefits:

• High Interrupting Capacity: The CCVH2100 boasts an impressive interrupting capacity of 25 kAIC, providing robust protection against electrical faults and enhancing system stability and safety.
• Reliable Amperage Rating: With a 100A rating, this circuit breaker is suitable for a wide range of residential and light commercial applications, accommodating various electrical demands.
• Versatile Compatibility: Designed for use with Type ECC unit enclosures and compatible with both copper and aluminum wires, the CCVH2100 offers flexibility in diverse installation scenarios.

Technical Specifications:

• Series: Eaton CCV Tenant Main Circuit Breaker
• Amperage Rating: 100A
• Voltage Rating: 120/240 V
• Interrupt Rating: 25 kAIC
• Poles: Two-pole
• Frame Type: CCV
• Wire Size: #2/0 AWG - 300 kcmil Cu/Al
• Dimensions: 8 in length, 5.5 in height, 4.5 in width
• Weight: 2.83 lb

Material Compliance and Certifications:

• UL 489: Certified to meet the stringent safety standards of Underwriters Laboratories, ensuring reliable performance and safety in electrical installations.
• Standard Lugs: Equipped with standard lugs (wire connectors) suitable for copper or aluminum wire, providing flexibility and ease of installation.

Suitability:

• The Eaton CCVH2100 circuit breaker is the ideal solution for protecting electrical systems in residential and light commercial applications. Its high interrupting capacity and durable construction make it suitable for environments requiring reliable and efficient performance. Whether you're upgrading an existing system or installing a new one, the CCVH2100 delivers the dependability and efficiency needed to ensure continuous power and safety.
