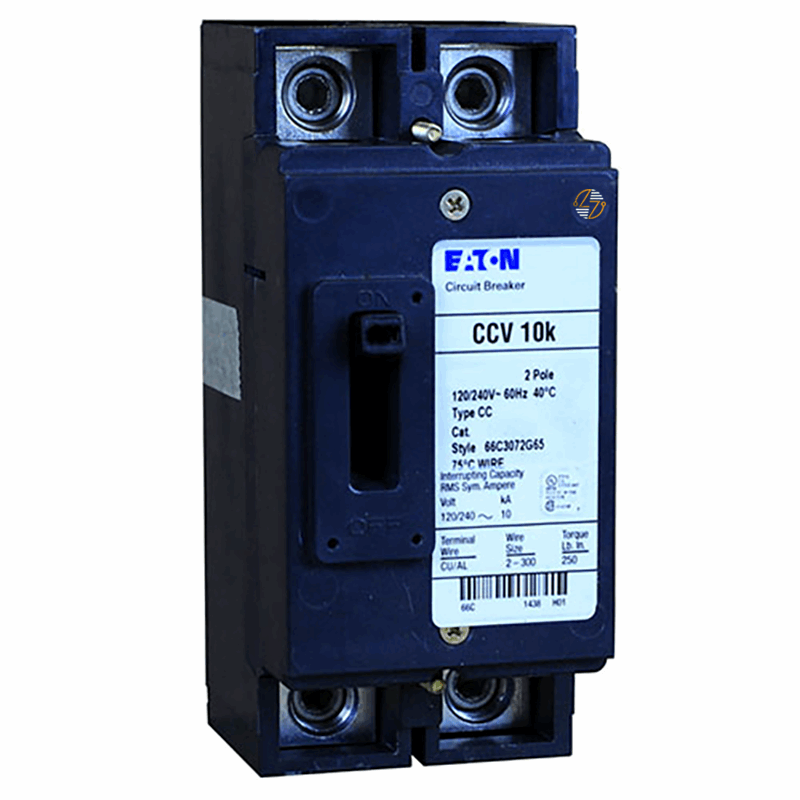

CCV2200 - 200Amp Circuit Breaker

CCV2200 - 200Amp Circuit Breaker

The CCV2200 is a 200 Amp, 2-pole Type CCV molded case circuit breaker designed for use in 240VAC electrical distribution systems. Rated with a 10kA interrupting capacity at 240VAC, this breaker is commonly installed in panelboards, distribution equipment, feeder circuits, and other applications requiring dependable overcurrent protection at higher amperage levels.

Its molded case construction makes it well suited for a variety of commercial, industrial, and institutional electrical installations where reliable circuit protection is essential.

Whether you're using it in a service upgrade, maintenance project, or equipment replacement, the CCV2200 delivers the form, fit, and electrical characteristics expected from a 200 Amp, 2-pole molded case circuit breaker. Its compact footprint allows it to integrate into systems designed for Type CCV breakers while helping protect conductors and connected equipment from overload and short-circuit conditions.

Key Features and Benefits

• 200 Amp current rating
• 2-pole configuration
• 240VAC voltage rating
• 10kA interrupting capacity at 240VAC
• Type CCV molded case circuit breaker
• Designed for form, fit, and functional replacement applications
• Suitable for protecting feeder and distribution circuits
• Compatible with equipment designed for Type CCV breakers
• Molded case construction for long service life
• Commonly used in commercial, industrial, and institutional facilities

Technical Specifications

• Part Number: CCV2200

• Type: CCV

• Amperage Rating: 200 Amps

• Poles: 2

• Voltage Rating: 240VAC

• Interrupting Capacity: 10kA @ 240VAC

• Height: 6.00 in.
• Width: 2.75 in.
• Depth: 3.06 in.
• Approximate Dimensions: 2.75"W × 6.00"H × 3.06"D

• Approximate Shipping Weight: 4.00 lbs


Material Compliance and Certifications

The CCV2200 is intended for use as an overcurrent protective device within electrical distribution systems. Installation should be performed by qualified electrical personnel and in accordance with applicable electrical codes, local regulations, and manufacturer requirements.

Where It Works Best

The CCV2200 is commonly found in commercial buildings, manufacturing facilities, warehouses, educational institutions, healthcare facilities, office complexes, and other properties utilizing 240VAC electrical systems.
