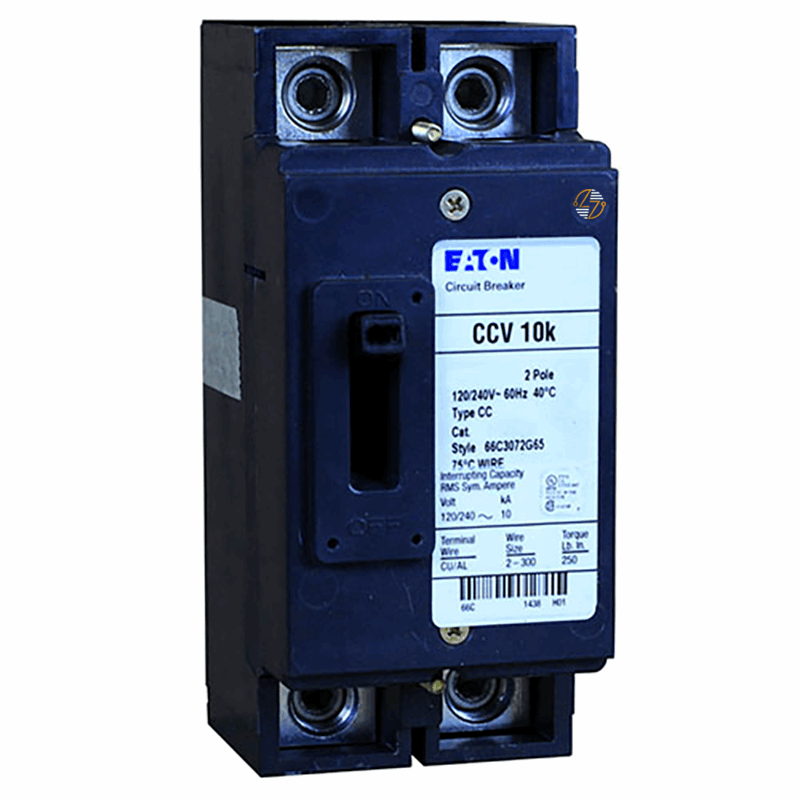

CCV2175 - 175Amp Circuit Breaker

CCV2175 - 175Amp Circuit Breaker

The CCV2175 is a 175 Amp, 2-pole Type CCV molded case circuit breaker rated for you to use on 240VAC electrical systems. With a 10kA interrupting capacity at 240VAC, it is commonly used in panelboards, distribution equipment, feeder circuits, and other applications requiring these electrical ratings.

Its molded case construction makes it suitable for a wide range of electrical distribution applications. Built to last, the CCV2175 continues to be used in maintenance and repair projects where preserving original equipment specifications is important. It provides the form and fit required for installations utilizing a 175 Amp, 2-pole molded case circuit breaker with a 10kA interrupting capacity at 240VAC.

Key Features and Benefits

• 175 Amp current rating
• 2-pole configuration for 240VAC applications
• 10kA interrupting capacity at 240VAC
• Type CCV molded case circuit breaker
• Designed for form, fit, and functional replacement applications
• Compatible with equipment designed for Type CCV breakers
• Molded case construction
• Suitable for commercial, industrial, and institutional electrical systems
• Commonly used for replacement and maintenance applications

Technical Specifications

• Part Number: CCV2175

• Type: CCV

• Amperage Rating: 175 Amps

• Poles: 2

• Voltage Rating: 240VAC

• Interrupting Capacity: 10kA @ 240VAC

• Height: 6.00 in.
• Width: 2.75 in.
• Depth: 3.06 in.
• Approximate Dimensions: 2.75"W × 6.00"H × 3.06"D

• Approximate Shipping Weight: 4.00 lbs


Material Compliance and Certifications

The CCV2175 is intended for use as an overcurrent protective device within electrical distribution systems. Installation should be performed by qualified personnel and in accordance with applicable electrical codes, local regulations, and manufacturer requirements. Compatibility with the intended application should be verified before installation.

Where It Works Best

The CCV2175 is commonly used in commercial buildings, warehouses, manufacturing facilities, schools, healthcare facilities, office buildings, and other properties utilizing 240VAC electrical systems. Typical applications include panelboards, feeder circuits, distribution equipment, HVAC systems, and electrical installations requiring a 175 Amp, 2-pole Type CCV molded case circuit breaker with a 10kA interrupting capacity at 240VAC.
