CCV2125 - 125Amp Circuit Breaker

CCV2125 - 125Amp Circuit Breaker

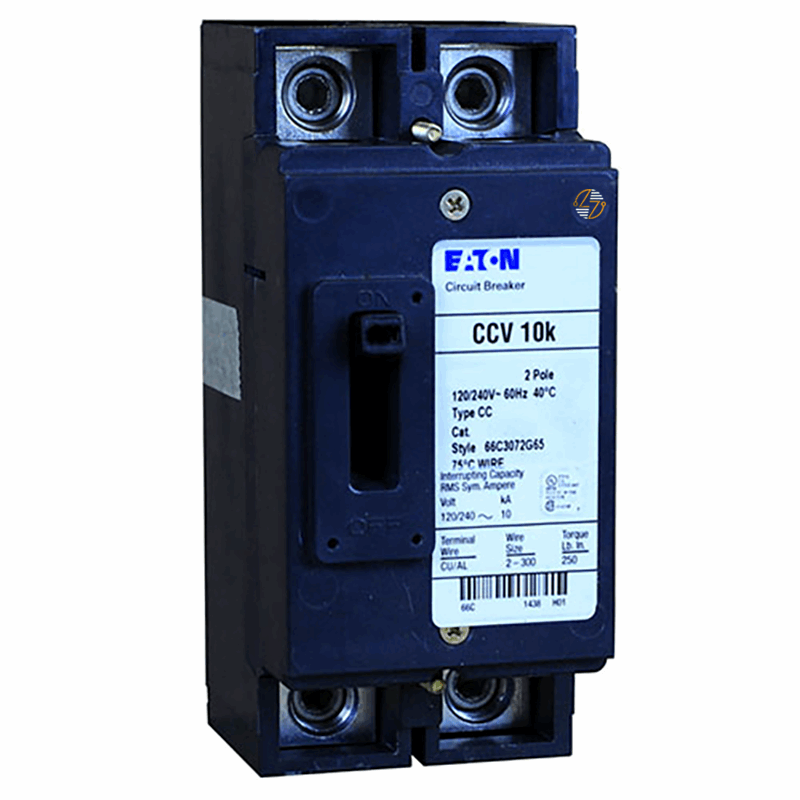

The Eaton CCV2125 is a high-quality tenant main circuit breaker designed to provide reliable protection and performance in residential and light commercial electrical systems. With a current rating of 125A and an interrupting capacity of 10 kAIC, this two-pole circuit breaker is ideal for ensuring the safety and efficiency of your electrical infrastructure.

Key Features and Benefits:

• Reliable Protection: With an interrupting capacity of 10 kAIC, the CCV2125 provides robust protection against electrical faults, minimizing the risk of damage and enhancing safety.
• High Amperage Rating: This circuit breaker supports a current rating of 125A, making it suitable for a wide range of residential and light commercial applications.
• Versatile Compatibility: Designed for use with Type ECC unit enclosures and compatible with both copper and aluminum wires, offering flexibility in various installations.
• Durable Construction: Built to last, the CCV2125 features a robust design that ensures long-term reliability and performance.

Technical Specifications:

• Series: Eaton CCV Tenant Main Circuit Breaker
• Amperage Rating: 125A
• Voltage Rating: 120/240 V
• Interrupt Rating: 10 kAIC
• Poles: Two-pole
• Frame Type: CCV
• Wire Size: #2/0 AWG - 300 kcmil Cu/Al
• Dimensions: 7.7 in length, 5.4 in height, 4.5 in width
• Weight: 2.9 lb

Material Compliance and Certifications:

• UL 489: Certified to meet the stringent safety standards of Underwriters Laboratories, ensuring reliable performance and safety in electrical installations.
• Standard Lugs: Terminals are standard lugs (wire connectors) suitable for copper or aluminum wire, providing flexibility in installation.

Suitability:

• The Eaton CCV2125 circuit breaker is ideal for protecting electrical systems in residential and light commercial applications. Its high interrupting capacity and durable construction make it suitable for environments requiring reliable and efficient performance. Whether you're upgrading an existing system or installing a new one, the CCV2125 delivers the dependability and efficiency needed to ensure continuous power and safety.

Choose the Eaton CCV2125 for a superior tenant main circuit breaker solution that meets international standards and provides outstanding protection for your electrical infrastructure.
