CAH3100X - 100Amp Circuit Breaker

CAH3100X - 100 Amp Circuit Breaker

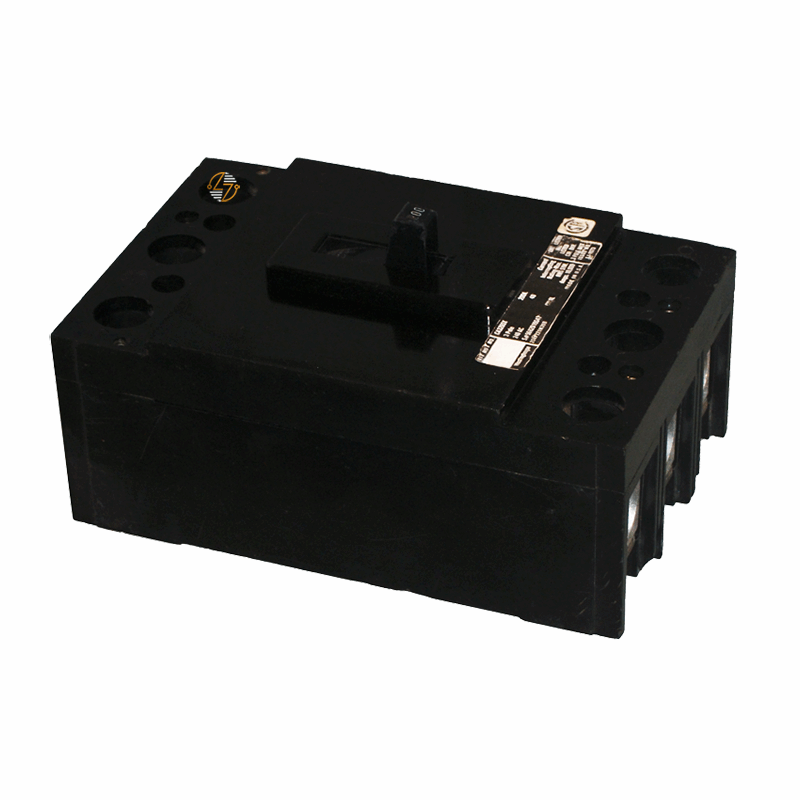

The CAH3100X is a 100 amp, 3 pole molded case circuit breaker built on the CAH frame. It’s designed for use in 240VAC commercial and industrial power distribution systems where a 22kA interrupting rating is required. If you’re replacing an existing CAH frame breaker, this unit is intended to match the original form, fit, and function without modification to compatible equipment. This breaker features a factory-installed, non-interchangeable thermal-magnetic trip unit calibrated at 40°C. That means consistent overcurrent protection based on its fixed 100A rating. Load-side lugs are included, helping simplify installation in panelboards or switchgear designed for CAH frame breakers. With molded case construction and a solid internal mechanism, the CAH3100X is built to last in demanding electrical environments.

Key Features and Benefits

• 100 Amp continuous current rating
• 3 pole configuration for three-phase systems
• 22kA A.I.C. rating at 240VAC
• CAH frame design for proper compatibility
• Non-interchangeable trip unit (40°C calibrated)
• Load-side lugs included
• Designed for long-term use in commercial and industrial settings

Technical Specifications

• Part Number: CAH3100X

• Frame Type: CAH

• Amperage: 100A

• Poles: 3

• Voltage Rating: 240VAC

• Interrupting Capacity: 22kA @ 240VAC

• Trip Unit: Non-Interchangeable, Thermal-Magnetic, 40°C

• Included: Load-Side Lugs

• Shipping Weight: 4.13 lbs

• Shipping Height: 6.5 inches


Material Compliance and Certifications

• Industry Standards: The CAH3100X molded case circuit breaker is manufactured to meet applicable industry standards for molded case circuit breakers.
• UL and NEC Guidelines: It is designed to comply with relevant UL requirements and NEC guidelines when installed within its rated specifications. As always, verify local code requirements before installation.

Where It Works Best

• Commercial facilities with 240V three-phase power
• Industrial buildings requiring 100A feeder or branch protection
• Panelboards and switchgear designed for CAH frame breakers
• Maintenance projects needing a direct CAH frame replacement
