CAH2225Y - 225Amp Circuit Breaker

CAH2225Y - 225 Amp Circuit Breaker

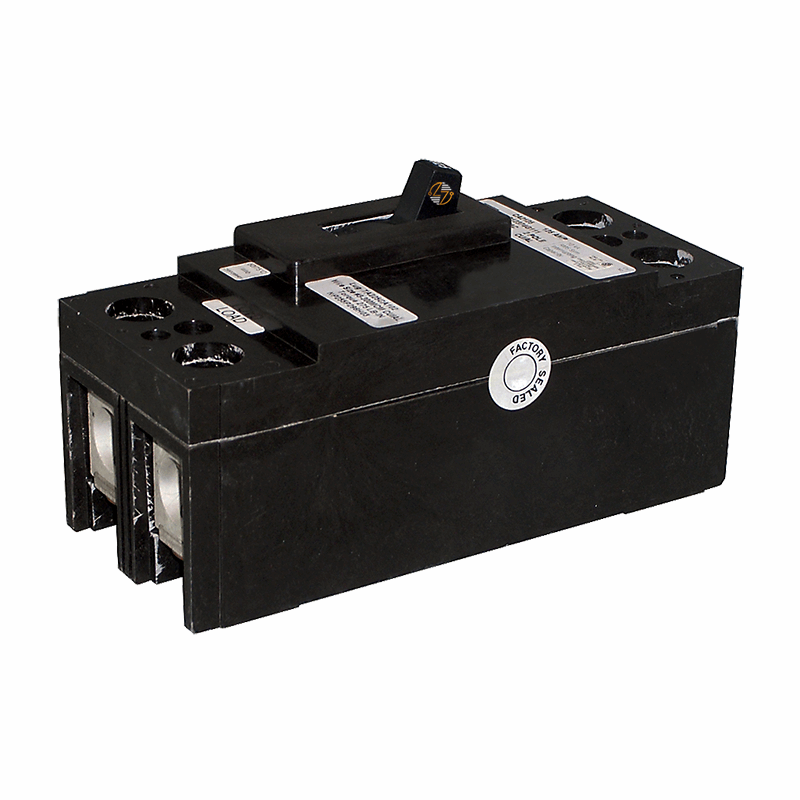

The CAH2225Y molded case circuit breaker is a 225 amp, 2-pole breaker designed to provide dependable overcurrent protection in 120/240VAC electrical distribution systems. Built on the CAH frame platform, this unit features a non-interchangeable trip unit calibrated for consistent thermal-magnetic protection at 40°C. With a 22kA A.I.C. rating at 120/240VAC, the CAH2225Y is well-suited for commercial and industrial panelboards, switchboards, and distribution equipment where reliable interruption capacity is essential. It includes factory-installed line-side lugs for secure conductor termination, helping streamline installation and ensuring proper fit within compatible legacy systems. Constructed as a molded case circuit breaker, it is built to last and engineered to meet the practical demands of everyday electrical protection.

Whether you’re maintaining existing infrastructure or replacing a breaker with matching frame and ratings, the CAH2225Y provides the correct form, fit, and function required for compatible CAH frame applications.

Key Features and Benefits

• 225 Amp Continuous Rating – Designed to handle substantial electrical loads in commercial and industrial settings.
• 2-Pole Configuration – Provides protection for two-phase circuits in 120/240VAC systems.
• 22kA A.I.C. @ 120/240VAC – Interrupting capacity suitable for systems where higher fault current protection is required.
• CAH Frame Type – Ensures proper compatibility with equipment designed for CAH-series molded case breakers.
• Non-Interchangeable Trip Unit – Factory-calibrated trip mechanism for consistent overcurrent protection at 40°C ambient temperature.
• Includes Line-Side Lugs – Simplifies installation and supports secure conductor connections.
• Molded Case Construction – Designed for durability and long service life in demanding electrical environments.

Technical Specifications

• Part Number: CAH2225Y
• Amperage: 225A
• Poles: 2
• Voltage Rating: 120/240VAC
• Interrupting Rating (A.I.C.): 22kA @ 120/240VAC
• Frame Type: CAH
• Trip Unit: Non-Interchangeable Thermal-Magnetic
• Ambient Rating: 40°C
• Line Termination: Line-Side Lugs Included
• Approximate Shipping Weight: 2.75 lbs
• Height: 6.5 inches

Material Compliance and Certifications

• Industry Standards: The CAH2225Y molded case circuit breaker is manufactured and tested to meet applicable industry standards for molded case circuit breakers in 120/240VAC systems.
• NEC Compliance: Designed for installation in properly rated electrical equipment, it supports compliance with NEC requirements when applied according to its listed ratings and manufacturer specifications. Always verify system compatibility and installation requirements with local codes and qualified personnel.

Where It Works Best

• The CAH2225Y is commonly used in:
• Commercial buildings with 120/240VAC distribution systems
• Industrial facilities requiring 225 amp branch or feeder protection
• Electrical panelboards and switchboards designed for CAH frame breakers
• Maintenance and replacement projects in existing compatible equipment
