CAH2100X - 100Amp Circuit Breaker

CAH2100X - 100Amp Circuit Breaker

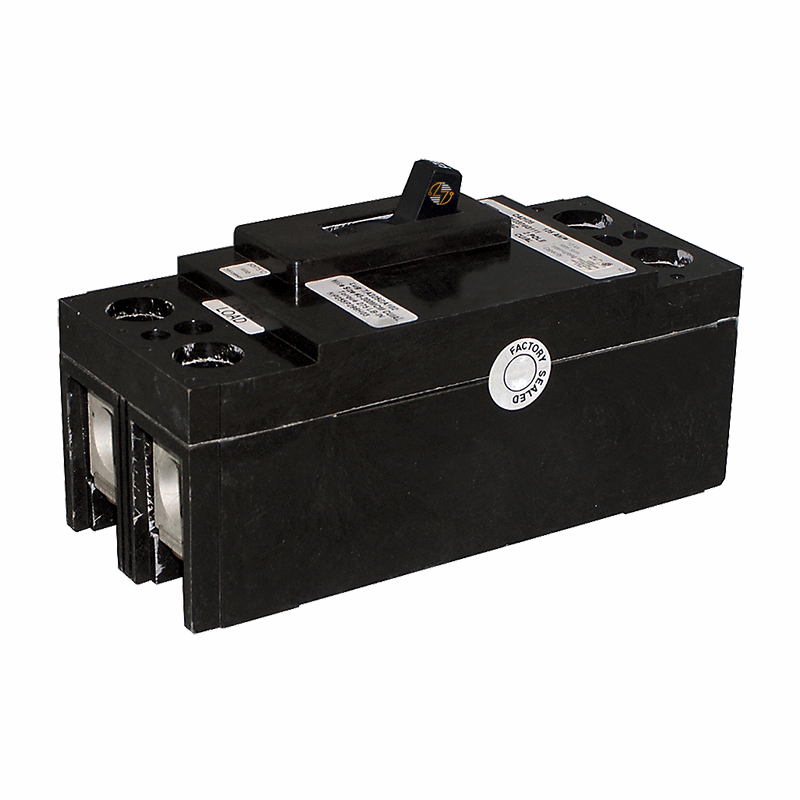

When a circuit breaker needs to be replaced, matching the original specifications is critical. The CAH2100X is a 100 Amp, 2-pole molded case circuit breaker designed for applications that require a Type CAH breaker with a 22kA interrupting rating at 120/240VAC. Whether you're maintaining a commercial facility, servicing industrial equipment, or replacing an existing breaker in a power distribution system, this unit provides the ratings and configuration needed for compatible installations.

Built with a non-interchangeable trip unit and supplied with load-side lugs, the CAH2100X is intended for use in electrical systems where dependable circuit protection and proper fit are essential.

Because many electrical systems remain in service for decades, replacement components need to match both the electrical and physical requirements of the original installation. The CAH2100X was built with that purpose in mind, offering the form, fit, and function required for compatible CAH breaker applications. Like many molded case circuit breakers used throughout commercial and industrial facilities, it is built to last and designed for long-term service in demanding environments.

Key Features and Benefits

• 100 Amp current rating for branch and feeder circuit protection
• 2-pole configuration for 120/240VAC applications
• Type CAH molded case circuit breaker
• 22kA interrupting capacity at 120/240VAC
• Non-interchangeable trip unit
• Includes load-side lugs for installation convenience
• Compact design for compatible electrical equipment
• Suitable for maintenance, repair, and replacement projects
• Rated for operation in ambient temperatures up to 40°C (104°F)
• Built to last in commercial and industrial electrical systems


Technical Specifications

• Part Number: CAH2100X

• Type: CAH

• Amperage Rating: 100 Amps

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Capacity (A.I.C.): 22kA @ 120/240VAC

• Trip Unit: Non-Interchangeable

• Lugs: Includes Load-Side Lugs

• Temperature Rating: 40°C (104°F)

• Dimensions:
  • Width: 2.75 in.
  • Height: 6.50 in.
  • Depth: 2.69 in.
• Dimensions: 2.75"W × 6.50"L × 2.69"D

• Approximate Shipping Weight: 4.50 lbs.


Material Compliance and Certifications

The CAH2100X is designed for electrical distribution and circuit protection applications. Installation should be performed by qualified personnel and in accordance with applicable electrical codes, industry standards, and equipment manufacturer requirements. Users should verify compatibility with their specific system prior to installation.

Where It Works Best

• The CAH2100X is commonly found in commercial buildings, manufacturing facilities, warehouses, healthcare campuses, schools, municipal properties, and other locations that rely on established electrical distribution equipment. It is particularly useful when replacing an existing 100 Amp 2-pole CAH circuit breaker and maintaining the original system design.
• Typical applications include panelboards, switchboards, feeder circuits, distribution equipment, and other electrical systems requiring a 100 Amp molded case circuit breaker with a 22kA rating at 120/240VAC.
