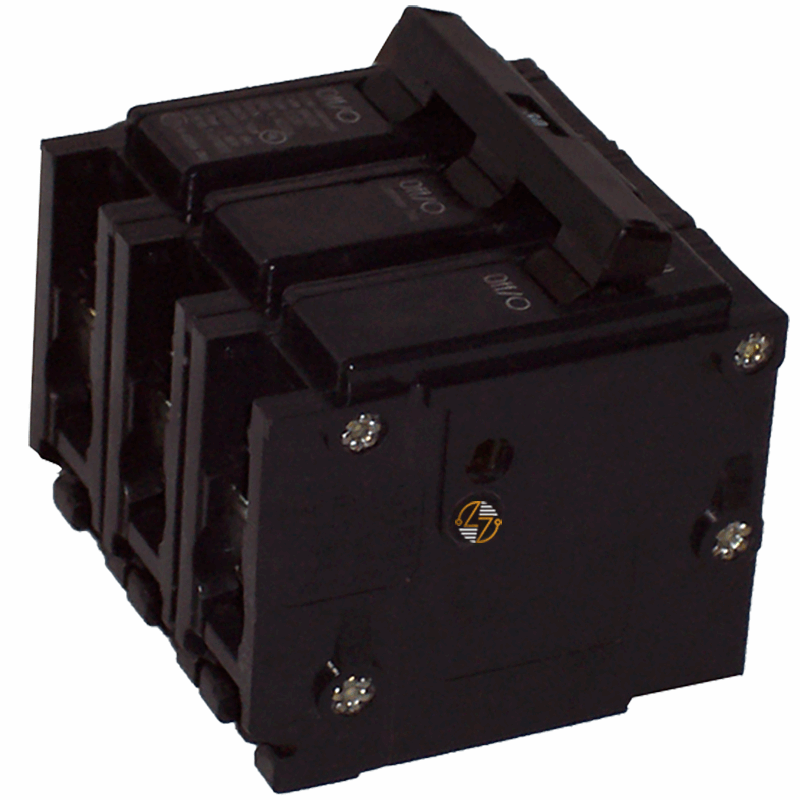

C360 - 60Amp Circuit Breaker

C360 - 60Amp Circuit Breaker

The C360 is a 60 Amp, 3-pole circuit breaker designed for use in 240VAC three-phase electrical systems. It provides overcurrent protection for your branch circuits and features a common trip mechanism that opens all three poles simultaneously when a fault occurs. This design is commonly used on three-phase equipment where all phases must disconnect together to protect the circuit and connected equipment.

Its plug-on construction allows the breaker to install into compatible panelboards without changing the existing panel layout. A 60 Amp, 3-pole breaker is often found on HVAC equipment, pumps, compressors, refrigeration systems, air handling units, and other three-phase electrical loads used in commercial and industrial facilities.

The C360 carries a 10kA interrupting rating at 240VAC and is HACR rated for approved heating, air conditioning, and refrigeration applications. Breakers in this rating range are frequently used during panel maintenance, equipment replacement, and electrical upgrades where matching the existing breaker type and electrical specifications is important. Selecting the proper amperage, pole count, voltage rating, and mounting style helps you maintain compatibility with the system already in place.

Key Features and Benefits

• 60 Amp circuit breaker
• Three-pole configuration
• Common trip operation
• Plug-on mounting style
• Type C breaker
• 10kA interrupting capacity at 240VAC
• HACR rated
• Designed for branch circuit protection
• Commonly used in three-phase electrical systems


Technical Specifications

• Part Number: C360

• Type: C

• Amperage Rating: 60 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupting Capacity: 10kA @ 240VAC

• Trip Type: Common Trip

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Width: 3.00 in.
  • Height: 2.88 in.
  • Depth: 2.56 in.
• Dimensions: 3.00"W x 2.88"H x 2.56"D

• Approximate Shipping Weight: 1.50 lbs.


Material Compliance and Certifications

• HACR Rated
• Intended for use in compatible electrical distribution equipment
• Install according to applicable electrical codes and manufacturer requirements


Where It Works Best

• The C360 is commonly used in commercial buildings, warehouses, manufacturing facilities, schools, workshops, and other locations that utilize three-phase power. Typical applications include HVAC systems, refrigeration equipment, pumps, compressors, air handling equipment, motor circuits, control panels, and dedicated branch circuits requiring a 60 Amp, 3-pole breaker. It is also frequently used during maintenance and replacement projects where matching existing equipment specifications is important.
