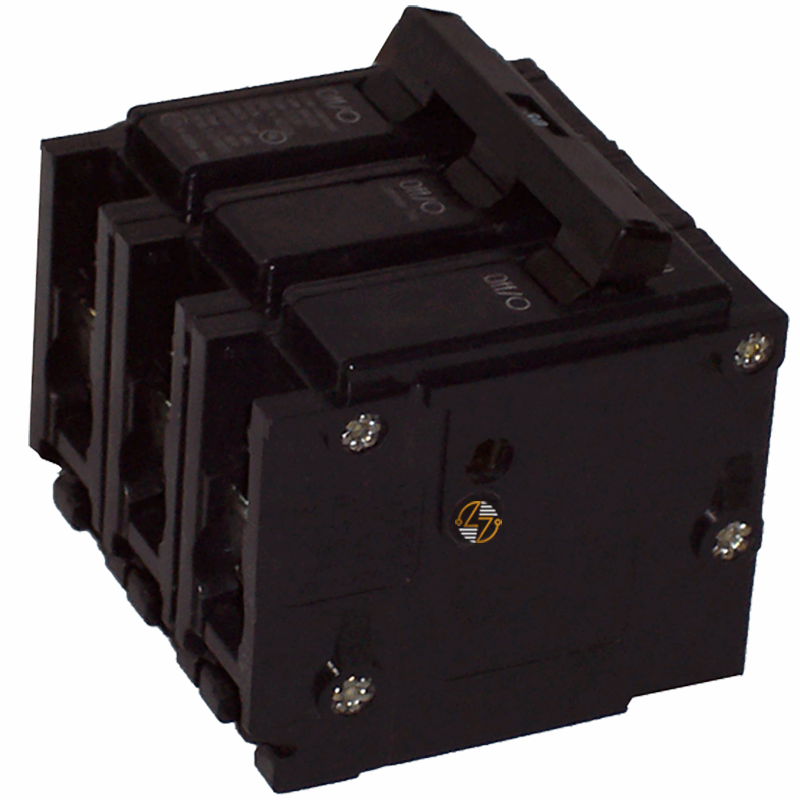

C325 - 25Amp Circuit Breaker

C325 - 25Amp Circuit Breaker

When dependable circuit protection matters, the C325 25 amp 3 pole circuit breaker delivers the performance needed to keep electrical systems operating safely and efficiently. Designed for three-phase applications, this plug-on breaker helps protect circuits and connected equipment from overloads and short circuits while providing the convenience of straightforward installation in compatible panelboards.

The common trip design is especially important in multi-phase systems, ensuring that all three poles disconnect simultaneously whenever a fault occurs. This added layer of protection helps reduce the risk of equipment damage and supports safer operation across a variety of commercial and industrial environments. With a 10kA interrupting rating at 240VAC, the C325 is well-suited for protecting HVAC equipment, motor loads, distribution systems, and other demanding electrical applications.

Its HACR rating makes it a practical choice for heating, air conditioning, and refrigeration equipment, while the compact footprint allows it to fit comfortably in space-conscious electrical panels. Whether you're maintaining an existing system, replacing a breaker, or supporting a new installation, the C325 offers the reliable overcurrent protection professionals expect from a quality circuit breaker.

Key Features and Benefits

• Provides reliable overload and short-circuit protection
• 25 amp rating ideal for a variety of commercial and industrial branch circuits
• 3 pole configuration designed for three-phase electrical systems
• Common trip mechanism disconnects all poles simultaneously during fault conditions
• Plug-on mounting design helps simplify installation and replacement
• 10kA interrupting capacity at 240VAC for dependable fault protection
• HACR rated for heating, air conditioning, and refrigeration applications
• Compact design helps maximize available panel space
• Suitable for protecting motors, HVAC equipment, and power distribution circuits


Technical Specifications

• Part Number: C325

• Type: C

• Amperage: 25 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupting Capacity: 10kA

• Trip Type: Common Trip

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Width: 3.00 in.
  • Height: 2.88 in.
  • Depth: 2.56 in.
• Dimensions: 3.00" W x 2.88" H x 2.56" D

• Approximate Shipping Weight: 1.50 lbs.


Material Compliance and Certifications

• HACR Rated
• Designed for installation in compatible electrical distribution equipment
• Intended for use in accordance with applicable electrical codes and manufacturer specifications


Where It Works Best

• The C325 is a strong fit for commercial buildings, industrial facilities, manufacturing environments, mechanical rooms, and other locations that rely on three-phase power distribution. It is commonly used to protect HVAC systems, motor-driven equipment, branch circuits, control panels, and other electrical loads that require a 25 amp, 3 pole circuit breaker with common trip protection.
