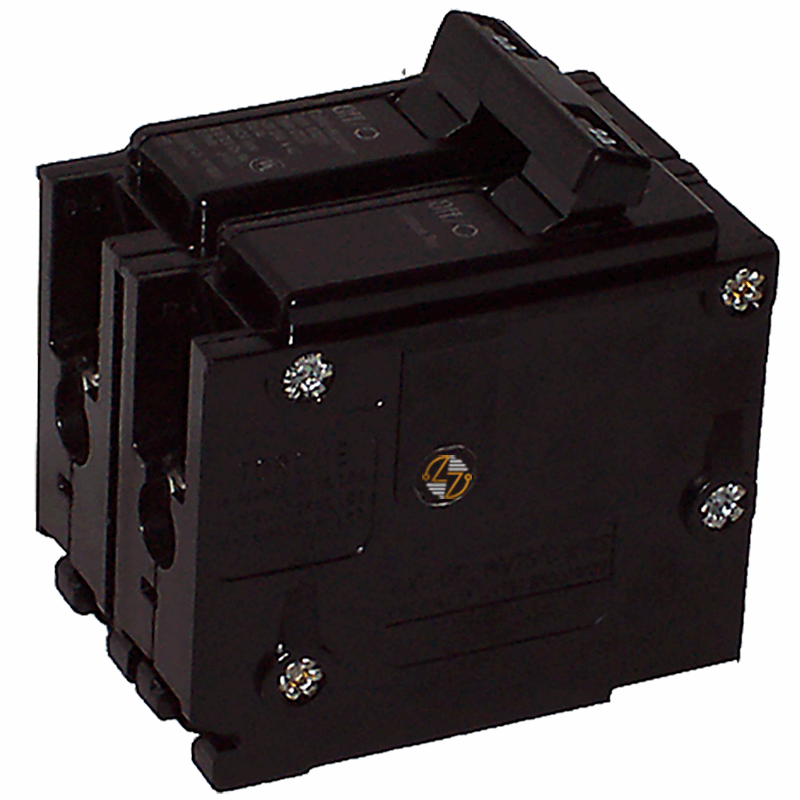

C290 - 90Amp Circuit Breaker

C290 - 90Amp Circuit Breaker

The C290 is a 90 Amp, 2-pole circuit breaker used in 120/240VAC electrical systems that require higher-capacity branch circuit protection. It features a common trip design, meaning both poles disconnect together if an overload or short circuit occurs. This type of breaker is commonly used on circuits where simultaneous disconnecting is required and maintaining compatibility with the existing panel is important.

The plug-on design allows the breaker to install into compatible load centers without altering the panel layout. With its 90 Amp rating, the C290 is often found protecting larger electrical loads such as HVAC equipment, electric furnaces, heat pumps, water heaters, subpanels, and other dedicated circuits that require a higher level of overcurrent protection.

Whether you're replacing an existing breaker during service work or maintaining an electrical distribution system, selecting the correct breaker type, amp rating, and pole configuration helps ensure proper fit and operation.

Key Features and Benefits

• 90 Amp circuit breaker
• Two-pole configuration
• Common trip operation
• Type C breaker design
• Plug-on mounting style
• 10kA interrupting capacity at 120/240VAC
• HACR rated
• Designed for overload and short-circuit protection
• Suitable for replacement, maintenance, and panel upgrade applications


Technical Specifications

• Part Number: C290

• Type: C

• Amperage Rating: 90 Amps

• Number of Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Capacity: 10kA @ 120/240VAC

• Trip Type: Common Trip

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 2.88 in.
  • Depth: 2.56 in.
• Approximate Shipping Weight: 1.25 lbs.


Material Compliance and Certifications

• HACR Rated
• Intended for installation in compatible electrical distribution equipment
• Install according to applicable electrical codes and manufacturer requirements


Where It Works Best

• The C290 is commonly installed in homes, apartment buildings, office spaces, retail facilities, workshops, and light industrial environments. Typical applications include air conditioning equipment, refrigeration systems, electric furnaces, heat pumps, water heaters, subpanels, and other dedicated branch circuits requiring a 90 Amp, 2-pole breaker.
